GD3162 Half-Bridge Evaluation Kit

FRDMGD3162HBIEVM

Roll over image to zoom in

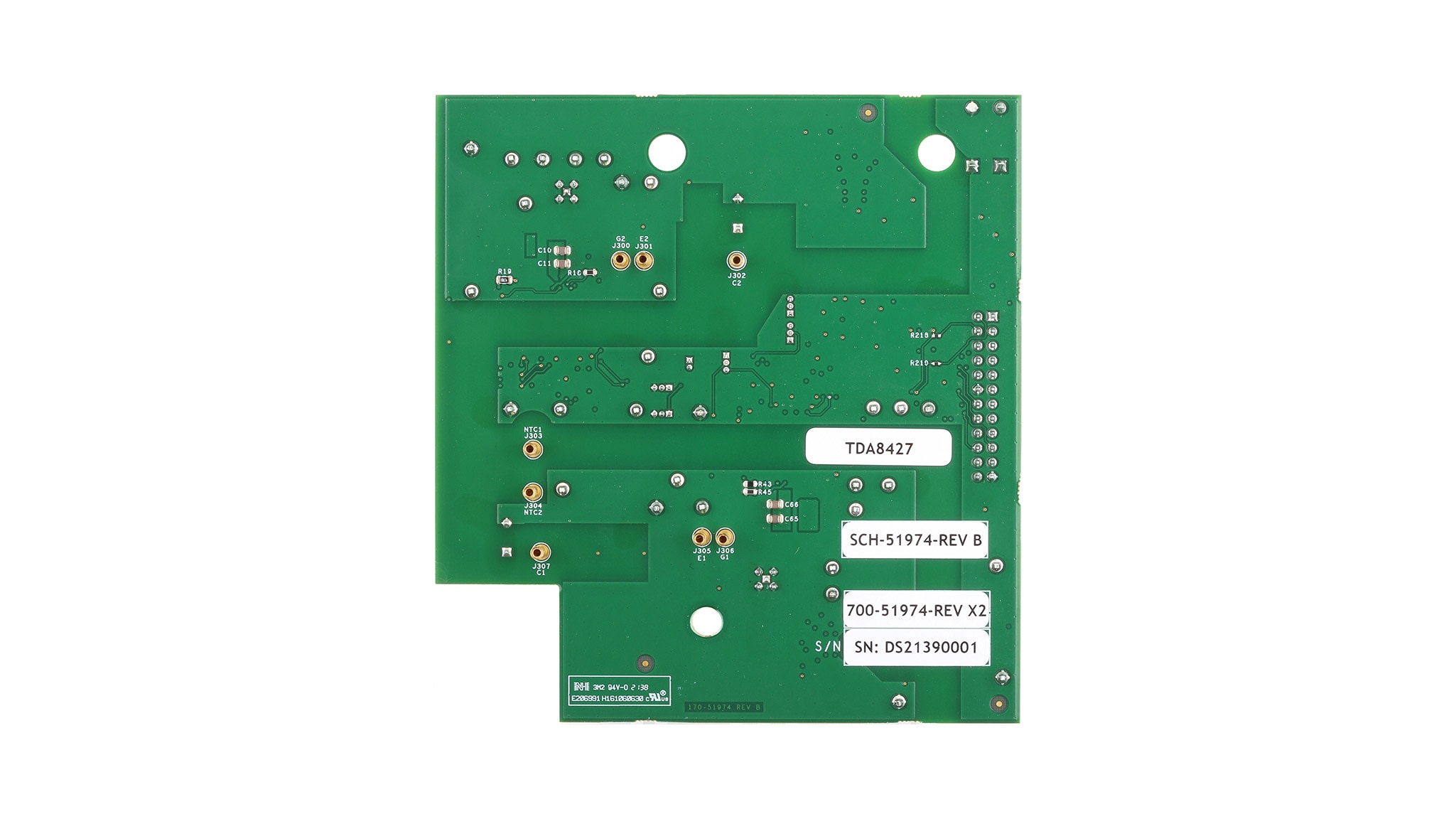

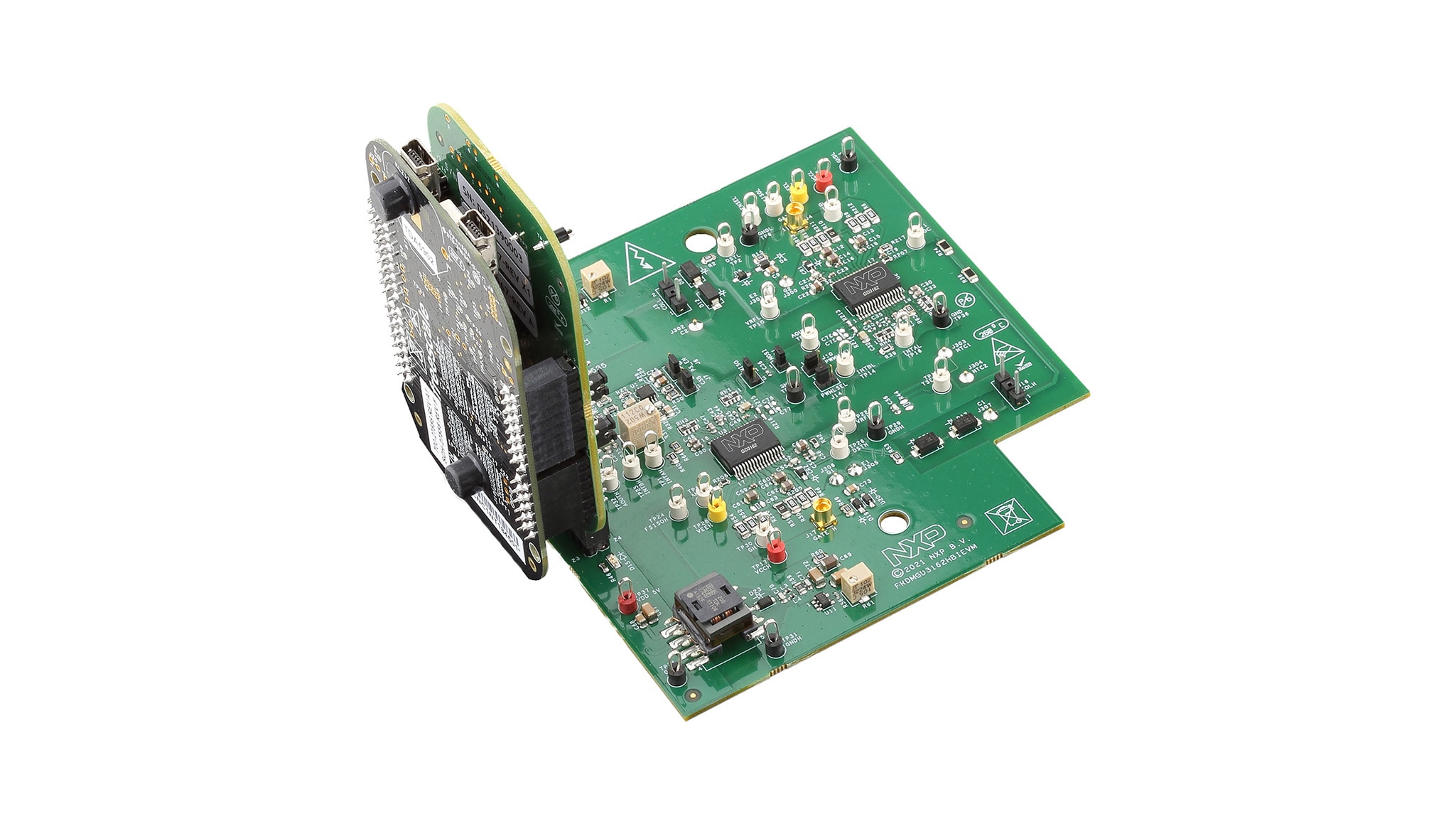

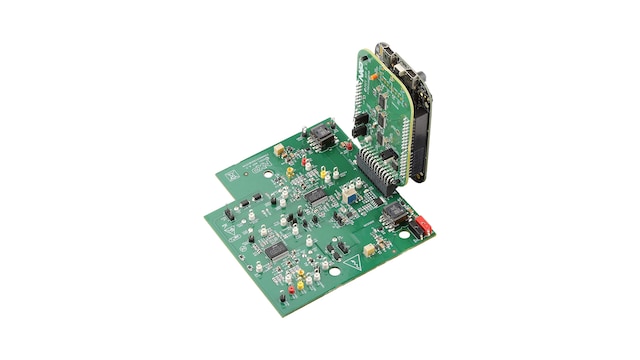

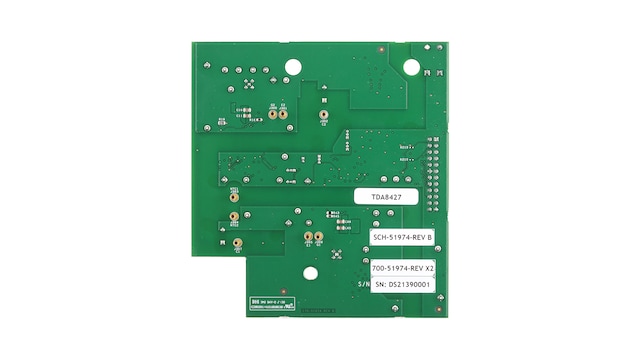

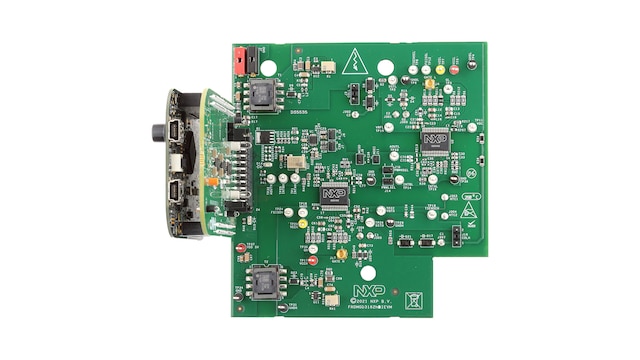

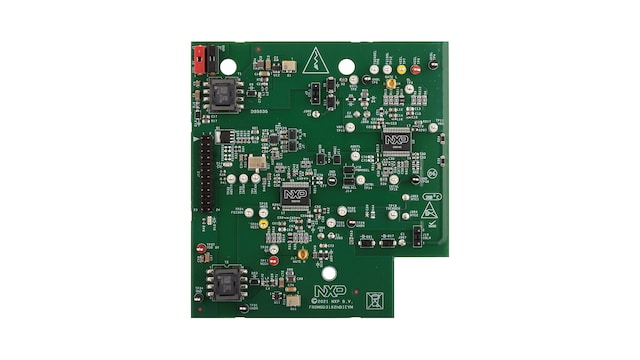

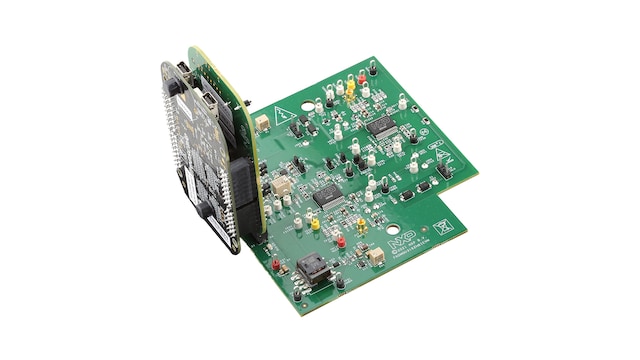

FRDMGD3162HBIEVM is a half-bridge evaluation kit populated with two GD3162 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3162 gate drive devices in either daisy chain or standalone configuration.

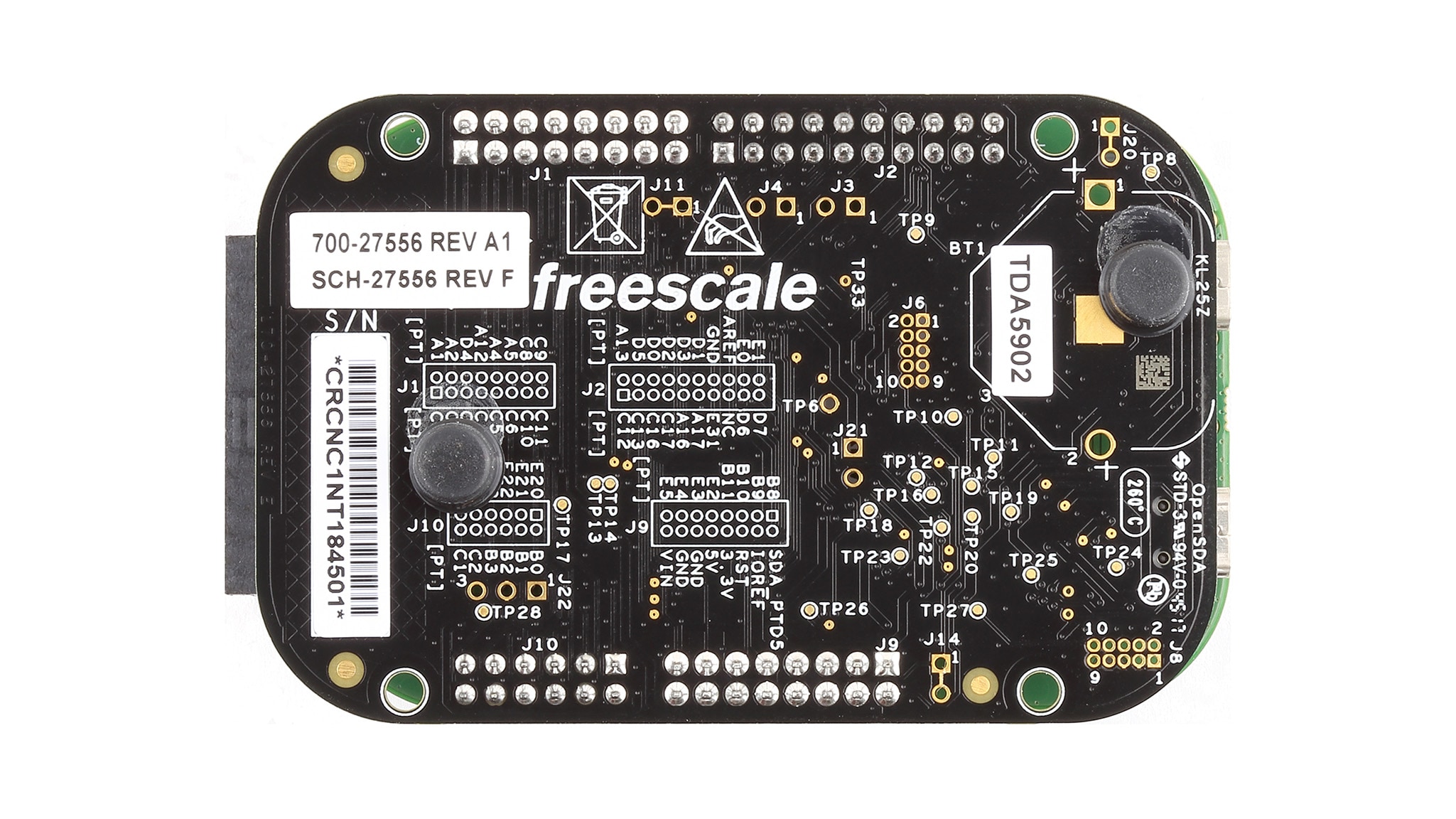

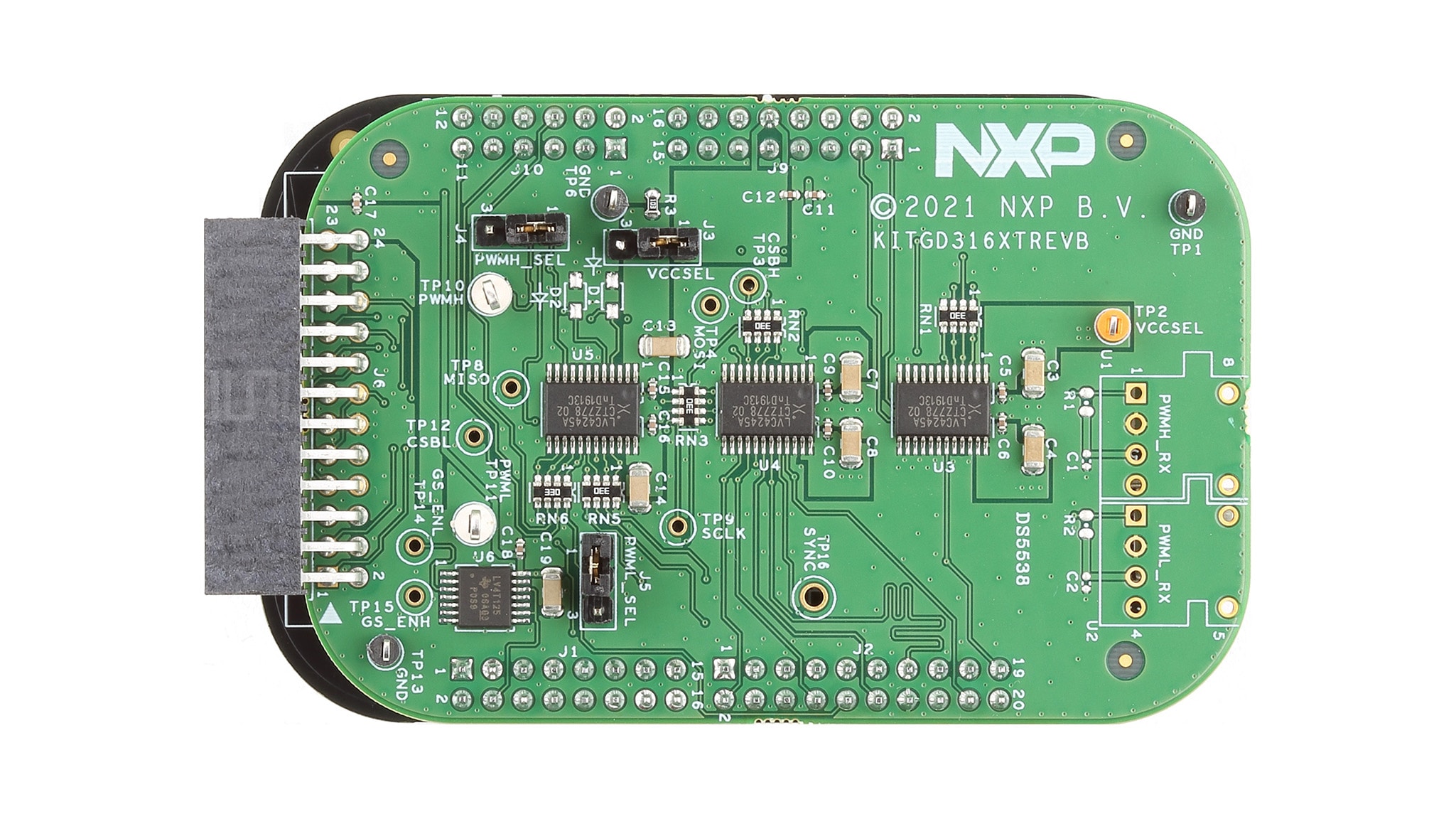

The KITGD316xTREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3162 gate drivers. The evaluation kit is designed to connect to an HP Drive power module for half-bridge evaluations and applications development.

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3162: Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control

Features

System Features

  • Compatible with HP drive form factor power modules
  • Flex GUI graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double pulse and short circuit evaluations
  • Fiber optic connections option for external PWM inputs
  • User guide available

Buy Options

FRDMGD3162HBIEVM-Image

Click to expand

  • FRDMGD3162HBIEVM
    Active

  • GD3162 Half-Bridge Evaluation Kit.

  • The FRDMGD3162HBIEVM is only available for purchase for approved customers.
    Each order will be reviewed prior to being fulfilled.
    We apologize for any experienced inconvenience as a result of this approval process.

    Kit contains

    • Assembled and tested FRDMGD3162HBIEVM board in an anti-static bag
    • 3.3 V to 5.0 V translator board (KITGD316XTREVB) connected to FRDM-KL25Z
    • USB cable, type A male/type mini B male, 3 ft
    • Quick Start Guide

    Note: An NDA is required in order to access the FRDMGD3162HBIEVM documentation.

  • $317.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
