3 Phase Inverter Reference Design Using the GD3162 Gate Drive Devices with Mitsubishi® SiC Power Module

RDGD3162MITEVM

Roll over image to zoom in

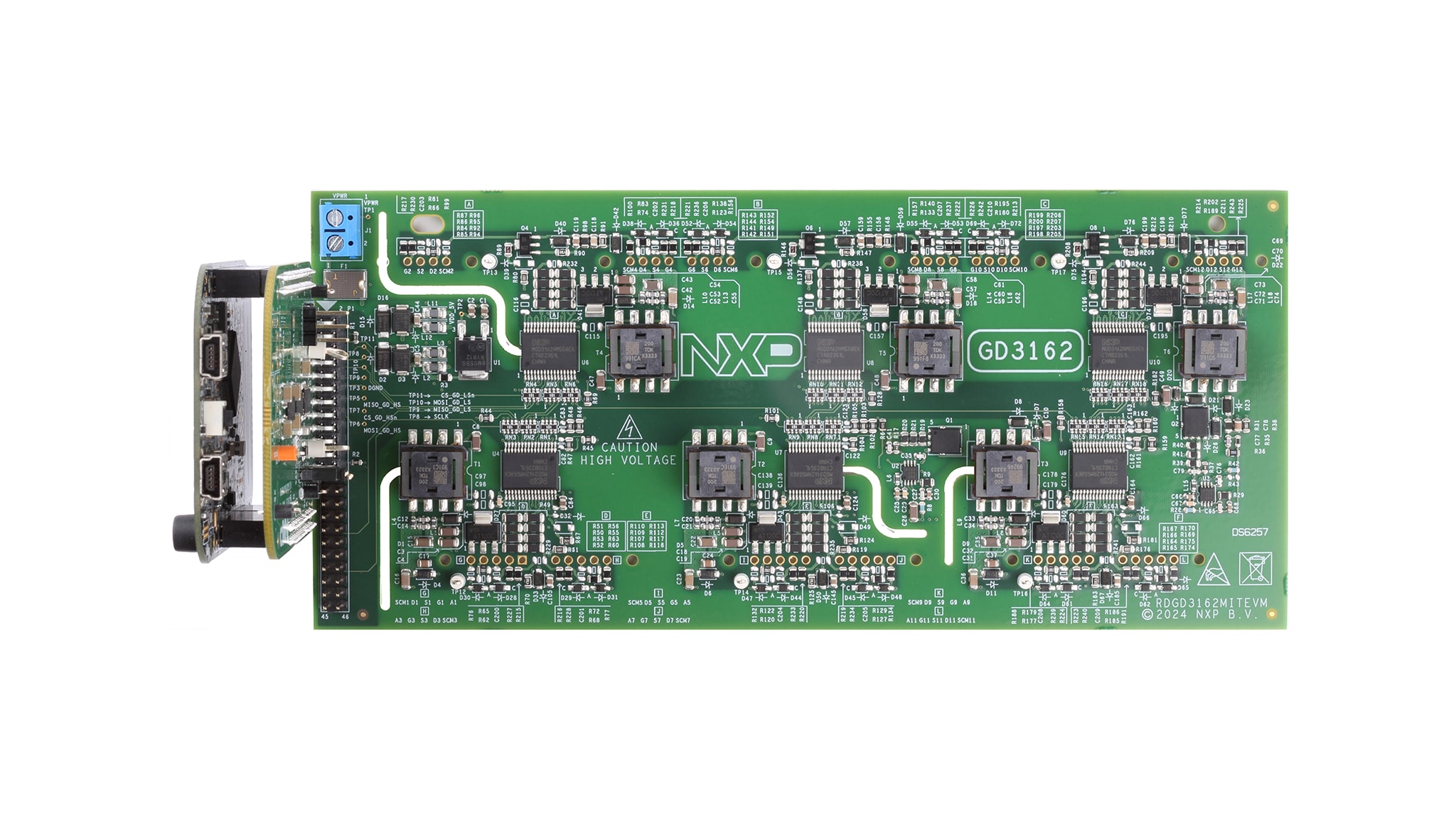

The RDGD3162MITEVM three-phase inverter is a functional hardware power inverter reference design, which can be used as a foundation to develop a complete ASIL D compliant high-voltage, high-power traction motor inverter for electric vehicles. This inverter is compatible with the Mitsubishi CTF700CJ3D130 SiC power module.

Block Diagram

Choose a diagram:

EV-POWEREVBHD2

EV-POWEREVBHD2 Block Diagram

GD3162

GD3162 Block Diagram
Get diagram PDF

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3162: Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control

Features

Board

  • Compatible with Mitsubishi SiC power module (CTF700CJ3D130)
  • Integrated flyback power supply

GD3162

  • Advanced single channel gate drivers designed for IGBT and SiC power modules
  • DESAT and current sense short circuit protection
  • Dynamic gate strength adjustable
  • SPI configurable via daisy chain

Buy Options

RDGD3162MITEVM-Image

Click to expand

  • RDGD3162MITEVM
    Active

  • 3 Phase Inverter Reference Design Using the GD3162 Gate Drive Devices with Mitsubishi® SiC Power Module.

  • The RDGD3162MITEVM is only available for purchase for approved customers.

    Each order will be reviewed prior to being fulfilled.

    We apologize for any experienced inconvenience as a result of this approval process.

    Kit contains:

    • Assembled and tested RDGD3162MITEVM (three-phase inverter populated with 5 V compatible gate-driver devices) board in an antistatic bag
    • KITGD316xTREVB 3.3 V to 5.0 V translator with FRDM-KL25Z MCU board with micro‑USB cable
    • Quick start guide
  • $462.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
