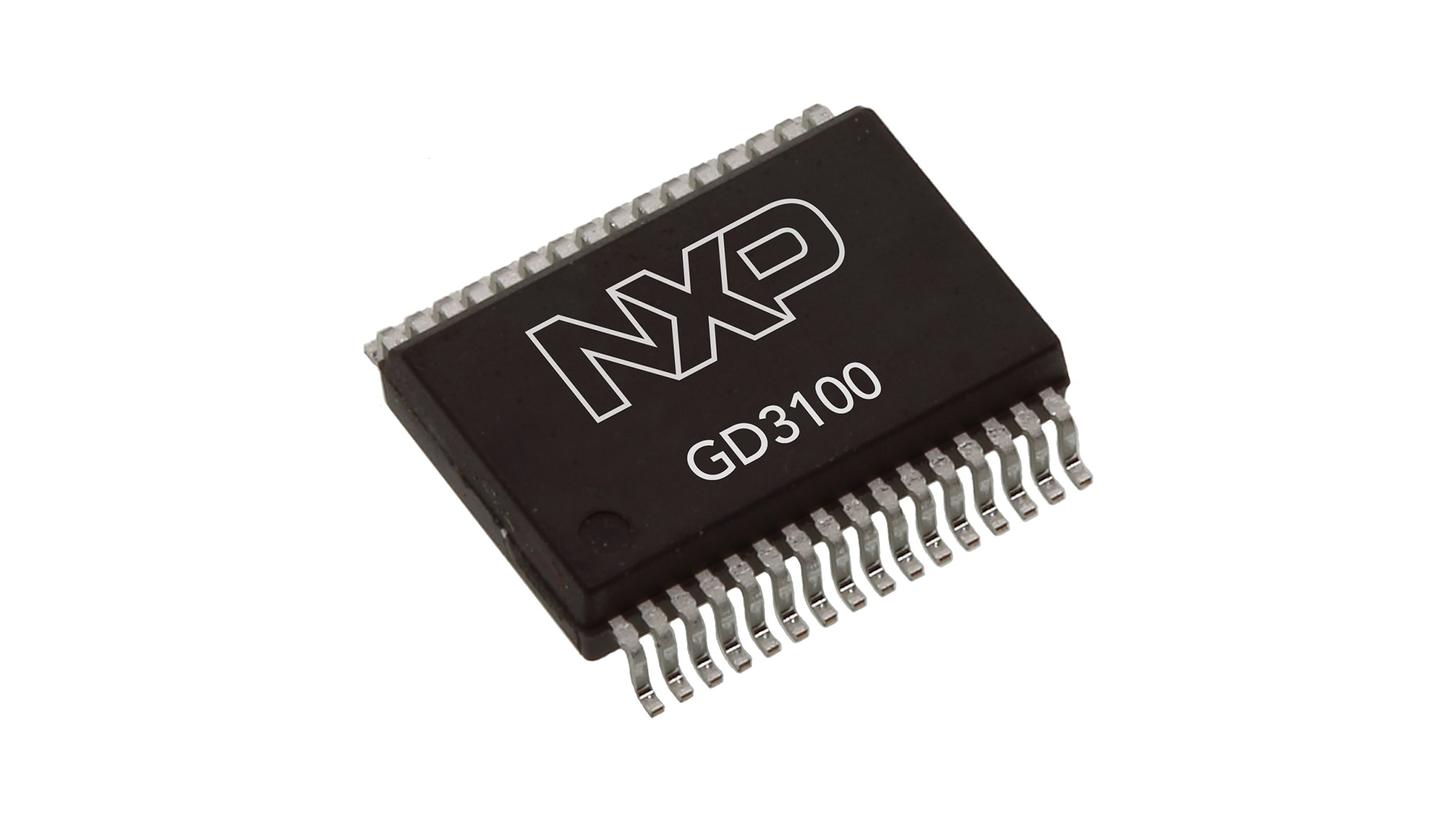

GD3100 | Single-Channel Gate Driver for IGBTs/SiC MOSFETs

Product Details

Block Diagram

Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Get diagram PDF

Features

Key Features

HV isolated IGBT and SiC single gate driver IC device functions
Load current 15 A (IL)
Single channel
Drain-to-source on resistance 500 mOhm RDS(ON)
Load supply voltage min. -12 V, max. 25 V
Supply voltage min. 5.6 V, max. 40 V
Amient operating temperature -40 to 125 °C
PWM and SPI interface and input controllers

High Level of Integration and Flexibility for Any IGBT/SiC Module

Galvanic signal isolation
10 A on/off power stage
Active Miller Clamp
3.3 or 5.0 V I/O
Compatible with 200 to 1700 V IGBTs/SiC
SPI for programmability and diagnostics
Reduces BOM costs and PCB size

Fast Overcurrent or Short Circuit Protection

Both I-sense or DESAT sense available
Two-level turn-off
Soft shutdown

Compliant with ISO26262 ASIL C/D Functional Safety Requirements (Certification Pending)

VGE monitoring to verify communication between PWM input and Gate output
Fail-safe pins allowing redundant gate control
Secure SPI settings with Cycle Redundancy Check (CRC)
Enforced deadtime protection
Built-In Self-Test (BIST) for analog and digital circuits

SafeAssure Functional Safety Program

Safe Assure® (Functional Safety)

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.

Read more

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

6 documents

Compact List

MC33GD3100_SDS, Advanced IGBT/SiC Gate Driver Short Data Sheet[MC33GD3100_SDS]

PDFSep 29, 2023Rev 10

GD3100, Advanced High-Voltage IGBT/SiC Gate Driver with Integrated Isolation - Factsheet[GD3100FS]Featured

PDFFeb 24, 2020Rev 3
EV Power Inverter Control Reference Design Factsheet[RDPWRINVERTERFS]Featured

PDFNov 30, 2022Rev 1

UM11108, FRDM-GD3100EVM half-bridge evaluation board - User's guide[UM11108]

PDFFeb 10, 2020Rev 5.0

Safety Concept Overview of High-Voltage (HV) Traction Inverter - White Paper[SAFETY-CONCEPT-OVERVIEW-HV-TRACTION-INVERTER]

PDFMar 9, 2021Rev 1
High-Voltage (HV) Inverter Safety System Concept for ISO 26262 Compliance - White Paper[345059WP]

PDFMar 23, 2020Rev 0

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Design Files - miscellaneous
800W Bidirectional DC-DC Conversion Solution Based on Programable Digital Signal Controller

Download Options
Design Files - miscellaneous
800W Bidirectional AC-DC Conversion Solution Based on Programable Digital Signal Controller

Download Options

Hardware

Quick reference to our board types.

1-5 of 7 hardware offerings

Complete Solution
3-Phase Reference Design for HybridPACK™ Drive IGBT/SiC Module Featuring GD3100

RDGD3100I3PH5EVB
Complete Solution
3-Phase Reference Design for Fuji M653 IGBTs Featuring GD3100

RDGD3100F3PH5EVB

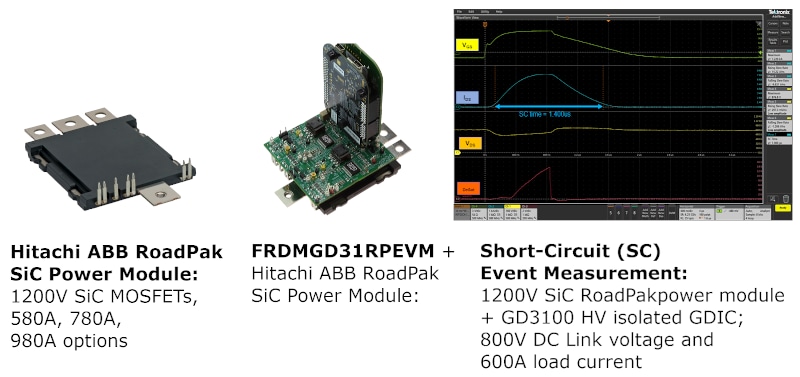

Evaluation and Development Boards

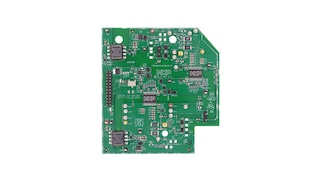

GD3100 Evaluation Board Compatible with HybridPACK^™ Drive IGBT Module
Active

FRDMGD3100HBIEVM
Additional hardware available. View our featured partner solutions.
Evaluation and Development Boards
Half-Bridge Evaluation Kit for P6 IGBT/SiC Modules Featuring the GD3100
Active

FRDMGD3100HB8EVM
Evaluation and Development Boards

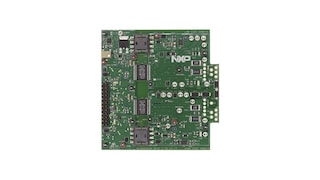

Half-Bridge Evaluation Board for Fuji M653 IGBTs Featuring GD3100

FRDM-GD3100EVM
Evaluation and Development Boards

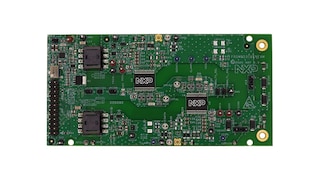

GD3100 Half-Bridge Evaluation Kit
Active

FRDMGD31ECNEVM
Reference Design
EV Power Inverter Control Reference Platform Gen 1

RDPWRINVERTER

Show All

Software

Quick reference to our software types.

2 software files

Debugging and Visualization Tools

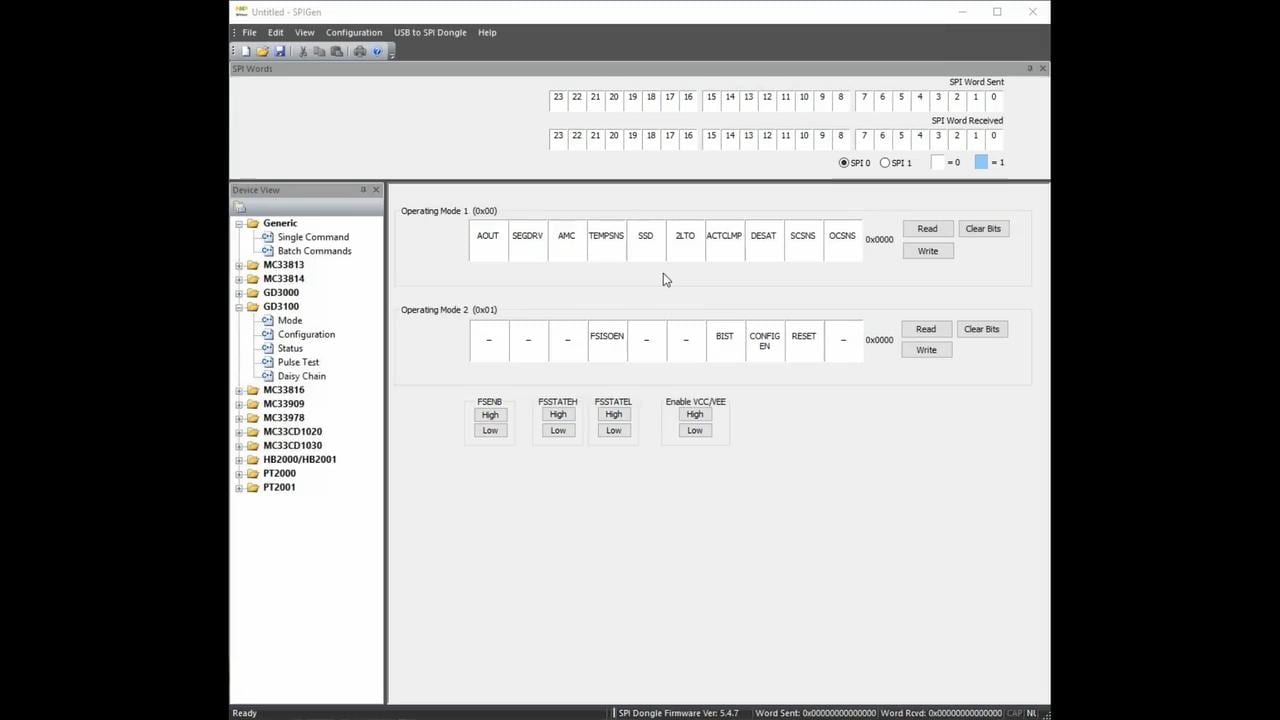

FlexGUI for GD3100 and GD3160 Advanced Gate Driver Evaluation Software

ZIPRev 0.9.4Aug 7, 202365.0 MBflexgui-app-des-gd31xx

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Debugging and Visualization Tools
FlexGUI: Software Tool for Evaluation of Reference Design Kits

Download Options

Note: For better experience, software downloads are recommended on desktop.

Training

1-5 of 6 trainings

On-Demand
HEV/EV Power Inverter Module for Next-Generation Electric and Hybrid Vehicles

54 minEnglish

Account Required

On-Demand
Getting Started with FRDM-GD3100HBIEVM Board

7 minEnglish

Account Required

On-Demand
Functionally Safe xEV Traction Inverter Solutions Supporting SiC MOSFET and IGBTs

47 minEnglish Level: Beginner

Account Required

On-Demand
SiC EV Inverter Reference Design

36 minEnglish Level: Intermediate

Account Required

On-Demand
Traction Inverter: Safety Concept for Resolver Software

32 minEnglish Level: Beginner

Account Required

On-Demand
Future Trends for HV Inverters

33 minEnglish Level: Intermediate

Account Required

Show All
