3-Phase Permanent Magnet Synchronous Motor Control Development Kit with S32K396
Buy Options
MCSPTR2AK396
Active
12NC: 935504962598
Details
Operating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
MCSPTR2AK396(935504962598) | Not Available | Compliant | Not Available | Compliant | 54431.08 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
MCSPTR2AK396 (935504962598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | CCATS |
|---|---|---|
MCSPTR2AK396 (935504962598) | 847150 | G191205 |
More about MCSPTR2AK396

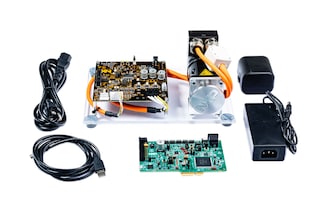

The S32K396 LV Motor Control Kit (MCSPTR2AK396) is a highly advanced, modular kit for PMSM motor control applications. By combining powerful processing, real-time feedback, high-frequency control and safety features into a single offering, this kit is excellent for tackling emerging market demands. It simplifies development, enhances performance, and ensures a robust and future-proof motor control solution.
Based on the 32-bit Arm® Cortex®-M7 S32K39xx microcontroller with eTPU motor control coprocessor and MC33937 FET Pre-Driver, the motor control kit enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.
The MCSPTR2AK396 application software leverages the Automotive Math and Motor Control Library (AMMCLib) set and Real-Time Drivers (RTD) software package to provide a complete reference implementation.
