Features
Battery Cell Controller, Advanced, 6 Channels, TPL, LQFP48.
Package
HLQFP48 LQFP64, plastic, low profile quad flat package; 64 terminals; 0.5 mm pitch; 10 mm x 10 mm x 1.4 mm body.
Features
MCSPTE1AK116 development kit for 3-phase BLDC and 3-phase PMSM motor control
Buy Options
MCSPTE1AK116
Active
12NC: 935405513598
Details
Order
Pending Stock
Order from distributorsOperating Features
| Parameter | Value |
|---|---|
Security Status | COMPANY PUBLIC |
Description | MCSPTE1AK116 development kit for 3-phase BLDC and 3-phase PMSM motor control |
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
MCSPTE1AK116(935405513598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
MCSPTE1AK116 (935405513598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) | CCATS |
|---|---|---|---|
MCSPTE1AK116 (935405513598) | 847150 | 5A992C | G166046 |
More about MCSPTE1AK116

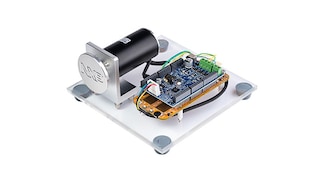

The MCSPTE1AK116 is a development kit engineered for 3-phase Brushless Direct Current (BLDC) motor control (targeting Heating, Ventilation and Air Conditioning (HVAC) or electric pumps) and 3-phase Permanent Magnet Synchronous Motor (PMSM) control (targeting active suspension or electric powertrain).
Based on the 32-bit Arm® Cortex®-M0+ S32K1 microcontroller and the GD3000 pre-driver, the MCSPTE1AK116 enables rapid prototyping and evaluation of BLDC and PMSM motor control applications without having to wait for the final hardware design. The MCSPTE1AK116 application software takes advantage of the Automotive Math and Motor Control Library Set and provides a complete reference implementation for both 3-phase BLDC and PMSM motor control.
