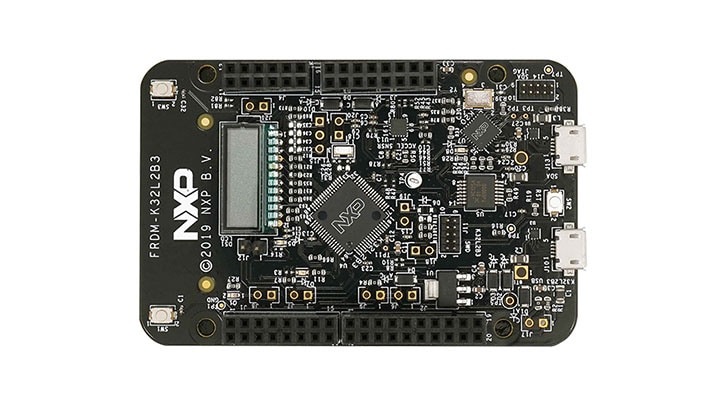

NXP Freedom Development Platform for K32 L2B MCUs

FRDM-K32L2B3

Roll over image to zoom in

The FRDM-K32L2B3 Freedom development board provides a platform for evaluation and development of the K32 L2B MCU Family. The board includes onboard debug probe, segment LCD, accelerometer/magnetometer, a full speed USB and easy access to K32 L2B's MCU I/O. The FRDM-K32L2B3 board is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration tools and an optional free IDE.

Block Diagram

Choose a diagram:

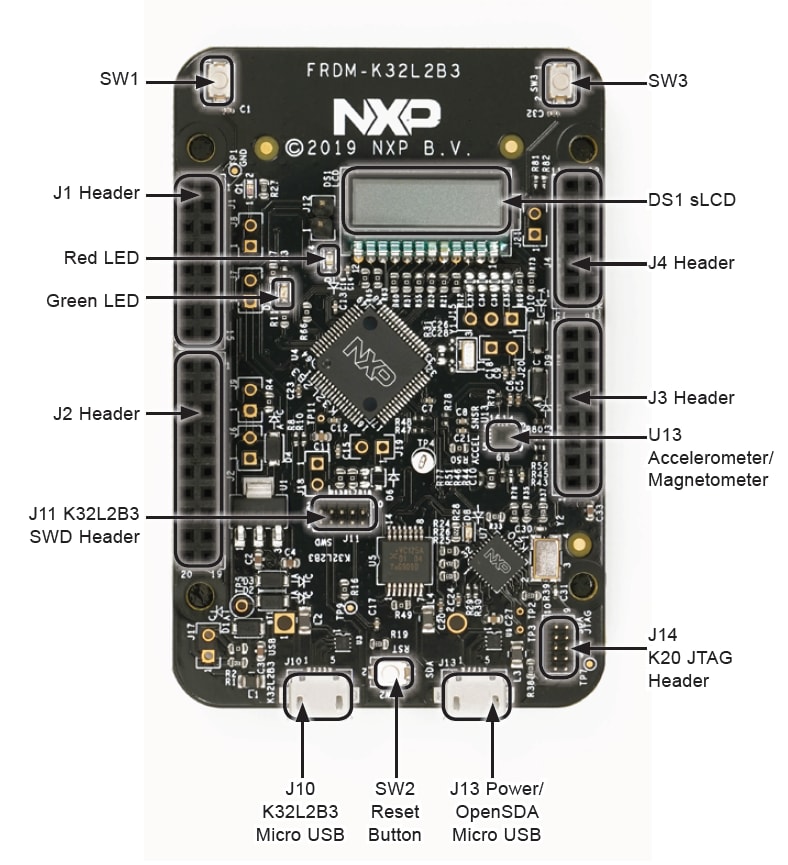

FRDM-K32L2B CALLOUT

K32L2B3 Block Diagram

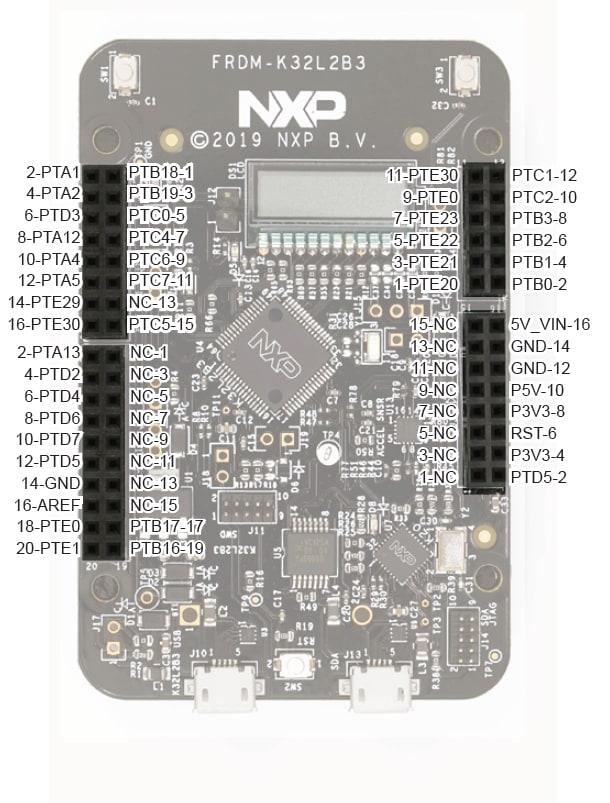

FRDM-K32L2B PINOUT

FRDM-K32L2B3 Pin-Outs
Get diagram PDF

Supported Devices

Processors and Microcontrollers

K32 L Series Arm Cortex-M4/M0+

  • K32-L2: Ultra-Low-Power, Highly Integrated MCU

Features

Microcontroller

  • K32L2B31VLH0A MCU running at up to 48 MHz
  • 256 kB Flash Memory
  • 32 kB SRAM Memory

Connectivity

  • Full-speed USB port with micro A/B connector for device functionality
  • Easy Access to K32 L2B MCU I/O

Debug

  • OpenSDA debug interface
  • P & E Debug interface provides run-control debugging and compatibility with IDE tools

Sensors

  • NXP FXOS8700CQ digital sensor, 3D accelerometer (±2g/±4g/±8g) + 3D magnetometer

Power Management

  • Flexible power supply options

Expansion Options

  • Form factor compatible with Arduino® Rev3 pin layout

LCD

  • On-board segment LCD

Buy Options

FRDM-K32L2B3-Image

Click to expand

  • FRDM-K32L2B3

  • NXP Freedom Development Platform for K32 L2B MCUs.

  • Kit Contains:

    • One FRDM-K32L2B3 board and one USB cable
  • $28.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 24
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
