SIGFOX Development Kit

OM2385-SF002 Active

Roll over image to zoom in

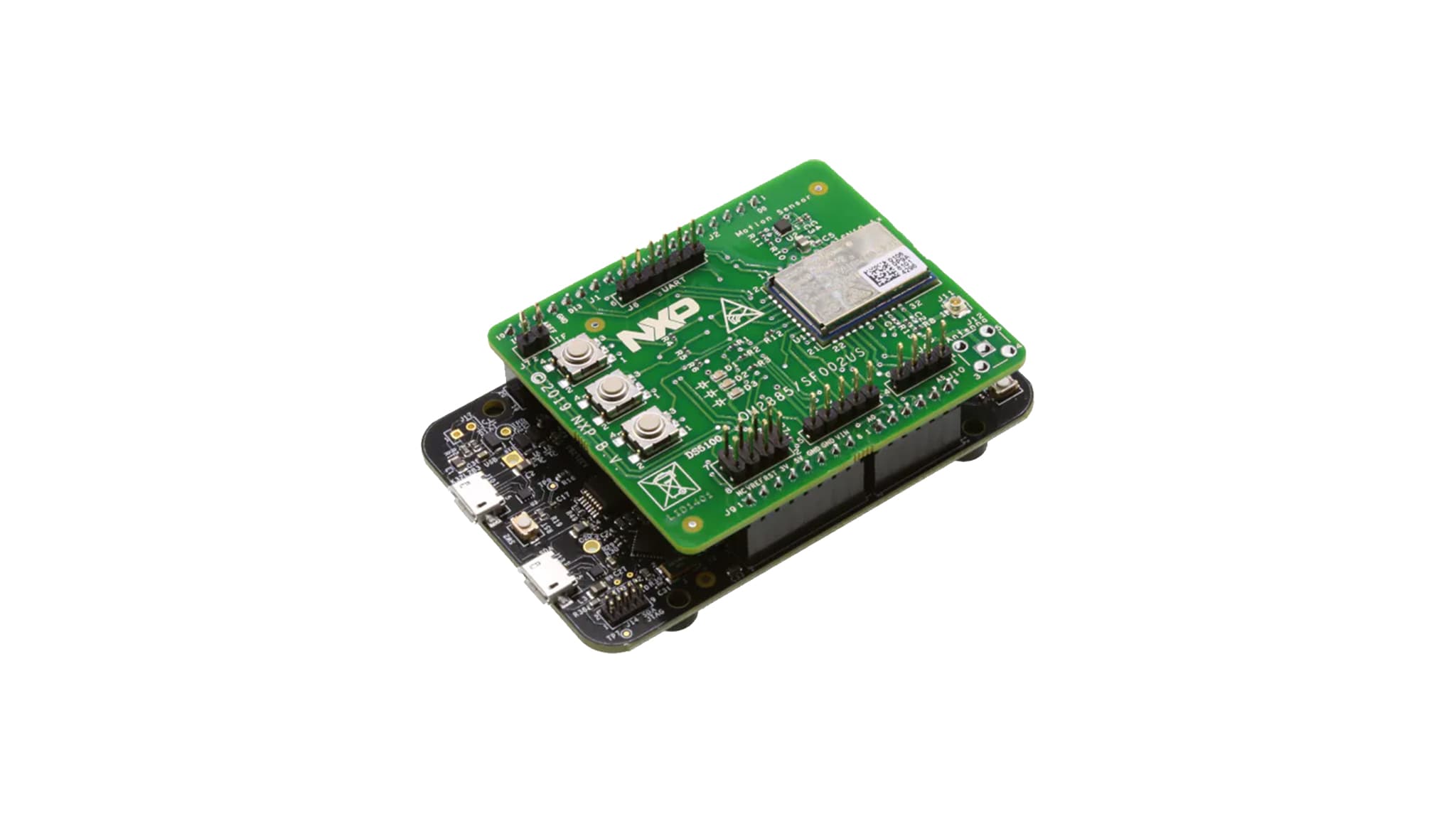

The OM2385/SF002EU and US are development platforms dedicated to SIGFOX applications. It includes an OL2385AHN/001Ax wireless sub-GHz transceiver running a preprogrammed SIGFOX library and is mounted on a FRDM-K32L2B3 Freedom development board that serves as host processor for the user's application. The OL2385 is supplied as an Arduino® compliant shield.

The FRDM-K32L2B3 Freedom development board provides a platform for evaluation and development of the K32 L2B MCU family based on an Arm® Cortex®-M0+ processor running at 48 MHz.

The FRDM-KL43Z is supported by a range of NXP® and third-party development software.

Product Details

Supported Devices

Wireless Connectivity

Sub-GHz ISM Bands

  • OL2385AHN: Low-Power Multi-Channel UHF RF Wireless Platform

Processors and Microcontrollers

K32 L Series Arm Cortex-M4/M0+

  • K32-L2: Ultra-Low-Power, Highly Integrated MCU

Sensors

Accelerometers

  • MMA8451Q: ±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer

Features

General Specifications

  • K32L2B3 host micro
  • SIGFOX P1 cerified for all regions
  • SIGFOX down and uplink support

Support

  • Single binary for all regions with options for external PA
  • Supports SIGFOX in regions RC0 through to RC7

Buy Options

OM2385/SF002EU-Image

Click to expand

  • OM2385/SF002EU
    Active

  • SIGFOX Development Kit.

  • Kit Contains

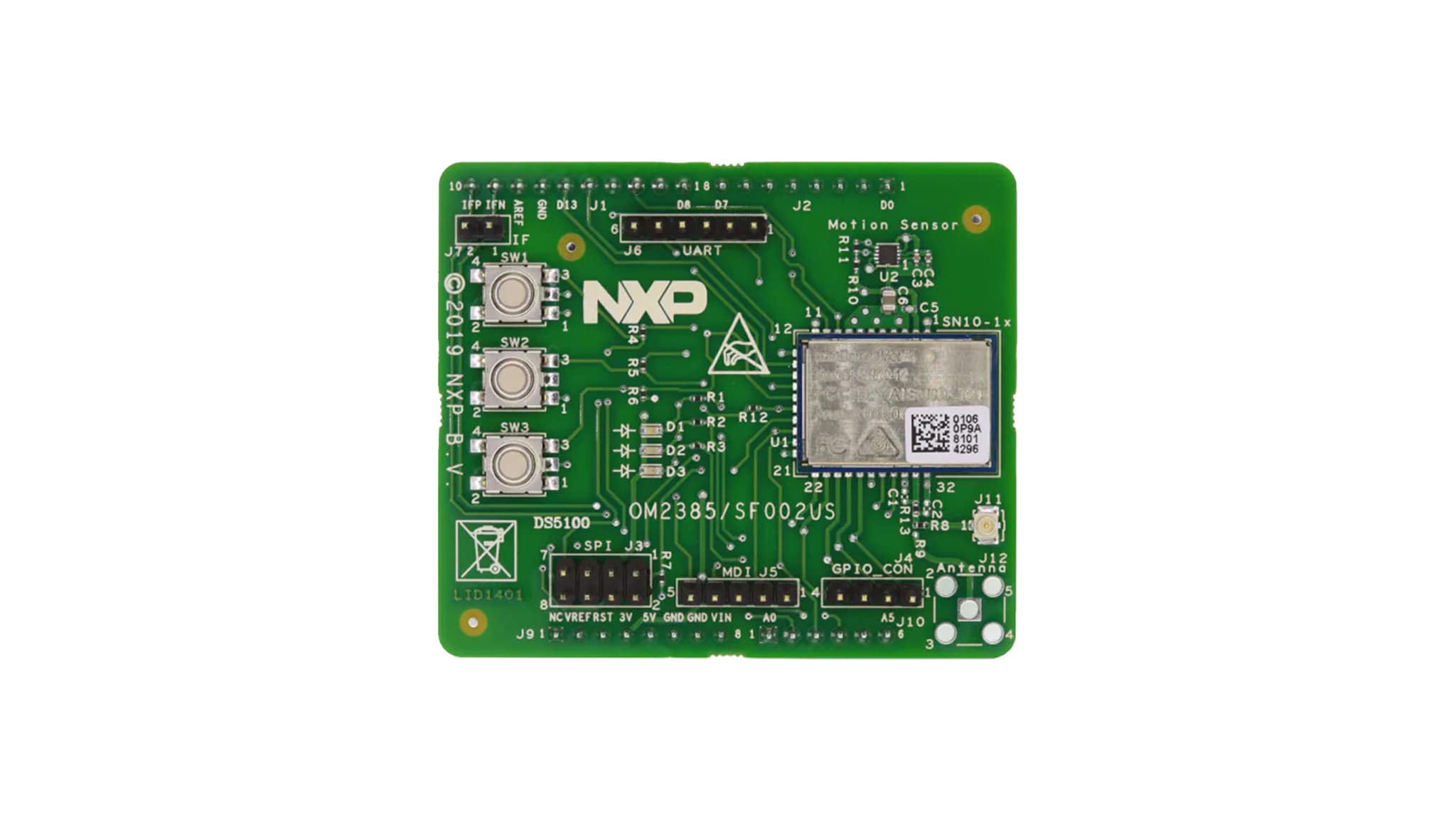

    • OL2385 Arduino Shield Board
    • FRDM-K32L2B3 Freedom Development Board
    • Quick Reference Card
    • USB A-to-MiniB cable
    • Antenna
  • $150.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
OM2385/SF002US-Image

Click to expand

  • OM2385/SF002US
    Active

  • SIGFOX Development Kit.

  • Kit Contains

    • OL2385 Arduino Shield Board
    • FRDM-K32L2B3 Freedom Development Board
    • Quick Reference Card
    • USB A-to-MiniB cable
    • Antenna
  • $150.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
