Arduino^® Shields Solutions

The PCA9958HN-ARD is a 24-channel SPI serial bus 63 mA / 5.5 V constant-current LED driver

The PCAL9722HN-ARD is an ultra low-voltage translating 22-bit SPI I/O expander with Agile I/O features, interrupt output and reset evaluation board.

The P3S0210 is a dual bidirectional I3C-bus 1:2 and 2:1 switch and voltage level translator with auto direction sensing evaluation board.

The P3T1035xUK is an I3C/I²C temperature-to-digital converter with ±0.5 °C accuracy from -40 °C to +125 °C range in WLCSP4.

The P3T2030xUK is an I3C/I²C temperature-to-digital converter with ±2 °C accuracy from -40 °C to +125 °C range in WLCSP4.

The PCF85053ATK-ARD is used to evaluate the functions and performances of PCF85053A using an Arduino Shield connector.

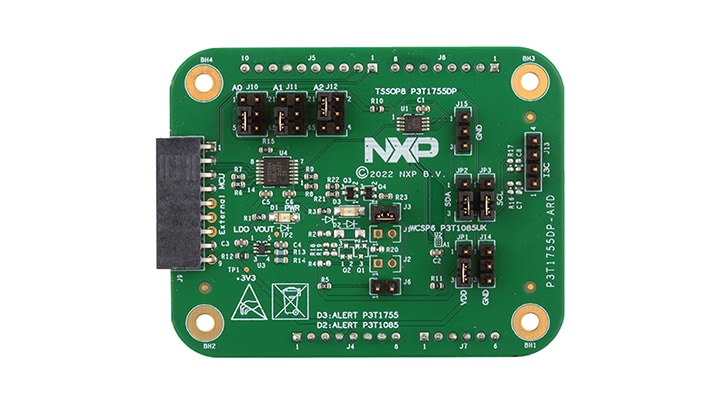

The P3T1755DP is a ±0.5 °C accurate temperature-to-digital converter with a -40 °C to +125 °C range.

The P3T1085UK-ARD evaluation board is easy to test and designed for the P3T1085UK, which is an I3C, I²C-bus, 0.5 °C accuracy, digital temperature.

The PCA9846 is an ultra-low voltage quad bidirectional translating switch controlled via the I²C-bus.

The PCA9617A is a CMOS integrated circuit that provides level shifting between low voltage (0.8 V to 5.5 V) and higher voltage (2.2 V to 5.5 V) fast-mode Plus (Fm+) I²C-bus or SMBus applications.

The NTS0304EUK-ARD is an Arduino compatible board designed to make it easy to evaluate the NTS0304E, a four channel bidirectional level translator, via a Windows based GUI.

The PCA8561 is an ultra low-power LCD segment driver with 4 backplane and 18 segment-driver outputs, with either an I²C or an SPI-bus interface. It comprises an internal oscillator, bias generation, instruction decoding and display controller.

The PCA9955B is an I²C-bus controlled 16-channel constant current LED driver optimized for dimming and blinking 57 mA Red/Green/Blue/Amber (RGBA) LEDs in amusement products.

PCF85263ATL-ARD is an Arduino Shield, which allows customers to evaluate/test almost all the functionalities of PCF85263ATL Real-Time Clock over an Arduino compatible base board.

PCAL6524EV-ARD is a 24-bit general purpose I/O expander that provides remote I/O expansion for microcontroller families via the Fast-mode Plus (Fm+) I²C-bus interface.

PCAL6534EV-ARD is a 34-bit general purpose I/O expander that provides remote I/O expansion for microcontroller families via the Fast-mode Plus (Fm+) I²C-bus interface.

PCAL6408A is an 8-bit general-purpose I/O expander that provides remote I/O expansion for microcontroller families via the I²C-bus interface.

PCAL6416A is a 16-bit general-purpose I/O expander that provides remote I/O expansion for microcontroller families via the I²C-bus interface.

Arduino Shield features all the functionalities of PCF85063TP Real-Time Clock over an Arduino compatible base board.

Arduino Shield features LEDs and GUI identical to PCA9957HN-ARD but this LED controller supports up to four groups of LED gradation control with each group supporting 64-grid brightness control and auto indexing for complex LED pattern generation.

Arduino shield features CMOS real-time clock (RTC) module and calendar with an integrated temperature compensated crystal (Xtal) oscillator (TCXO).

Arduino Shield features LEDs for color mixing, blinking and dimming demonstrations. A graphical interface allows the user to easily explore the different functions of the driver.

i.MX8M Mini EVK Interposer allows all of the Arduino Shield family to connect to the i.MX8M Mini EVK to create an evaluation solution.

Arduino Shield, which allows customers to evaluate/test almost all the functionalities of PCF85063AT Real-Time Clock over an Arduino compatible base board.

Arduino Shield features Temperature Sensor functionalities on a board compatible with Arduino R3 pin layout.
