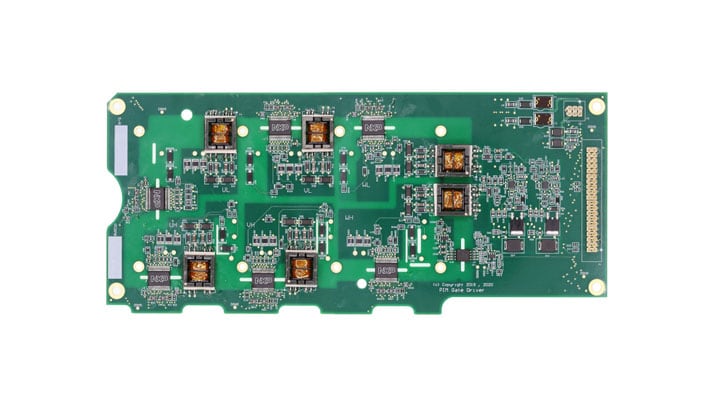

EV-INVERTER
Design
High-voltage traction motor reference design offering a complete PIM system solution engineered for e-mobility featuring MPC5775E / GD3100 / FUJI M653 IGBT modules
- Analog Toolbox
- Power Inverter Systems (PIM) Hardware Solutions
Power Inverter Systems (PIM) Hardware Solutions
NXP Power Inverter Module (PIM) solutions were developed to provide an easy-to-use platform for evaluating NXP products. The platforms are configured for longer battery life, smaller form factor, reduced component count, lower BOM cost and improved performance in powering high voltage (HV) electric vehicle (EV) traction inverters. Solutions are provided for both HV IGBT and HV SiC MOSFET-based power modules.
The PIM reference designs combine NXP’s comprehensive automotive portfolio of world-class automotive MCUs, CAN bus interfaces, safety system basis chips and HV Gate Drivers. The platforms provide ASIL D system level functional safety design, enablement software and safety documentation.
HV IGBT based PIM
RDGD3100I3PH5EVB
Design
Low cost 3-phase power inverter reference design for HybridPACK™ Drive IGBT / SiC MOSFET modules featuring GD3100
RDGD3100F3PH5EVB
Design
Low cost 3-phase power inverter reference design for Fuji M653 IGBT modules featuring GD3100
HV SiC MOSFET based PIM
SiC EV Power Inverter
Design
High-voltage traction motor reference design offering a complete PIM system solution engineered for e-mobility featuring MPC5775E / GD3160 / CREE SiC MOSFET in P6 module
RDGD31603PHSEVM
Design
Three phase reference design and evaluation kit that enables user to develop and evaluate GD3160 gate drive devices with a compatible SiC MOSFET three phase module.
HV GDIC GD31xx and MCU SPC5775E boards

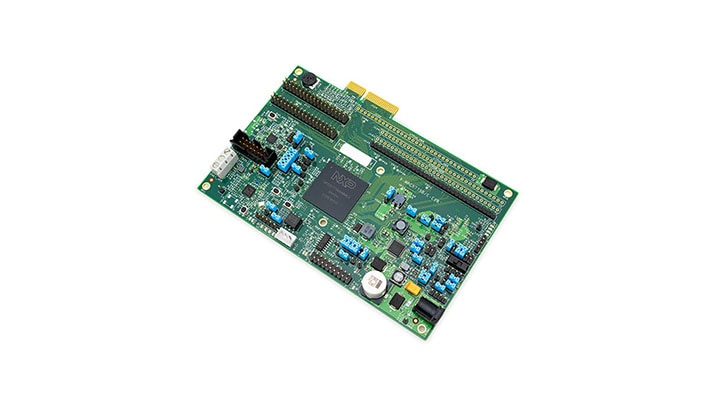

MPC5775E-EVB
Development Board
Low-cost MCU development boards engineered for inverter applications featuring MPC5775E
FRDMGD31ECNEVM
Evaluation board
Half-Bridge evaluation board for Econo-dual modules featuring GD3100
FRDMGD31RPEVM
Evaluation board
Half-Bridge evaluation board for ABB Hitachi RoadPak IGBT/SiC modules featuring GD3100
FRDMGD3100HB8EVM
Evaluation board
Half-Bridge evaluation board for HybridPACK™ Drive (P6HE pinout) IGBT / SiC MOSFET modules featuring GD3100
FRDMGD3100HBIEVM
Evaluation board
Half-Bridge evaluation board for HybridPACK™ Drive P6 IGBT / SiC MOSFET modules featuring GD3100
FRDM-GD3100EVM
Evaluation board
Half-Bridge evaluation board for Fuji M653 IGBT modules featuring GD3100

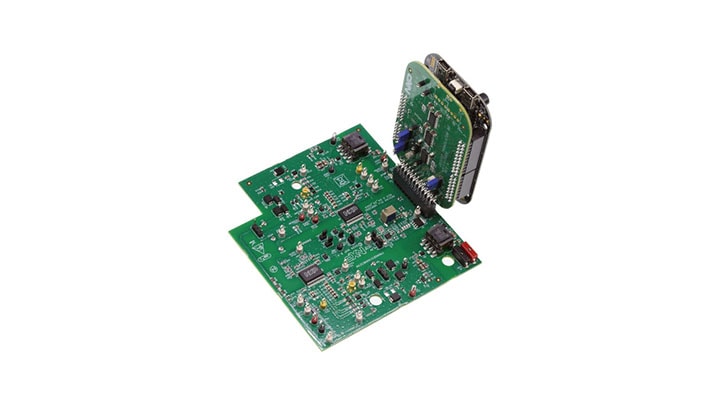

FRDMGD3160HBIEVM
Evaluation board
Half-bridge evaluation board for HybridPACK™ Drive P6 IGBT / SiC MOSFET modules featuring GD3160
FRDMGD3160XM3EVM
Evaluation board
Half-bridge evaluation board for Cree / Wolf speed XM3 SiC MOSFET modules featuring GD3160
FRDMGD3160DSCHB
(Prototypes coming soon)
Evaluation board
Half-bridge evaluation board for ON SEMI DSC IGBT / SiC MOSFET modules featuring GD3160
