GD3160 HP Drive Half-Bridge Evaluation Kit

FRDMGD3160HBIEVM Active

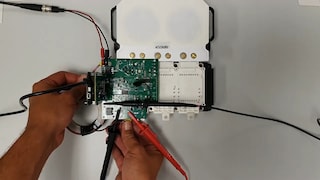

Using FleXGUI with the GD31xx Gate Driver

Click over video to play

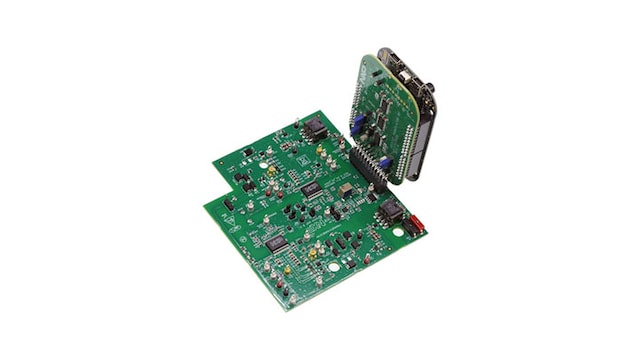

FRDMGD3160HBIEVM is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the MC33GD3160 gate drive devices in either daisy chain or standalone configuration.

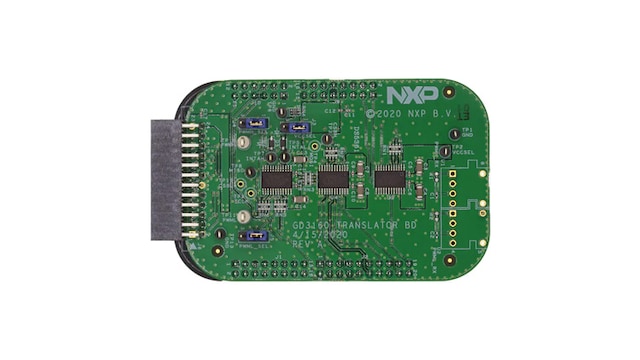

The GD3160 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers. The evaluation kit is designed to connect to a single phase of a HybridPACK™ Drive SIC/IGBT module or onsemi VE-trac™ IGBT module for half-bridge evaluations and applications development.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Features

General

  • Compatible with HybridPack IGBT or SiC MOSFET module
  • Flex GUI available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double pulse and short circuit evaluations
  • Fiber optic connections for external PWM inputs optional, not included

Buy Options

FRDMGD3160HBIEVM-Image

Click to expand

  • FRDMGD3160HBIEVM
    Active

  • GD3160 HP Drive Half-Bridge Evaluation Kit .

  • Half-Bridge evaluation kit featuring GD3160 gate drive devices for IGBT/SiC MOSFET

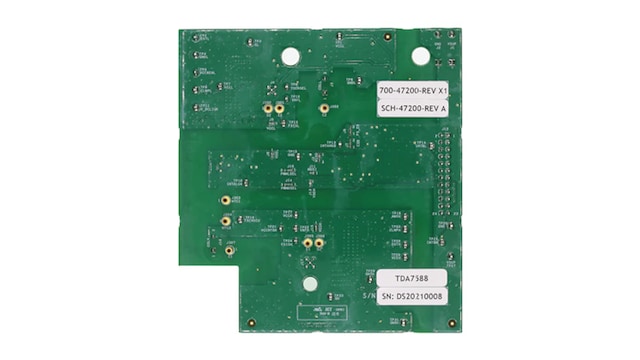

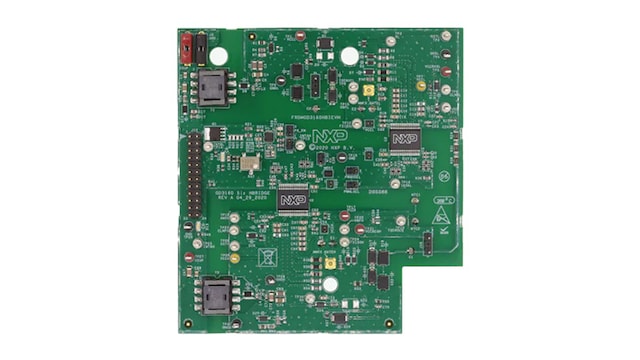

    • Assembled and tested FRDMGD3160HBIEVM board in an anti-static bag
    • 3.3 V to 5.0 V Translator Board (KITGD3160TREVB) connected to FRDM-KL25Z
    • USB cable, type A Male/type Mini B Male, 3 ft
    • Quick start guide
  • $251.25 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
