PCA9846PW-ARD Arduino® Shield

PCA9846PW-ARD Active

Roll over image to zoom in

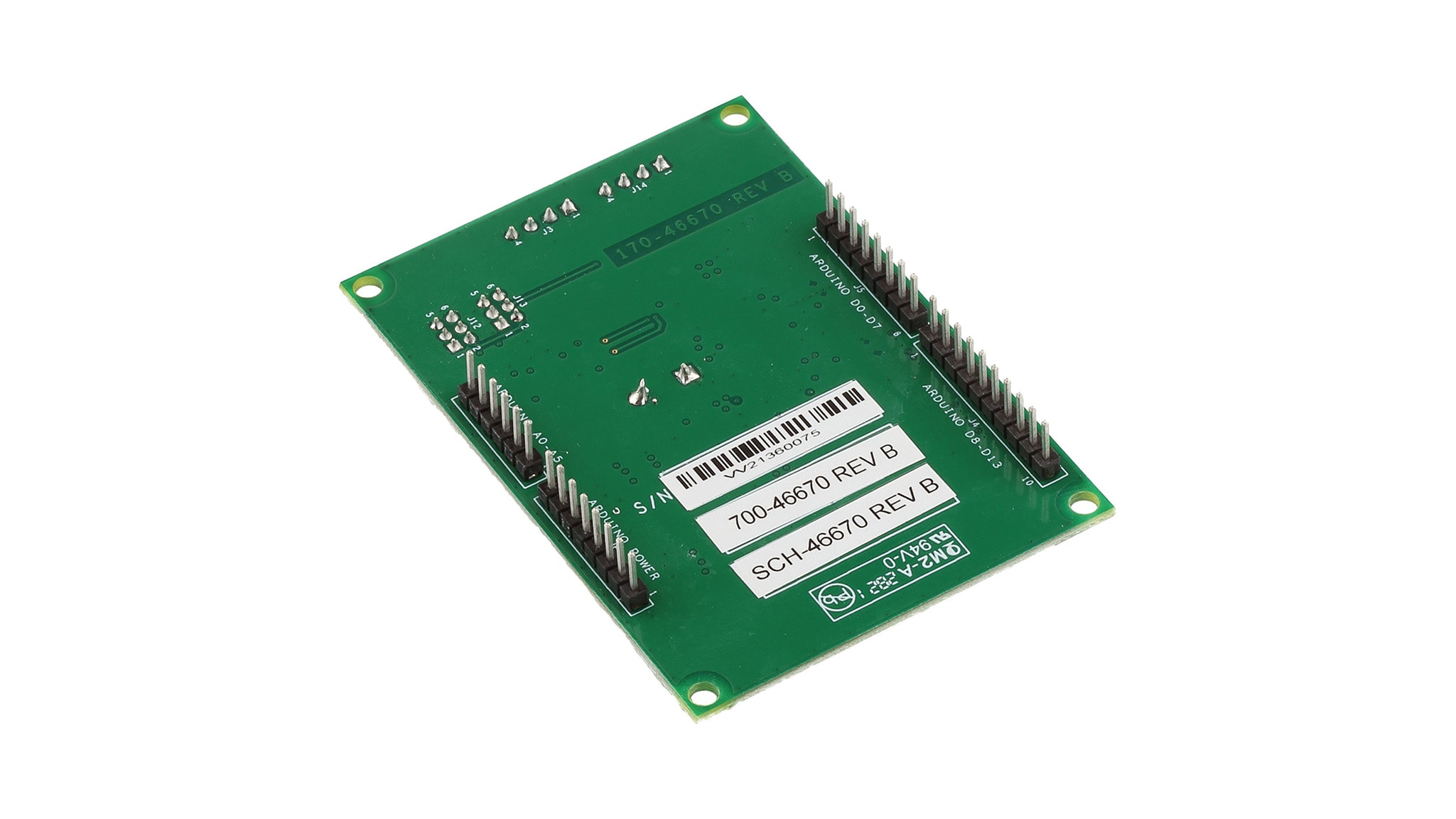

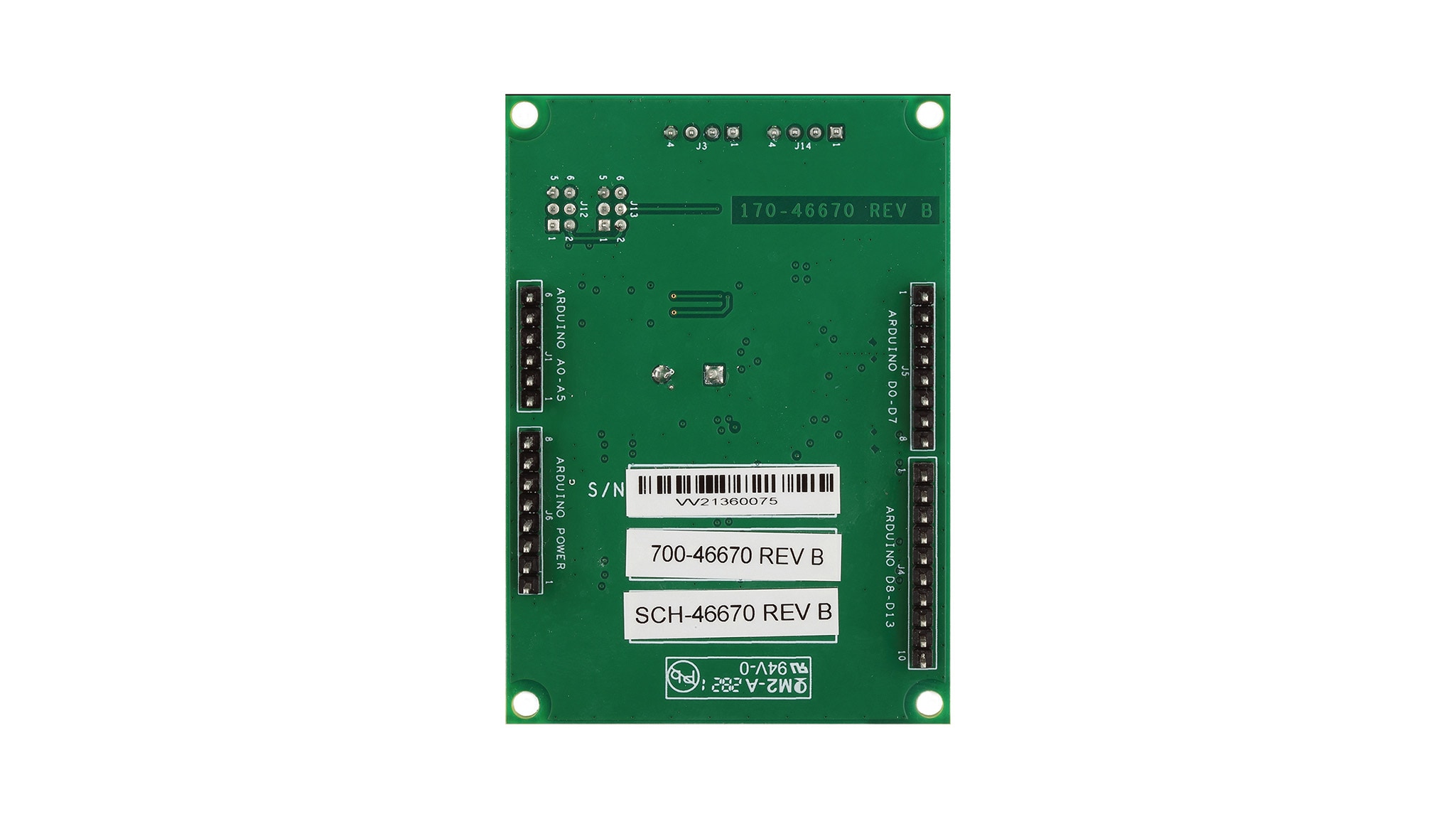

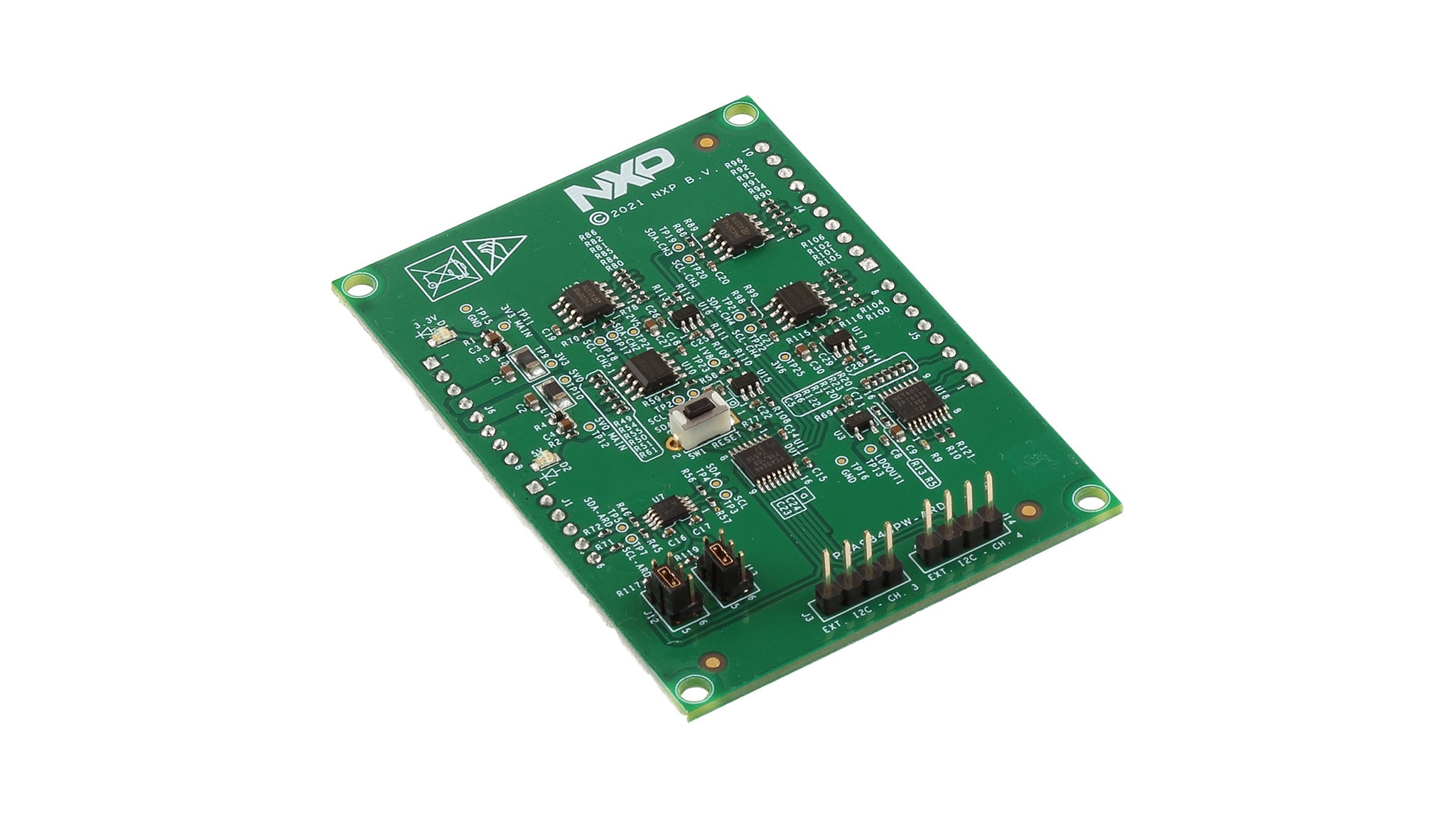

The PCA9846PW-ARD Arduino shield allows easy integration with Arduino EVKs to evaluate 4 channel Fm+ I²C-bus switch features for I²C-bus multiplexer and I²C-bus voltage level translator applications.

Supported Devices

Interfaces

I²C Logic Multiplexers/Switches

  • PCA9846: Four-Channel Ultra-Low Voltage, Fm+ I2C-Bus Switch with Reset

Features

General Function

  • Ultra-low voltage operation, down to 0.8 V to interface with next-generation CPUs
  • 1-of-4 bidirectional translating switch
  • Latched outputs with 25 mA drive maximum capability for directly driving LEDs
  • Fm+ I²C-bus interface logic; compatible with SMBus standards
  • Allows voltage level translation between 0.8 V, 1.8 V, 2.5 V and 3.3 V buses

Power

  • Supply voltage: VDD1 - 0.8 V to 3.6 V, VDD2 - 1.65 V to 3.6 V
  • Low standby current 2 uA (VDD1), 5 uA (VDD2)

Voltage Translation

  • Allows bidirectional voltage-level translation and I²C-bus switch between:
    • 0.8 V SCL/SDA to 1.8 V, 2.5 V, 3.3 V SCL/SDA
    • 1.8 V SCL/SDA to 2.5 V, 3.3 V SCL/SDA
    • 2.5 V SCL/SDA to 3.3 V SCL/SDA

Interface

  • 1 MHz I²C-bus
  • /RESET pin

Package

  • HVQFN16 and TSSOP16

Buy Options

PCA9846PW-ARD-Image

Click to expand

  • PCA9846PW-ARD

  • PCA9846PW-ARD Arduino® Shield.

  • Kit contains:

    • PCA9846PW-ARD Arduino shield
    • Quick reference card
    • Additonal hardware required: USB A-to-MicroB cable (not included)
  • $22.22 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
