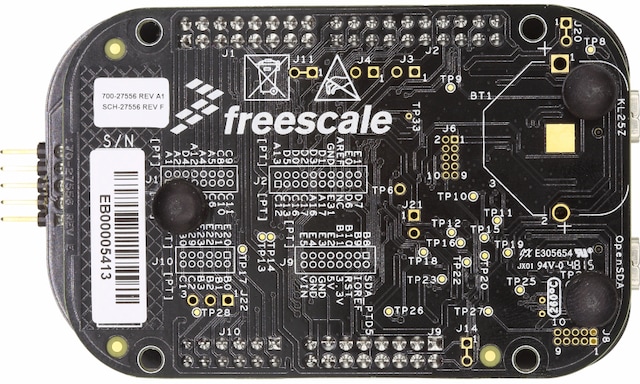

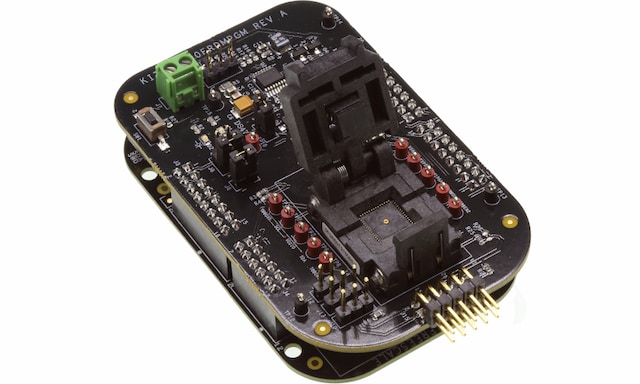

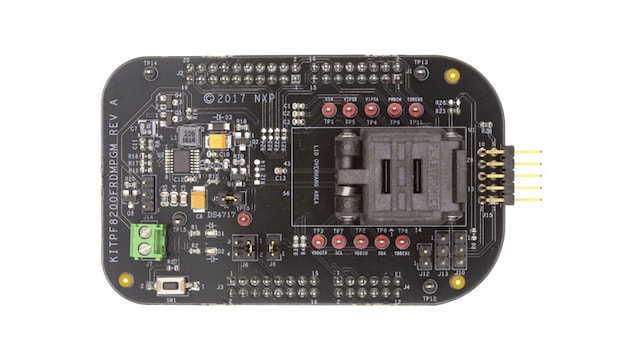

The KITPF8200FRDMPGM is a programming board featuring a 56 pin QFN socket compatible with all PF81xx and PF82xx PMICs. It integrates a communication bridge based on the FRDM-KL25Z freedom board to communicate with the FlexGUI software interface to program the OTP configuration.

Design Files

Software

Product Details

Block Diagram

Choose a diagram:

KITPF8200FRDMPGM Block Diagram

PF8100/PF8200 Multi-channel PMIC Block Diagram

KITPF8200FRDMPGM Block Diagram 2

PF8101/PF8201, 9-channel PMIC Block Diagram

KITPF8200FRDMPGM Block Diagram 3

Get diagram PDF

Supported Devices

Power Management

PMICs

PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
PF8101-PF8201: 9-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
PF8121: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Consumer Applications

Features

Programming Socket

Clamshell 56-pin QFN socket

System Features

5.0 V operating input voltage range (from USB connector)
Integrated boost converted to supply VDDOTP programming voltage
USB to I²C communication via the FRDM-KL25Z interface
In-line programming interface connector
