CMP9010-1-EVB
-
CMP9010 w/on-board antenna, uSD interface, IW416-based module, enables radio evaluation and RTOS/Linux driver integration and development.
- 1 x CMP9010-1-EVB

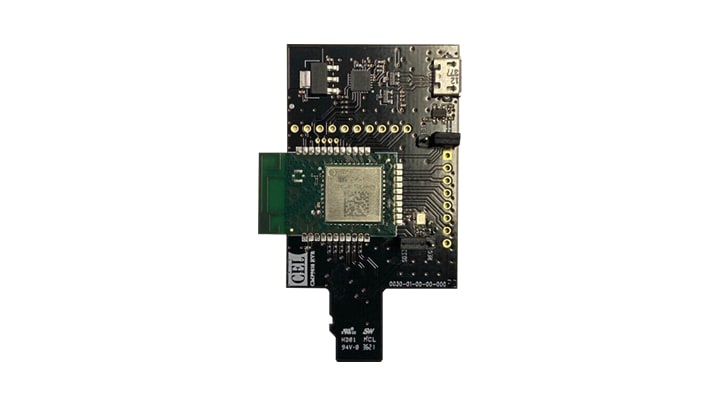

CMP9010-X-EVB (IW416) uSD Interface Evaluation Board
The CMP9010 is a complete FCC/IC/CE certified IW416-based module with an onboard antenna or antenna connector. The CMP9010-1x-EVB enables you to quickly evaluate and integrate this certified module with your host MCU/MPU both RTOS and Linux drivers are provided. Additionally, the evaluation board allows you to test the excellent dual-band 802.11 a/b/g/n/ and BT5.1 wireless performance. Wi-Fi and BT are supported via SDIO and UART interfaces respectively.
Product Details
Features
Wi-Fi 4
- 2.4/5GHz Dual-Band Wi-Fi 4, 802.11 a/b/g/n, 1x1
Bluetooth
- BT 5.1, BT Mesh
- DC2DC converter, level shifter
Interfaces
- Wi-Fi/SDIO, BT/UART
Antennas
- On-board dual-band or MHF4 connector for external
Operating Temperature
- Industrial or Commercial
Package Type
- SMT w/castellation edge connections
Certifications
- FCC/IC/CE
Drivers
- RTOS and Linux
Buy
Buy Options
-
CMP9010-1C-EVB
-
CMP9010 w/MHF4 connector, uSD interface, IW416-based module, enables radio evaluation and RTOS/Linux driver integration and development.
- 1 x CMP9010-1C-EVB
