I²C-Bus RTC Demo Board

OM13515 Active

Roll over image to zoom in

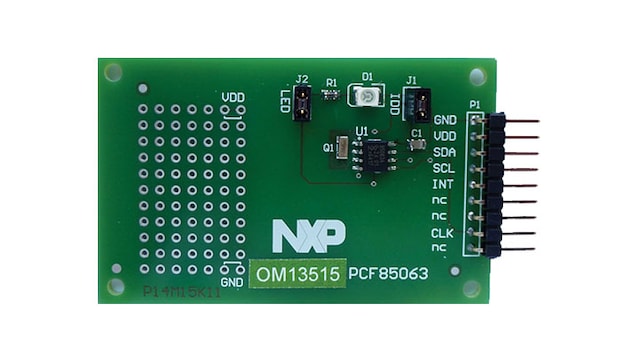

The evaluation board OM13515 uses the low power RTC PCF85063AT with I²C-bus interface

Product Details

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCA85073A: Automotive Tiny Real-Time Clock/Calendar with Alarm Function and I²C-Bus
  • PCA85063A: Automotive Tiny Real-Time Clock/Calendar with Alarm Function and I²C-bus

Features

Key Features

  • To visualize the interrupt an LED (D1) is mounted. To minimize the power consumption, it can be switched off by removing the jumper J2
  • No need to solder the tiny package to a breadboard 100 mil connector for straight forward connections
  • The OM13515 allows easily demonstrating the operation of the PCx85063A with I²C-bus interface

Straight Forward Interfacing

  • Connect supply voltage (e.g. 3.3 V): VSS to pin 1, VDD to pin 2
  • Connect I²C-bus (pull-up resistor needed): SCL to pin 4, SDA to pin 3
  • Connect interrupt and/or CLKOUT if required Communicate with the RTC

Buy Options

OM13515-Image

Click to expand

  • OM13515
    Active

  • I2C-bus RTC demoboard.

  • For a quantity of 1
Order from distributors
N true 0 TSPOM13515en 4 Application Note Application Note t789 1 Data Sheet Data Sheet t520 1 User Guide User Guide t792 2 en_US en_US 2 1 2.0 English 1442125798293696130772 TSP 446.9 KB None None documents Y None 1442125798293696130772 /docs/en/user-guide/UM10788.pdf 446862 /docs/en/user-guide/UM10788.pdf UM10788 N N 2015-10-05 User manual for I²C-bus RTC demo board OM13515 /docs/en/user-guide/UM10788.pdf /docs/en/user-guide/UM10788.pdf User Guide N 132339537837198660 2023-10-17 pdf N en Oct 5, 2015 User Guide t792 User Guide User Guide Y N User manual for I²C-bus RTC demo board OM13515 2 2.1 English 1442125649798715943478 TSP 983.6 KB None None documents Y None 1442125649798715943478 /docs/en/user-guide/UM10301.pdf 983634 /docs/en/user-guide/UM10301.pdf UM10301 N N 2016-07-11 User Manual for NXP Real Time Clocks PCF85x3, PCF85x63, PCA8565, PCF2123, and PCA21125 /docs/en/user-guide/UM10301.pdf /docs/en/user-guide/UM10301.pdf User Guide N 132339537837198660 2025-01-10 pdf N en Jul 24, 2015 User Guide t792 User Guide User Guide Y N User Manual for NXP Real Time Clocks PCF85x3, PCF85x63, PCA8565, PCF2123, and PCA21125 false en Data Sheet Data Sheet 1 3 7.1 English The PCF85063A is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low power consumption. An offset register allows fine-tuning of the clock. All addresses and data are transferred serially via the two-line bidirectional I2C-bus. Maximum data rate is 400 kbit/s. The register address is incremented automatically after each written or read data byte 1442052833636706306738 TSP 710.0 KB None None documents None 1442052833636706306738 /docs/en/data-sheet/PCF85063A.pdf 710007 /docs/en/data-sheet/PCF85063A.pdf PCF85063A documents N N 2018-04-10 Tiny Real-Time Clock/calendar with alarm function and I2C-bus /docs/en/data-sheet/PCF85063A.pdf /docs/en/data-sheet/PCF85063A.pdf Data Sheet N 980000996212993340 2023-11-08 pdf N en Nov 8, 2023 980000996212993340 Data Sheet Y N Tiny Real-Time Clock/calendar with alarm function and I2C-bus Application Note Application Note 1 4 1.0 English Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor 1442087074494735975495 TSP 316.8 KB None None documents None 1442087074494735975495 /docs/en/application-note/AN11247.pdf 316783 /docs/en/application-note/AN11247.pdf AN11247 documents N N 2015-03-06 Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor /docs/en/application-note/AN11247.pdf /docs/en/application-note/AN11247.pdf Application Note N 645036621402383989 2024-04-23 pdf N en Mar 6, 2015 645036621402383989 Application Note Y N Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor false 0 OM13515 downloads en true 0 Y TSP Application Note 1 /docs/en/application-note/AN11247.pdf 2015-03-06 1442087074494735975495 TSP 4 Mar 6, 2015 Application Note Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor None /docs/en/application-note/AN11247.pdf English documents 316783 None 645036621402383989 2024-04-23 N /docs/en/application-note/AN11247.pdf Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor /docs/en/application-note/AN11247.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N Improved timekeeping accuracy with PCF85063, PCF8523 and PCF2123 using an external temperature sensor 316.8 KB AN11247 N 1442087074494735975495 Data Sheet 1 /docs/en/data-sheet/PCF85063A.pdf 2018-04-10 1442052833636706306738 TSP 3 Nov 8, 2023 Data Sheet The PCF85063A is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low power consumption. An offset register allows fine-tuning of the clock. All addresses and data are transferred serially via the two-line bidirectional I2C-bus. Maximum data rate is 400 kbit/s. The register address is incremented automatically after each written or read data byte None /docs/en/data-sheet/PCF85063A.pdf English documents 710007 None 980000996212993340 2023-11-08 N /docs/en/data-sheet/PCF85063A.pdf Tiny Real-Time Clock/calendar with alarm function and I2C-bus /docs/en/data-sheet/PCF85063A.pdf documents 980000996212993340 Data Sheet N en None Y pdf 7.1 N N Tiny Real-Time Clock/calendar with alarm function and I2C-bus 710.0 KB PCF85063A N 1442052833636706306738 User Guide 2 /docs/en/user-guide/UM10788.pdf 2015-10-05 1442125798293696130772 TSP 1 Oct 5, 2015 User Guide User Guide Y None /docs/en/user-guide/UM10788.pdf English 446862 None User Guide 2023-10-17 N /docs/en/user-guide/UM10788.pdf User manual for I²C-bus RTC demo board OM13515 /docs/en/user-guide/UM10788.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 2.0 N N User manual for I²C-bus RTC demo board OM13515 446.9 KB UM10788 N 1442125798293696130772 /docs/en/user-guide/UM10301.pdf 2016-07-11 1442125649798715943478 TSP 2 Jul 24, 2015 User Guide User Guide Y None /docs/en/user-guide/UM10301.pdf English 983634 None User Guide 2025-01-10 N /docs/en/user-guide/UM10301.pdf User Manual for NXP Real Time Clocks PCF85x3, PCF85x63, PCA8565, PCF2123, and PCA21125 /docs/en/user-guide/UM10301.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 2.1 N N User Manual for NXP Real Time Clocks PCF85x3, PCF85x63, PCA8565, PCF2123, and PCA21125 983.6 KB UM10301 N 1442125649798715943478 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

4 documents

Compact List

Application Note (1)
Data Sheet (1)
User Guide (2)
