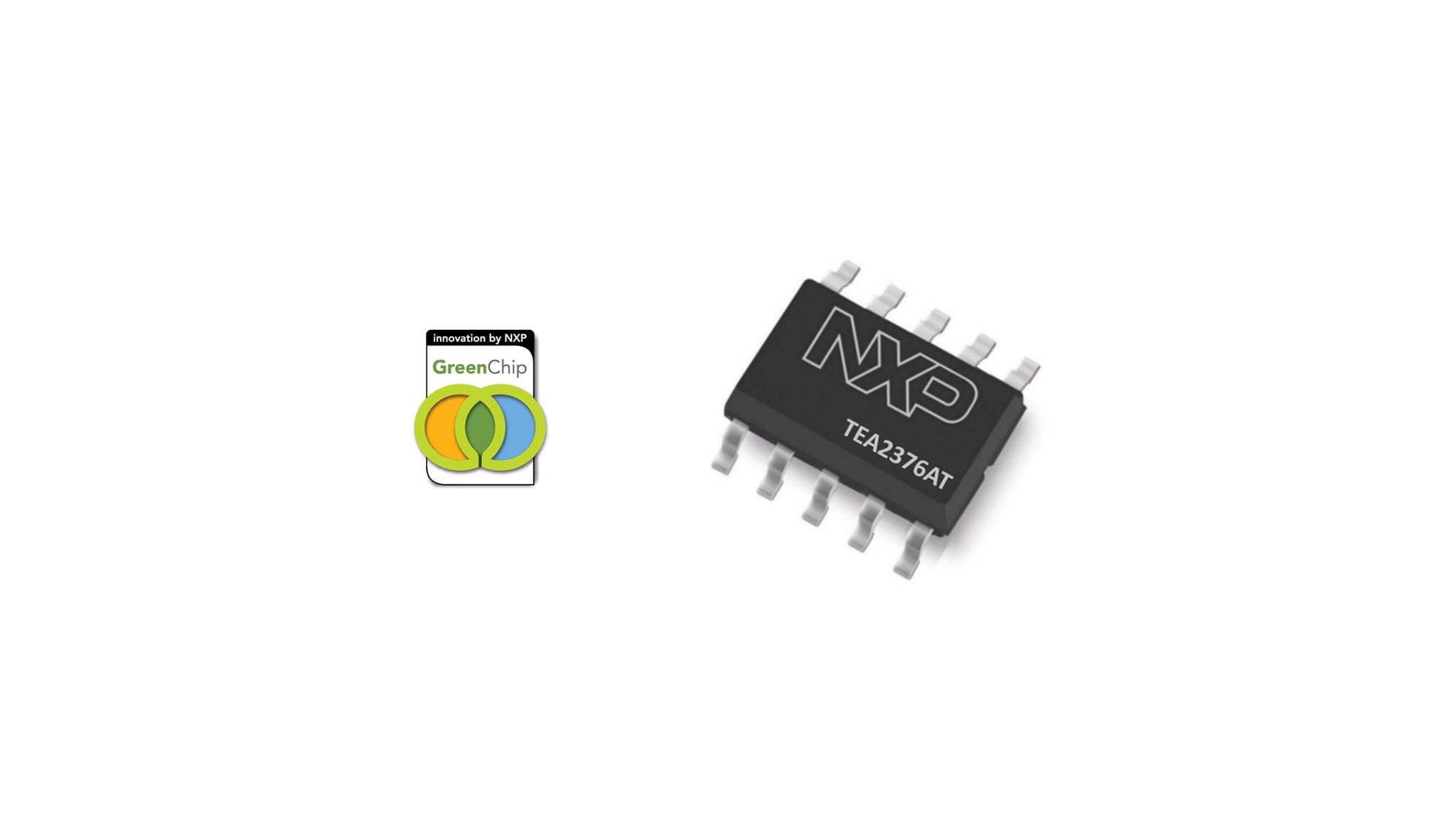

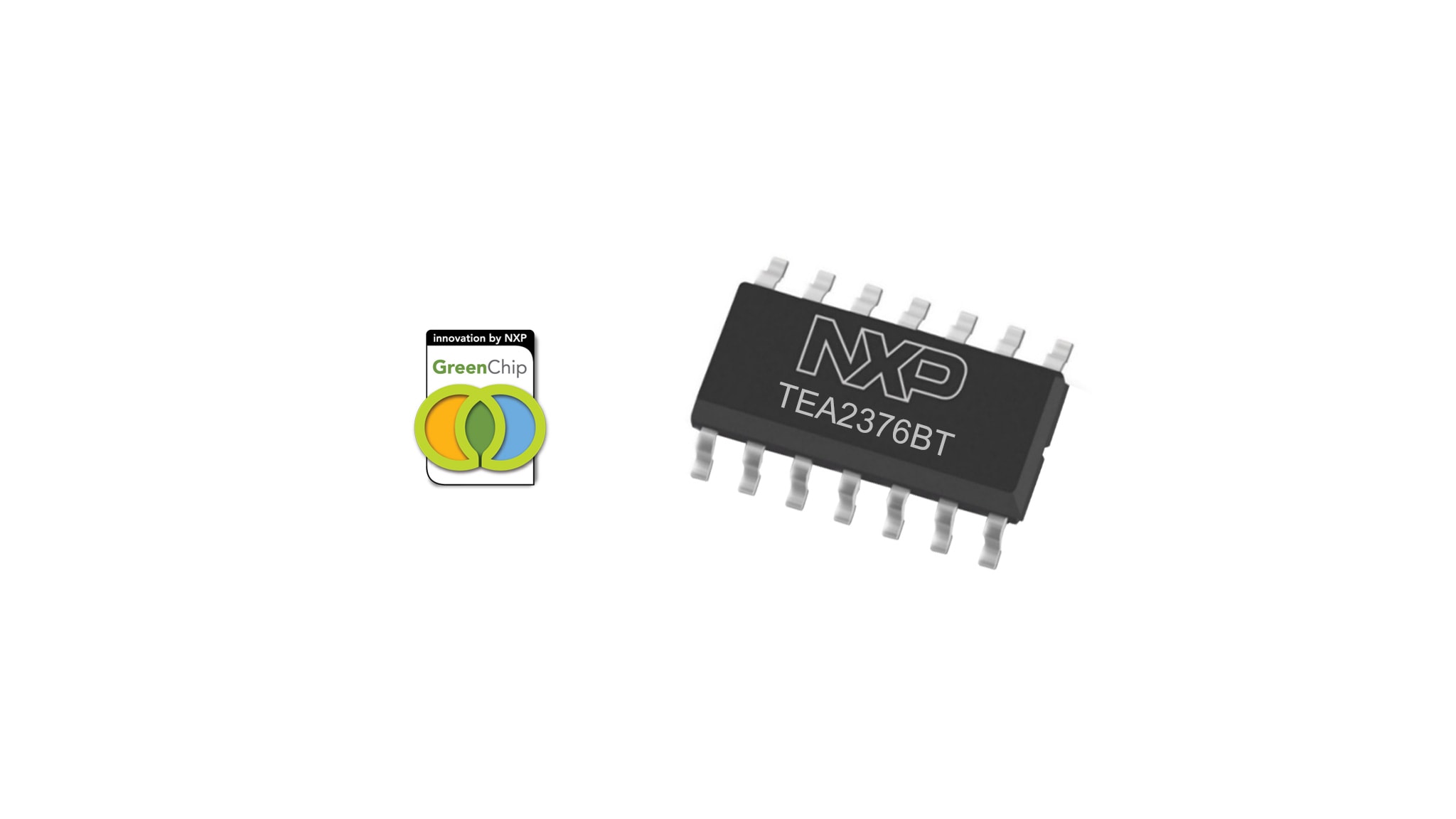

TEA2376xT, Digital Configurable Interleaved PFC Controllers
The TEA2376 is a digital configurable two-phase interleaved PFC controller for high-efficiency power supplies. The PFC operates in discontinuous conduction mode or quasi-resonant mode with valley switching to optimize efficiency.
The TEA2376 is suitable for TV, computing, server and industrial power supplies. For low-load operation with good efficiency, phase shedding and burst mode operation are included.
The TEA2376 supports a high power factor and a low THD and contains many protections which can be configured independently by a GUI.
The TEA2376 allows an easy to design, highly efficient, reliable interleaved PFC with a low external component count for power levels up to typically 1000 W.
Product Details
Block Diagram
Choose a diagram:
Features
Distinctive Features
- Programmable phase shedding and burst mode operation
- High PF and low THD
- Low audible noise
Green Features
- Valley/zero voltage switching for minimum switching losses
Protection Features
- Many programmable protections like Dual OVP, UVP, OTP, OCP, etc.
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The TEA2376 is included in the 10-year program
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-
Evaluation and Development BoardsTEA2376DK1011 Development Programming Board and Samples
-

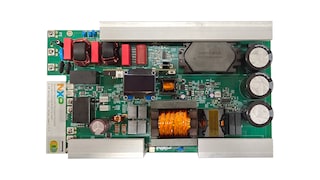

Evaluation and Development BoardsTEA2376DB1602 300W PFC Demo Board
