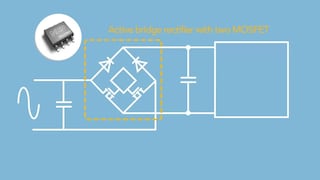

The TEA2206T is an active bridge rectifier controller for replacing the two low-side diodes in the traditional diode bridge with MOSFETs.
Using the TEA2206T with low-ohmic high-voltage external MOSFETs significantly improves the efficiency of the power converter as the typical rectifier-diode forward-conduction losses are reduced by 50 %. Efficiency can improve up to about 0.7 % at 90 V (AC) mains voltage.
The TEA2206T is fabricated in a silicon-on-insulator (SOI) process.
For additional information and sample availability, contact your local sales office.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Xcap discharge integrated | Bridge Mosfet Control | Enable / Disable external Mosfets |
|---|---|---|---|---|---|---|---|
Active | SO8 | 2 | Low side only | N |
