Full Wave Active Bridge Rectifier Controller
The TEA2208T, a controller IC for active bridge rectifiers, is the first product in our new generation of active bridge rectifier controllers replacing the traditional diode bridge.
This active bridge IC comes with high-current rail-to-rail MOS output drivers, minimizing power dissipation and gate charge losses to as low as 2mW combined.
Using the TEA2208T with low-ohmic high-voltage external MOSFETs significantly improves the efficiency of the power converter, as the typical rectifier diode-forward conduction losses are eliminated.
With the TEA2208T’s power MOSFET drain-source protection and minimum mains voltage feature, efficiency can improve up to about 1.4 % at 90 V (AC) mains voltage.
As a full wave rectifier, the TEA2208T is capable of driving four MOSFETs in an active bridge, which makes it perfect for power supplies with a boost-type power-factor controller as a first stage. For second stage application, the TEA2208T can be used as a flyback controller, resonant controller, or be applied in other controller topologies.
Additionally, this active bridge rectifier can be used in all highly efficient power supplies, such as adapters and PC power supplies.

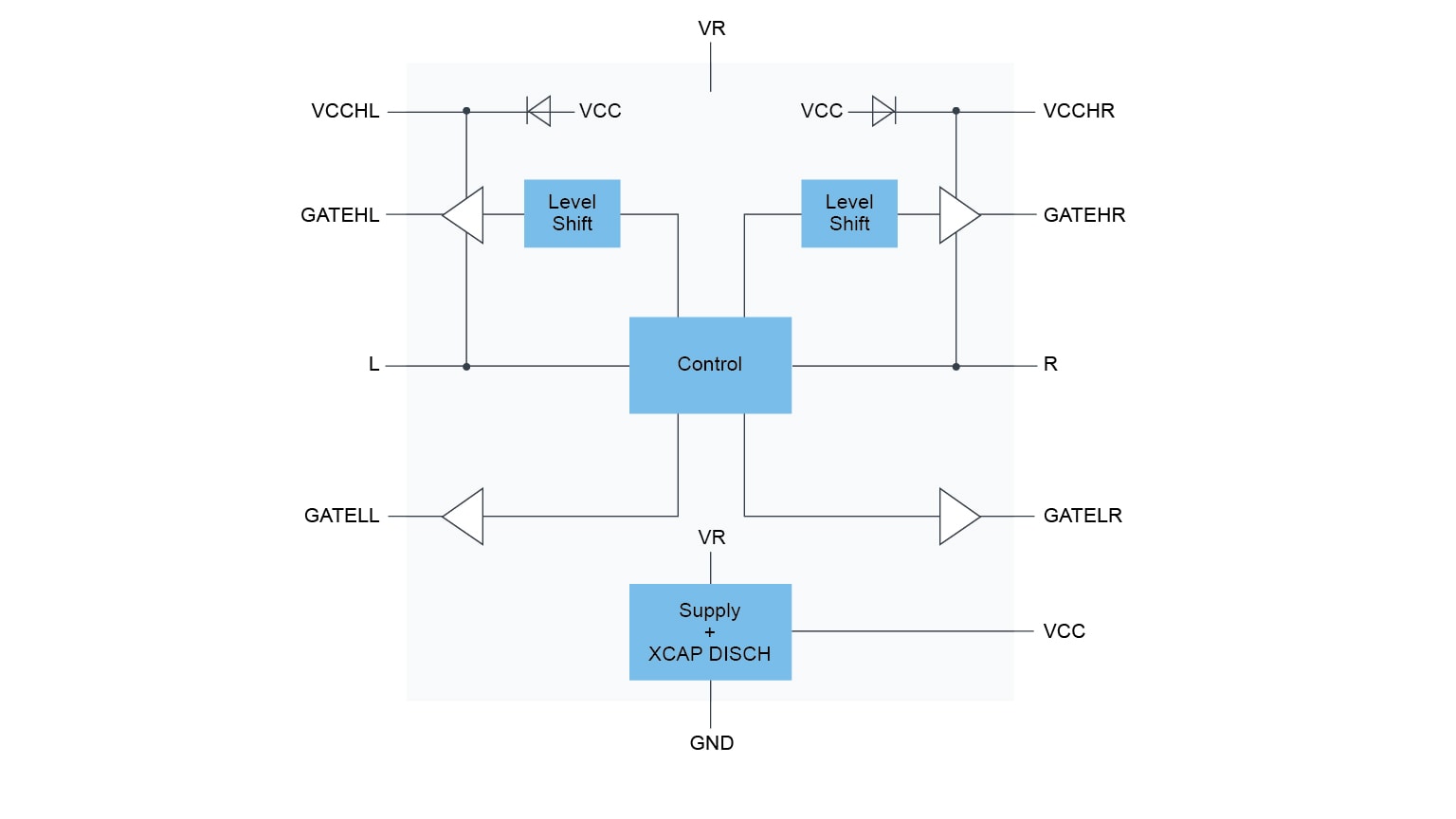

Product Details
Features
Efficiency Features
- Forward conduction losses of the diode rectifier bridge are eliminated
- Very low IC power consumption (2 mW)
Application Features
- Integrated high-voltage level shifters
- Directly drives all four rectifier MOSFETs
- Very low external part count
- Integrated X-capacitor discharge (2 mA)
- Self-supplying
- Full-wave drive improving total harmonic distortion (THD)
- S014 package
Control Features
- Undervoltage lockout (UVLO) for high-side and low-side drivers
- Drain-source overvoltage protection for all external power MOSFETs
- Gate pull-down currents at start-up for all external power MOSFETs
Product Longevity Program
- This product is included in the NXP Product Longevity program with assured supply for a minimum of 10 years after launch
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
Design Resources
Hardware
Quick reference to our
board types.
1 hardware offering
-

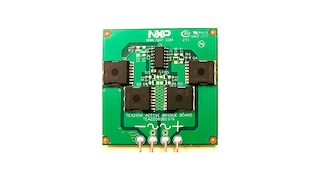

Evaluation and Development BoardsTEA2208T Active Bridge Rectifier Controller Demo Board
