HV Start-Up Resonant LLC+PFC Combo Controller with Integrated Burst Mode, EuP Lot 6 Compliant
The TEA1716 integrates a power factor corrector (PFC) controller and a controller for a half-bridge resonant converter (HBC) in a multi-chip IC. It provides the drive function for the discrete MOSFET in an up-converter and for the two discrete power MOSFETs in a resonant half-bridge configuration.
The integrated burst mode and power management functionality of TEA1716 enable resonant applications that meet the energy using product directive (EuP) lot 6 (< 0.5 W in standby mode). Highly efficient and reliable power supplies providing from 90 W to 500 W can be designed easily using the TEA1716, with a minimum of external components.
Outline 3d SOT137-1
Product Details

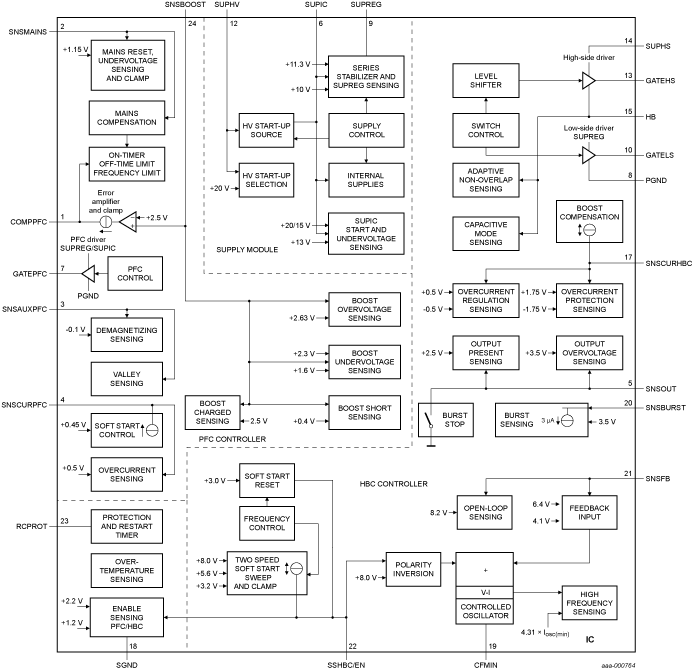

Block Diagram
Choose a diagram:
Features
Key Features
- Integrated PFC and HBC controllers
- Compliant with energy using product directive (EuP) lot 6
- Adaptive non-overlap time
- Capacitive mode protection for HBC controller
- On-chip high-voltage start-up source
- Stand-alone operation or IC supplied from external DC source
- Boundary mode operation with on-time control
- Universal mains supply operation (70 V to 276 V (AC))
- Valley/zero voltage switching for minimum switching losses
- Frequency limiting to reduce switching losses
- Burst mode switching with soft start and soft stop
- Integrated high-voltage level shifter
- Adjustable minimum and maximum frequency
- Safe restart mode for system fault conditions
- Overtemperature protection
- Undervoltage protection for mains (brownout), boost, IC supply
- Overcurrent regulation and protection for both controllers
- Accurate overvoltage protection for boost voltage
- Integrated burst mode sensing
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 6 documents
-
Data Sheet
Resonant power supply control IC with PFC
-
Application Note
TEA1716 resonant power supply control IC with PFC
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-
Evaluation and Development Boards240 W Computing Power Supply
-

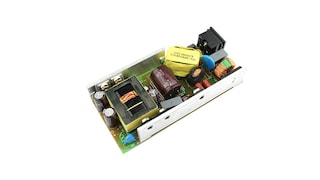

Evaluation and Development BoardsTEA1716 90 W / 19.5 V Resonant LLC + PFC Combo Controller Demo Board
