The LS2 family of processors delivers unprecedented performance and integration for tomorrow's smarter, more capable networks. The eight-core LS2084A and the four-core LS2044A multicore processors offer Arm^® Cortex^®- A72 cores with the advanced, high-performance datapath and network peripheral interfaces required for networking, telecom/datacom, wireless infrastructure, military, aerospace and automotive applications.

The next-generation datapath architecture, combined with a powerful software toolkit, provides a higher level of hardware abstraction and makes software development quick and simple.

This combination balances ease-of-use with high-performance processing in a Linux^® environment that is familiar to any software programmer. Customers can fully exploit the underlying hardware and easily adapt to network changes for real-time 'soft' control over the network.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

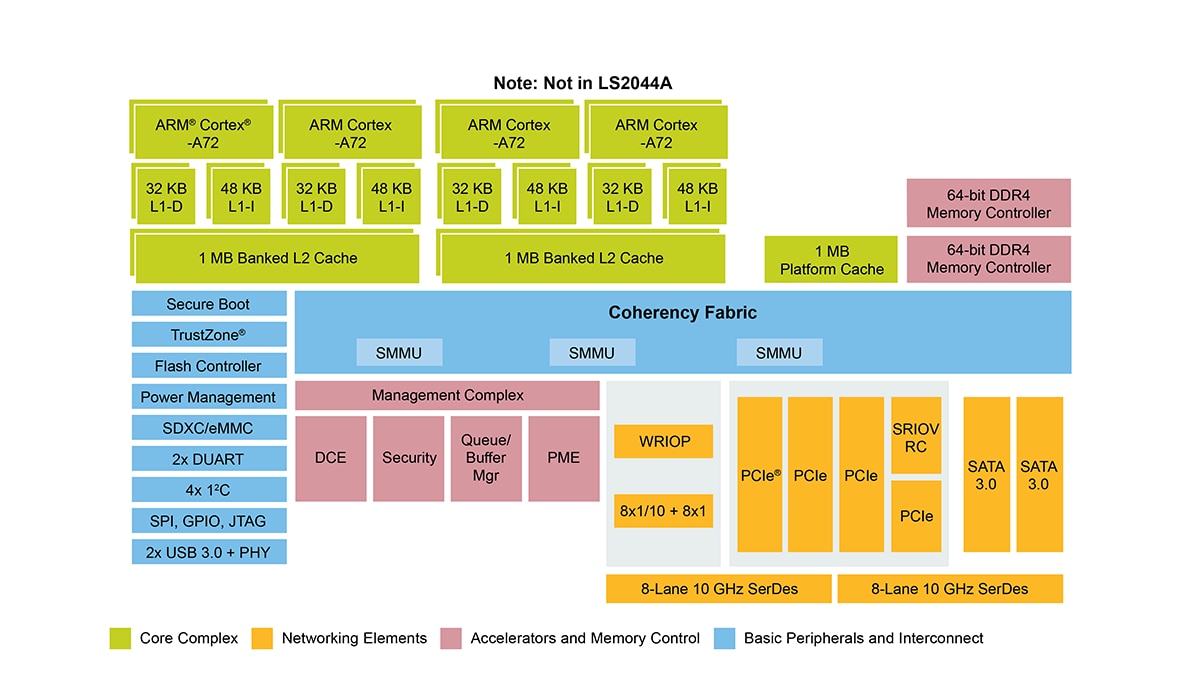

LS2084A Processor Block Diagram

Get diagram PDF

Features

Core Complex

Eight 64-bit Arm Cortex-A72 CPUs
- Up to 2 GHz,
- Clusters of two cores sharing 1 MB L2 cache
1 MB L3 platform cache
Two 64-bit DDR4 SDRAM memory controllers
- ECC and interleaving support,
- Up to 2.1 GT/s

Networking Elements

Wire Rate I/O processor, featuring:
- 8x 10 GbE
- 8x 1 GbE
- L2 switching on the Ethernet interface
- XAUI/XFI/KR and SGMII
- MACSec on up to four 1/10 GbE
2x SATA 3.0
4x PCIe Gen 3 controllers
SR-IOV support, Root Complex

Accelerators and Memory Control

20 Gb/s SEC crypto acceleration
10 Gb/s Pattern Matching Engine
20 Gb/s Data Compression Engine
4 PCIe controllers (Gen3) supporting 1x8, 4x4, 4x2, 4x1 lane configurations

Basic Peripherals and Interconnect

Support for hardware virtualization and partitioning enforcement
Implements trust architecture combined with TrustZone^®
- Service processor (SP) provides pre-boot initialization and secure-boot capabilities
2x USB 3.0 with PHY
Enhanced secure digital host controller
Serial peripheral interface (SPI) controller
Quad Serial peripheral interface (QSPI) controller
Four I²C controllers
Two DUARTs
Integrated flash controller (IFC 2.0) supporting NAND and NOR flash

Part Show description	Silicon Rev	Family	Status	Development Tools	Qualification tier	Budgetary Price excluding tax	Package Termination Count	Package Type	Package Pitch (mm)	Core Type	Core: Number of cores (SPEC)	Operating Frequency [Max] (MHz)	Typical Power	Cache (KB)	L1 Cache (KB)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	DRAM frequency (max)(MHz)	SPI	QSPI	UART	I²C	USB Controllers	Ethernet Ports	Ethernet Type	PCIe	PCIe version	SATA	Encryption	Watchdog timer	Timers	Debug & Trace	Ambient Operating Temperature (Min to Max) (℃)	Junction Temperature (Min to Max) (℃)
LS2044ASE711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$254.10	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	—	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	0 to 105
LS2044ASE7QQB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$220.87	1292	BGA1292	1.0	Arm Cortex-A72	4	1600	—	32, 48	32, 48	2048	128	DDR4 SDRAM	1600	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	0 to 105
LS2044ASE7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$195.46	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	19.4	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	0 to 105
LS2044ASE7V1B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$242.95	1292	BGA1292	1.0	Arm Cortex-A72	4	2000	25.4	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	0 to 105
LS2044ASN711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$249.11	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	25.8	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	—	0 to 105
LS2044ASN7QQB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$216.54	1292	BGA1292	1.0	Arm Cortex-A72	4	1600	17.2	32, 48	32, 48	2048	128	DDR4 SDRAM	1600	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	—	0 to 105
LS2044ASN7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$191.63	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	19.4	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	—	0 to 105
LS2044ASN7V1B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$238.19	1292	BGA1292	1.0	Arm Cortex-A72	4	2000	25.4	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	—	0 to 105
LS2044AXE711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$284.59	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	25.8	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	-40 to 105
LS2044AXE7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$218.91	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	17.2	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	—	-40 to 105
