Layerscape® 1024A Dual-Core Processor

NXP Priority Support: Helping You to Get to Market Faster

Click over video to play

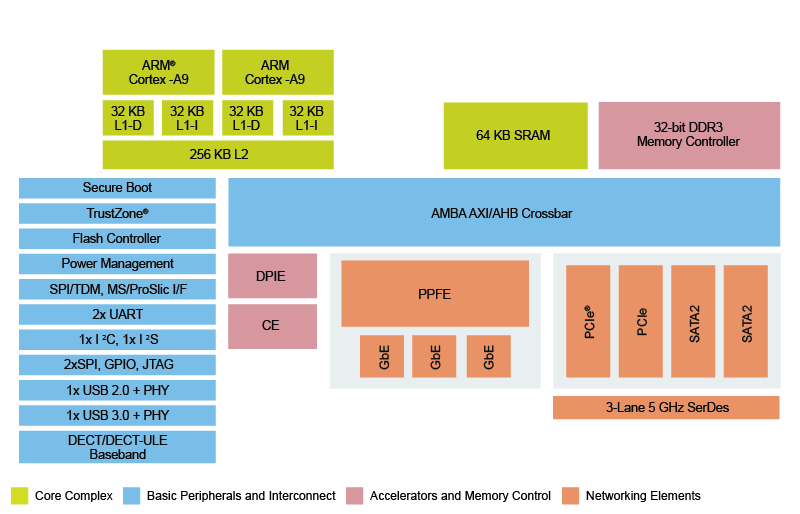

Block Diagram

Layerscape 1024A Dual-Core Communications Processor

Layerscape 1024A Dual-Core Communications Processor

Features

Core Complex

  • Single or dual Arm Cortex-A9 SMP/AMP 32-bit cores, with NEON DSP and FPU, up to 1.2 GHz
  • 32 KB instruction and data caches
  • 256 KB shared L2 cache

Networking Elements

  • Three Gigabit Ethernet controllers supporting 3x RGMII or 2x RMII and 1x SGMII
  • Twin PCIe Gen2 controllers
  • Two SATA2 controllers with RAID 0/1/5
  • SerDes 3 lanes at up to 5 GHz
  • USB3.0 controller with PHY

Accelerators and Memory Control

  • DDR memory controller supports DDR3 at up to 1066 MHz
    • 16-bit, 32-bit memory supported
  • Packet Processing and Forwarding Engine (PPFE)
    • Delivers 2Gbps of PPPoE/NAT routing with 64B packets
    • HW QoS compliant to HGI2.0 on all data interfaces
    • TCP offload engine
  • Security engine
    • Full IPSec offload including SNOW and Kasumi
    • Full SSL offload
  • Deep Packet Inspection Engine
    • Antivirus
    • Application-specific QoS
    • Advanced Diagnostics
  • Telephony Functions
    • DECT baseband CAT-iq 2.0 compliant, upgradeable to 2.1 and 3.0
    • TDM support for wideband voice

Basic Peripherals and Interconnect

  • AMBA AXI/AHB crossbar
  • Integrated Flash controller
  • USB2.0 controller with PHY supporting OTG, Host and Device modes
  • 1x I²C
  • 2x SPI
  • 2x UART
  • 1x I2S
  • TDM

More

Comparison Table

LS1024A
Cores 2x Arm Cortex-A9
Top Core Frequency 1.2 GHz
L2 Size 256 KB
DDR 2/3 Support 16/32-bit
GE Ports 3
Serdes 3
PCI Express Controllers 2
SATA-2 Ports 2
USB Ports 1x USB2.0
1x USB3.0
Accelerators SE, PPFE, DPIE, DECT

Buy/Parametrics

6 results

Exclude 6 NRND

Order

CAD Model

Silicon Rev

Family

Status

Development Tools

Qualification tier

Budgetary Price excluding tax

Package Termination Count

Package Type

Package Pitch (mm)

Core Type

Core: Number of cores (SPEC)

Operating Frequency [Max] (MHz)

Typical Power

Cache (KB)

L1 Cache (KB)

L2 Cache (Max) (KB)

SRAM (kB)

External Memory Supported

DRAM frequency (max)(MHz)

Serial Audio Interface (SAI)

I2S

SPI

UART

I2C

USB Controllers

Ethernet Ports

Ethernet Type

PCIe

PCIe version

SATA

Encryption

Watchdog timer

Timers

Debug & Trace

Ambient Operating Temperature (Min to Max) (℃)

Junction Temperature (Min to Max) (℃)

Rev 1

QorIQ LS1024A

End of Life

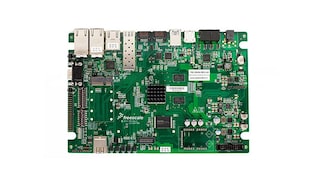

LS1024A-RDB

Industrial

100 @ US$30.04

625

FBGA625

0.8

Arm Cortex-A9

2

650

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

Y

Y

6

JTAG

0 to 70

0 to 105

Rev 1

QorIQ LS1024A

End of Life

LS1024A-RDB

Industrial

100 @ US$38.93

625

FBGA625

0.8

Arm Cortex-A9

2

900

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

Y

Y

6

JTAG

0 to 70

0 to 105

Rev 1

QorIQ LS1024A

End of Life

LS1024A-RDB

Industrial

100 @ US$42.31

625

FBGA625

0.8

Arm Cortex-A9

2

1200

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

Y

Y

6

JTAG

0 to 70

0 to 105

Rev 1

QorIQ LS1024A

End of Life

LS1024A-RDB

Industrial

100 @ US$29.17

625

FBGA625

0.8

Arm Cortex-A9

2

650

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

N

Y

6

JTAG

0 to 70

0 to 105

Rev 1

QorIQ LS1024A

End of Life

LS1024A-RDB

Industrial

100 @ US$32.10

625

FBGA625

0.8

Arm Cortex-A9

2

900

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

N

Y

6

JTAG

0 to 70

0 to 105

Rev 1

QorIQ LS1024A

End of Life

LS1024A-RDB

Industrial

100 @ US$40.13

625

FBGA625

0.8

Arm Cortex-A9

2

1200

3

32

32

256

64

DDR3 SDRAM

1066

1

1

2

2

1

2

3

1G

2

PCIe 2.0

2 x SATA 3.0

N

Y

6

JTAG

0 to 70

0 to 105
