ASL45XASLX41 Evaluation Board

ASL45XASLX41
Active

Roll over image to zoom in

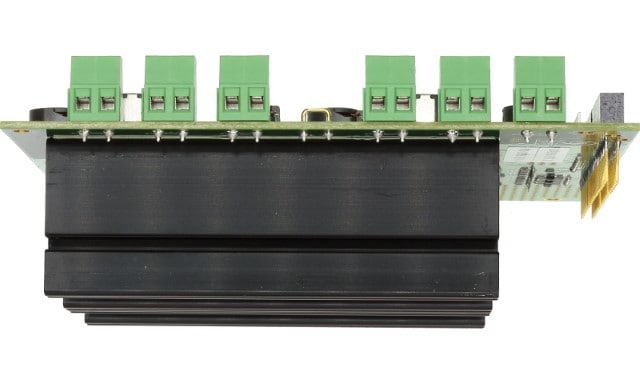

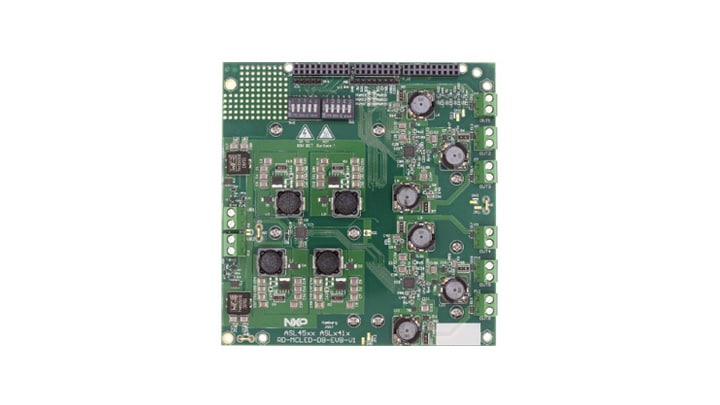

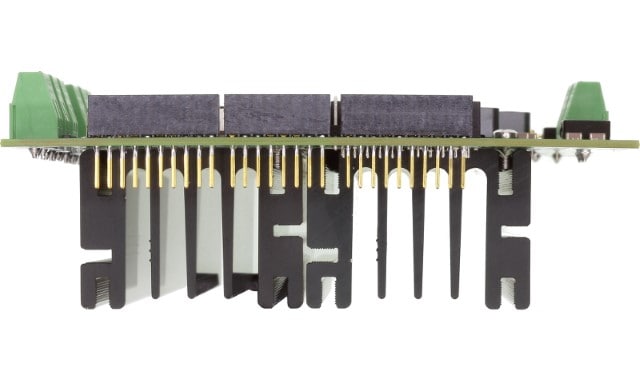

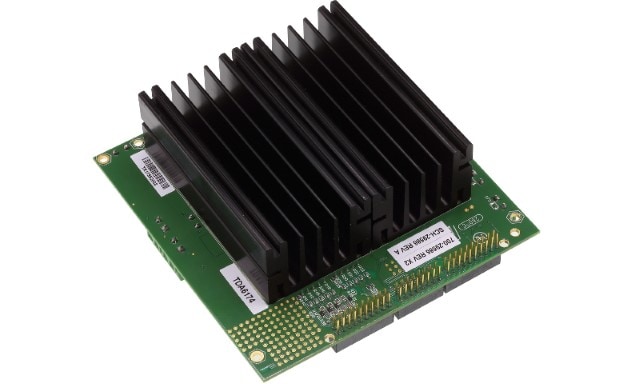

The ASLx500SHN and ASLx41xSHN Evaluation Board (EVB) features the ASL4500SHN, a highly integrated and flexible four-phase DC-to-DC boost converter IC and two ASL3416SHN, a three-channel buck mode LED driver IC delivering constant average DC current. The kit is designed to drive six LED strings with 150 mA to 1.6 A and 2 V to 60 V LED string voltage. In a default application a microprocessor unit (MCU) controls the devices through a serial peripheral interface (SPI).

Supported Devices

Power Management

Automotive Lighting LED Driver ICs

  • ASL341ySHN: Three-Channel Automotive LED Buck Driver
  • ASL241ySHN: Two-Channel Automotive LED Buck Driver
  • ASL250ySHN: Two-Phase Automotive LED Boost Driver with a Limp Home Mode
  • ASL4500SHN: Four-Phase Automotive LED Boost Driver
  • ASL150ySHN: Single-Phase Automotive LED Boost Driver with Limp Home Mode

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

General Specifications

  • Control of ASL4500SHN boost converters
  • Control of two ASL3416SHN buck converters
  • Option to control any NXP ASL boost or buck converter

Connectivity

  • Interface connector to the S32K144EVB
  • Connectors for 2 input voltages and 6 LED outputs

User Components

  • Status LEDs to report the status of the connected supplies

Buy Options

ASL45XASLX41-Image

Click to expand

  • ASL45XASLX41
    Active

  • ASL45XASLX41 Evaluation Board.

  • Only the ASL45XASLX41 board

    For operation of the ASL45XASLX41 KIT, an S32K board is recommended

  • $405.88 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
