Freedom Evaluation Board for XS2410 - Quad High Side 100 mOhm with Smart Features and Diagnostics

FRDM-XS2410EVB

Roll over image to zoom in

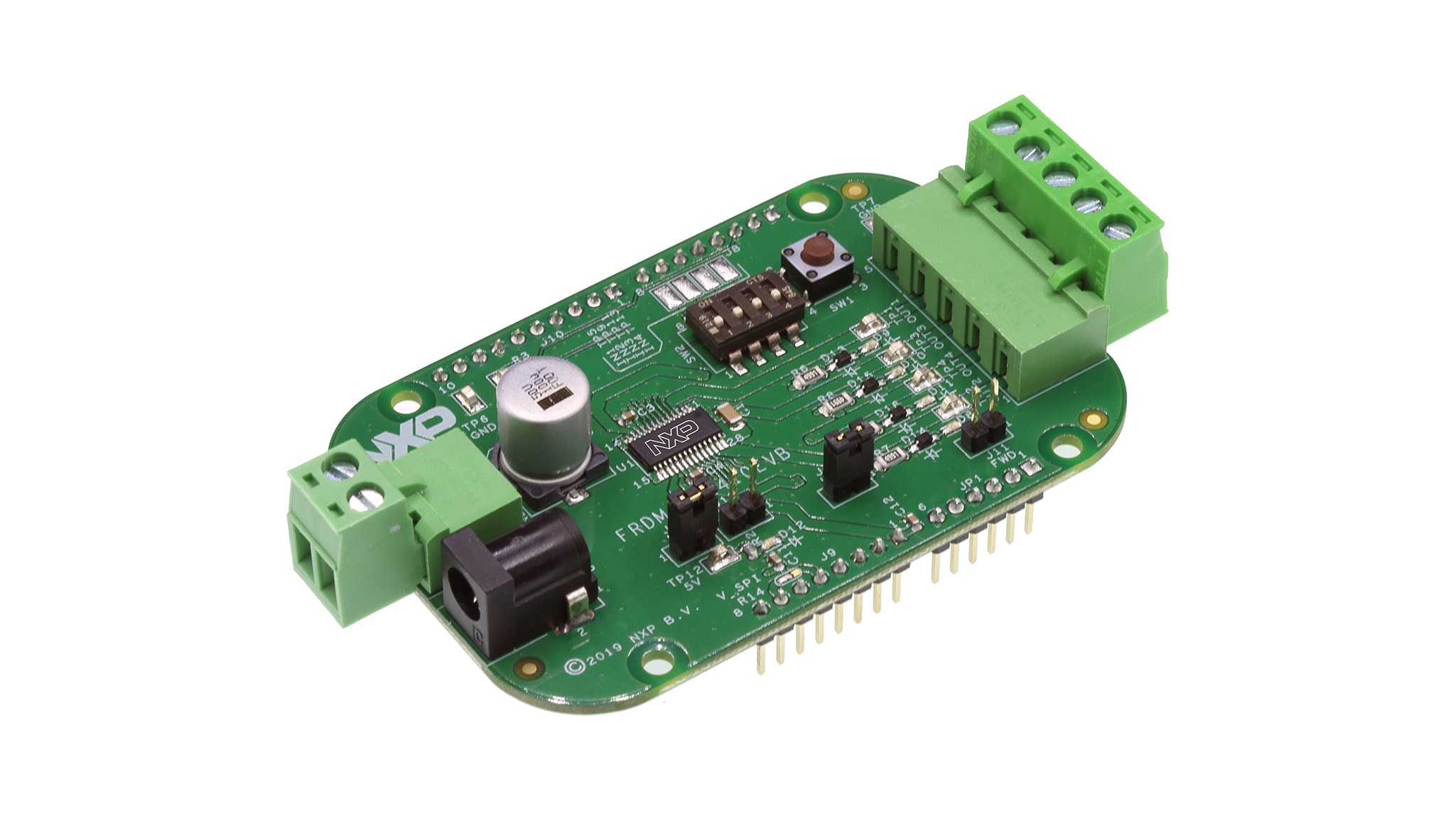

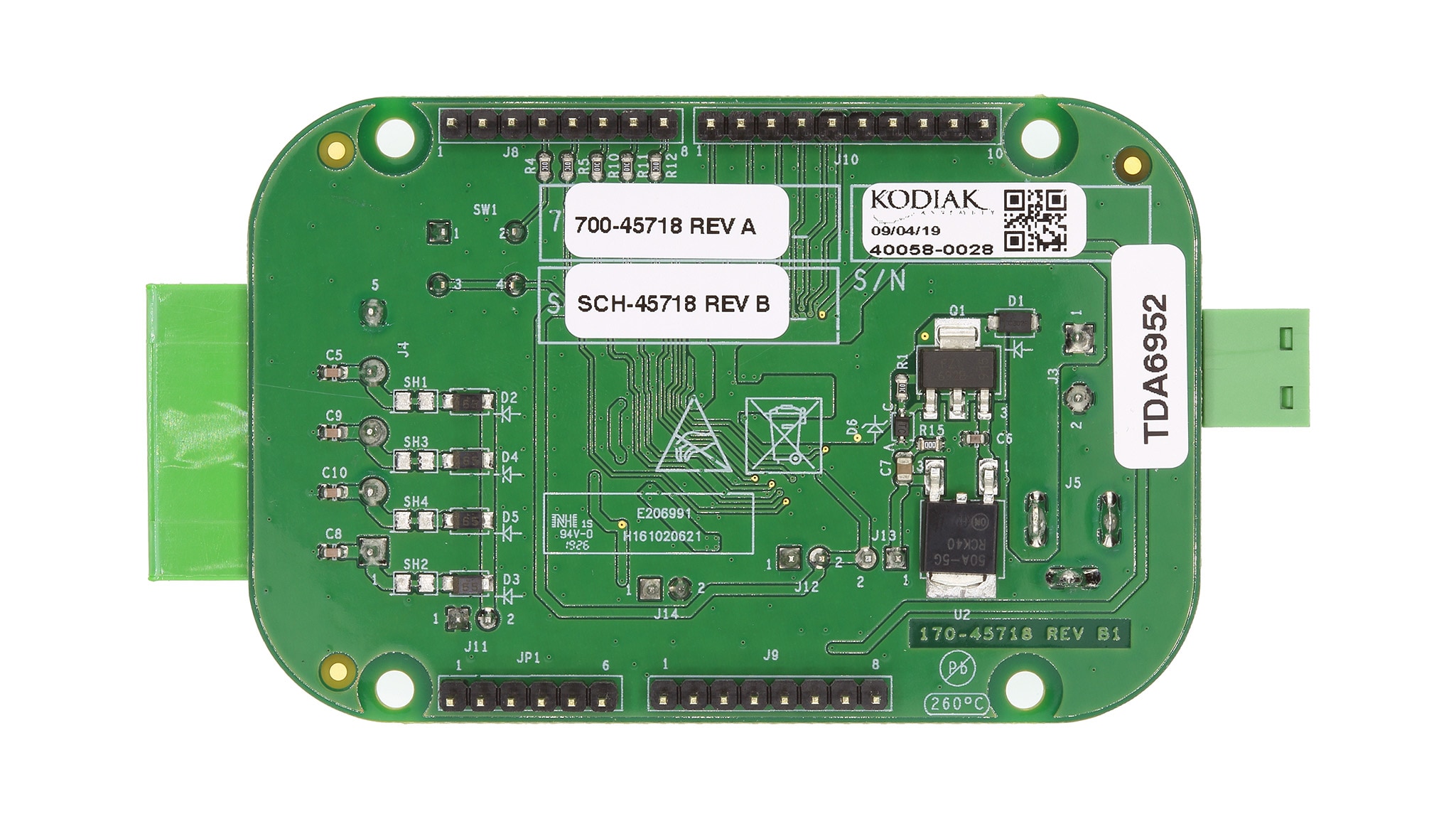

The FRDM-XS2410EVB Freedom board is a low cost and easy to use evaluation board that allows the user to exercise all the functions of the embedded XS2410. The XS2410 is a smart high-side switch device with four outputs fully protected and configurable allowing to provide continuous currents of 2 A per output. The FRDM-XS2410EVB also embeds power connectors and specific headers for compatibility with FRDM-KL25Z, S32K144EVB, and Arduino® that allows the user to control up to 4 different loads of any type.

This evaluation board goes along with a FLEXGUI software for friendly evaluation or software drivers and sample codes to ease the development.

Product Details

Supported Devices

Power Management

High Side Switches

  • XS2410: Quad 100 mΩ / Dual 50 mΩ, 3.0 V to 60 V High-Side Switch

Features

MC33XS2410

  • Four high-side channels
  • 3.0 V to 60 V operating voltage
  • 16 bits SPI control up to 10 MHz
  • Internal clock for PWM up to 1 kHz
  • PI PWM closed loop current regulation
  • Embedded A-to-D for I/V/T monitoring

FRDM-XS2410EVB

  • Two power supply inputs up to 60 V
  • Four protected outputs up to 2 A|DC per channel
  • Header for connection to KL25z or S32K144 MCUs
  • LEDs for output status, VDD or fault status
  • Direct input control through DIP switches

Arduino R3

  • Easy access to MCU input/output through Aruino R3 compatible IO connectors

Software Support and Application Development

  • MCUXpressor SDK
  • MCUXpressor IDE
  • S32K design studio
  • FLEXGUI

Buy Options

FRDM-XS2410EVB-Image

Click to expand

  • FRDM-XS2410EVB
    Active

  • Freedom Evaluation Board for XS2410 - Quad High Side 100 mOhm with Smart Features and Diagnostics.

  • The FRDM-XS2410EVB contents include:

    • Assembled and tested FRDM-XS2410EVB board in an anti-static bag
    • Power connector 2x1 for power supply
    • Power connector 5x1 for outputs and ground
    • Jumpers mounted on board
    • Quick start guide
  • $73.14 USD
  • For a quantity of 1
    • Availability: Pending Stock
