MPC563xM Device and Target Adapters

MPC563xMVBBOARDS Active

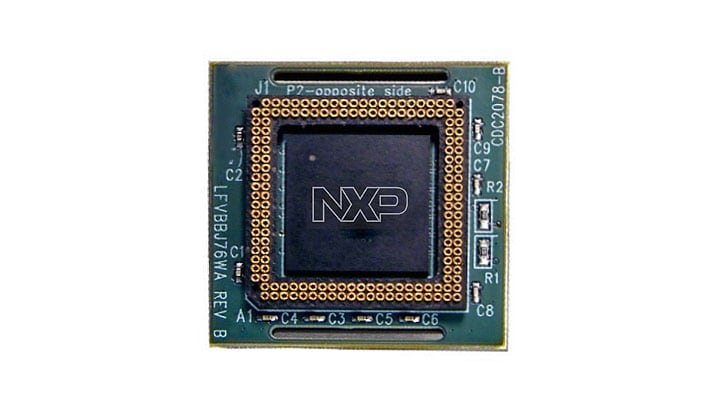

Roll over image to zoom in

The VertiCal system enables the use of enhanced calibration and debugging tools for industrial and automotive applications, supporting a wide range of MPC5554 MCUs in different package types.

Based on Power Architecture®, the VertiCal offers production footprints and a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC563xM: Ultra-Reliable MPC563xM for Automotive and Industrial Engine Management

Features

  • VertiCal system compatible
  • Standardized hardware across MPC563 MCUs (using production silicon)
  • Up to 422 pins
  • Pitch 1.00 mm
  • Allows system calibration without impacting standard MCU I/O resources
  • Interconnect standard supported by multiple calibration tool developers
  • Support for simplified implementation of overlay memory
  • Flexibility to support new MCU features for prototyping use
  • Uses tried and tested technology

Buy Options

LFVBBJ34QA-Image

Click to expand

  • LFVBBJ34QA
    Active

  • Qorivva MPC5634M 208 PIN 1.0MM PGA Vertical Calibration base board.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFVBBJ34M2T-Image

Click to expand

  • LFVBBJ34M2T
    Active

  • Qorivva MCSP5634M 176 Pin Vertical Calibration base board with TQSocket.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFVBBJ34LT-Image

Click to expand

  • LFVBBJ34LT
    Active

  • Qorivva MPC5634M 144 pin 0.5 mm pitch Vertical Calibration base board with TQSocket.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFVBBJ33LT-Image

Click to expand

  • LFVBBJ33LT
    Active

  • Qorivva MPC5633M 144 pin 0.5 mm pitch Vertical Calibration base board with TQSocket.

  • Kit Contains:

    • Extraction Tool
    • Bill of Materials
    • Packing List
  • $420.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
