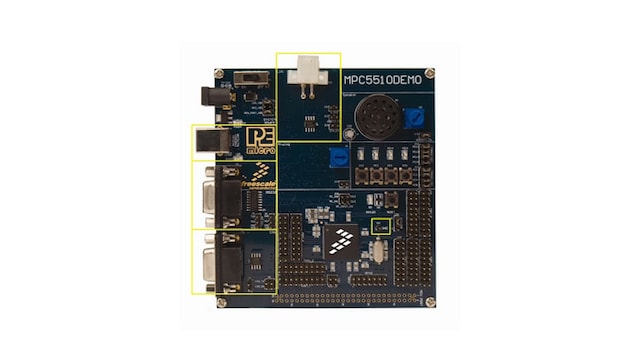

The MPC5510DEMO is a low-cost development system supporting NXP^® MPC5516G microcontrollers. The Embedded Multilink circuitry on the MPC5510DEMO board allows the processor on the MPC5510DEMO to be debugged and programmed via USB from a PC. In addition, the demo board can be powered using the USB bus.

Design Files

Product Details

Features

Connectivity

LIN interface with connector
RS-232 interface
On-board USB to JTAG
GND pin to connect oscilloscope probe
On-board USB to JTAG
CAN Module with high-speed interface

Buy Options

Click to expand

MPC5510DEMO
Development Board for Qorivva MPC5510, CAN, LIN, USB to JTAG.

$169.15 USD
For a quantity of 1

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
