MPC5606E Vehicle Networking Evaluation Board

MPC5606EEVB
Active

Roll over image to zoom in

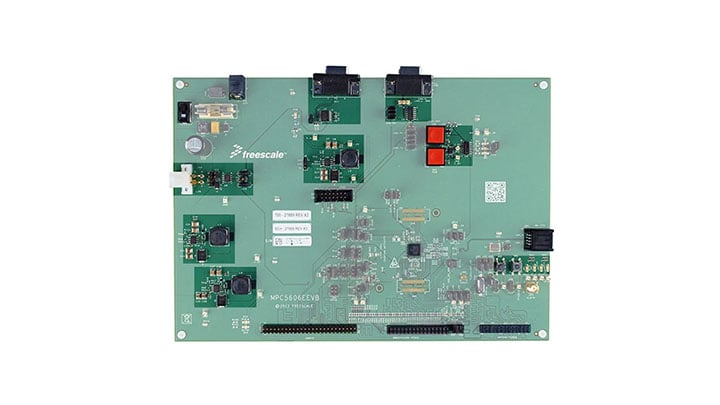

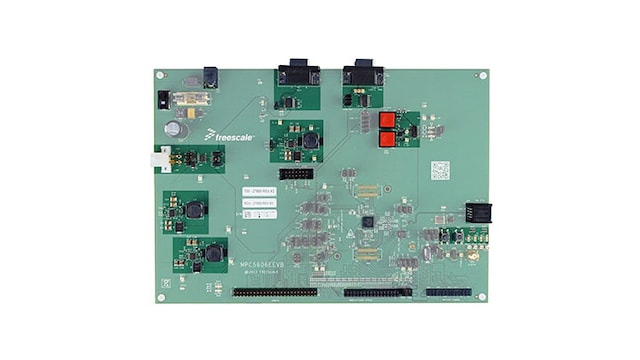

The NXP® MPC5606E MCU is built on Power Architecture® technology and is a gateway system designed to move data from different sources via Ethernet. The MPC5606E evaluation board is designed for Automotive ADAS applications.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xE: Ultra-Reliable 32-bit MCU for Automotive ADAS and Industrial Ethernet Applications

Features

Connectivity

  • Standard 14-pin ONCE JTAG debug connector
  • Video encoder wrapper connected to the Omnivision and Aptina connectors supports Omnivision camera evaluation boards
  • FlexCAN channel routed to the prototyping area with DB9 connectors to allow an additional CAN physical interface to be easily integrated
  • LINFLEX Molex Connector and 0.1" 4-pin header available

Power Management

  • A 12 V DC power supply input barrel connector

Audio

  • Serial audio interface
  • Includes a BCM89810 BroadR-Reach® compatible physical layer

Buy Options

MPC5606EEVB-Image

Click to expand

  • MPC5606EEVB
    Active

  • Caspian EVB MPC5606EEVB.

    • MPC5606EEVB board
    • NXP Warranty Card
  • For a quantity of 1
