Evaluation Kit for NXP’s MPC5510 Family

MPC5510KIT Active

Roll over image to zoom in

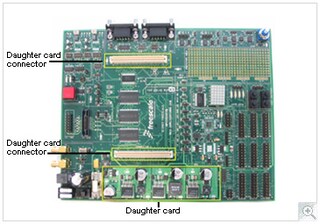

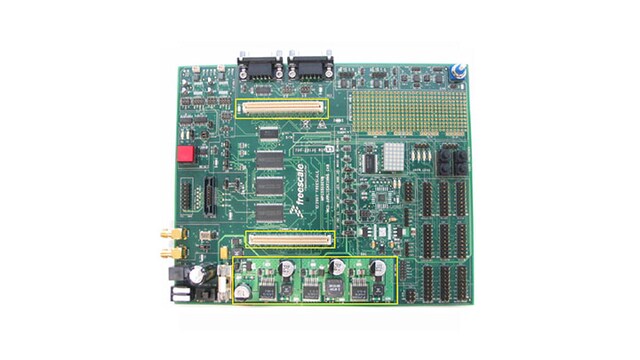

The MPC5510KIT is an evaluation system supporting NXP® MPC5510 microcontrollers. It consists of an evaluation board MPC5510EVB and daughter cards for either 144LQFP or 208MAPBGA versions which plug into the evaluation board.  The evaluation system allows full debug access to the MCU through a Nexus connector. The kit comes with 2 samples of the respective package, an install CD, a permanent CodeWarrior® compiler license, a P&E MULTILINK hardware interface and ICDPPCNEXUS in-circuit debugger. The software licenses are limited to 128KB code size.

Product Details

Supported Devices

Processors and Microcontrollers

MPC55xx MCUs

  • MPC5510: 32-bit MCU for Body Electronics Applications

Features

MPC5510ADAP Daughter Cards:

  • MPC5510ADAP208 socketed adapter to program and debug 208MAPBGA devices
  • MPC5510ADAP144 socketed adapter to program and debug 144 LQFP devices

MPC5510EVB Mother Board:

  • 14-pin JTAG/ONCE connector
  • 38-pin MICTOR Nexus 2+ connector
  • External 256KByte of asynchronous SRAM
  • High-speed CAN transceiver
  • LIN transceiver
  • FlexRay transceiver
  • 5x7 LED dot matrix
  • 12-14 V power supply
  • NXP® SBC to power the MCU

Buy Options

MPC5510KIT208-Image

Click to expand

  • MPC5510KIT208
    Active

  • Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP208 daughter card.

  • For a quantity of 1
Order from distributors
MPC5510KIT144-Image

Click to expand

  • MPC5510KIT144
    Active

  • Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP144 daughter card.

  • For a quantity of 1
Order from distributors
MPC5510ADAP208-Image

Click to expand

    MPC5510ADAP176-Image

    Click to expand

    • For a quantity of 1
    MPC5510ADAP144-Image

    Click to expand
