MPC5604E General Purpose Evaluation Board

MPC5604EEVB64 Active

Roll over image to zoom in

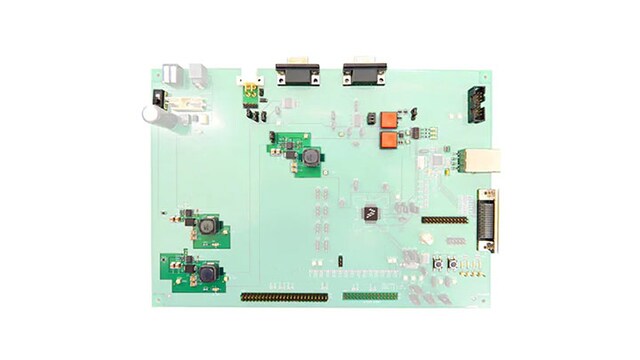

The NXP® MPC5604E Evaluation Board for automotive safety and chassis control applications contains P&E debugger and all power supply cables.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xE: Ultra-Reliable 32-bit MCU for Automotive ADAS and Industrial Ethernet Applications

Features

Connectivity

  • Onboard ethernet physical interface + MII lite connector
  • FlexCAN channel routed to the prototyping area with DB9 connectors to allow additions CAN physical interface to be easily integrated
  • LINFLEX Molex Connector and 0.1" 4-pin header are available

Power Management

  • A 12 VDC power supply input barrel connector

Debug

  • Standard 14-pin ONCE JTAG debug connector

Audio

  • Serial Audio Interface connected to the Audio connector supporting NXP® Sahara SGTL5000 daughter card
  • Video Encoder Wrapper connected to Omnivision connector supporting Omnivision camera evaluation boards

Buy Options

MPC5604EEVB64-Image

Click to expand

  • MPC5604EEVB64
    Active

  • Evaluation Kit for Qorivva MPC5604E, Ethernet, MII, video and audio connectors, CAN, LIN.

    • MPC5604EEVB Board
    • P&E Debugger and all power supply cables
    • 10 Shunts
    • 20 zero ohms resistors for future reconfiguration
    • CD: P&E Power Architecture® NEXUS driver and resource CD
    • Documentation
    • NXP Warranty Card
  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFTAJ56EE2T-Image

Click to expand

  • LFTAJ56EE2T
    Active

  • 64 Pin target adapter for Qorivva MPC5604E.

  • $160.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 TSPMPC5604EEVB64en 3 Supporting Information Supporting Information t531 2 User Guide User Guide t792 1 en_US 1 1 0 English The MPC5604EEVB64 Evaluation Board (EVB) is
based on the e200z0 Power Architecture®. This board is shipped with the PPC5604EEMLH 64-pin LQFP MCU populated to allow the evaluation of the full functionality of this part. 1318500737841712455929 TSP 1.9 MB None None documents Y None 1318500737841712455929 /docs/en/user-guide/MPC5604EEVB64UM.pdf 1850697 /docs/en/user-guide/MPC5604EEVB64UM.pdf MPC5604EEVB64UM N N 2011-10-13 MPC5604EEVB64 Evaluation board User Manual /docs/en/user-guide/MPC5604EEVB64UM.pdf /docs/en/user-guide/MPC5604EEVB64UM.pdf User Guide N Y 132339537837198660 2023-06-18 pdf N en Oct 12, 2011 User Guide t792 User Guide User Guide Y N MPC5604EEVB64 Evaluation board User Manual false en_US 0 false en Supporting Information Supporting Information 2 2 1 English 3D User Interactive PDF of LFTAJ56EE2T. LQFP Target Adapter Board for MPC5600E Family 64 Pin. 1336764468411709853417 TSP 368.5 KB None None documents None 1336764468411709853417 /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf 368453 /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf LFTAJ56EE2T-LAYOUT documents N N 2012-05-14 LFTAJ56EE2T 2D Mechanical Drawing /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf Supporting Information N 371282830530968666 2023-06-19 pdf N en May 11, 2012 371282830530968666 Supporting Information N N LFTAJ56EE2T 2D Mechanical Drawing 3 1 English 3D User Interactive PDF of LFTAJ56EE2T. LQFP Target Adapter Board for MPC5600E Family 64 Pin. 1336764467830716899443 TSP 721.0 KB None None documents None 1336764467830716899443 /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf 720953 /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf LFTAJ56EE2T-INTERACTIVE documents N N 2012-05-14 LFTAJ56EE2T 3D User Interactive PDF /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf Supporting Information N 371282830530968666 2023-06-19 pdf N en May 11, 2012 371282830530968666 Supporting Information N N LFTAJ56EE2T 3D User Interactive PDF false 0 MPC5604EEVB64 downloads en true 0 Y TSP Supporting Information 2 /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf 2012-05-14 1336764468411709853417 TSP 2 May 11, 2012 Supporting Information 3D User Interactive PDF of LFTAJ56EE2T. LQFP Target Adapter Board for MPC5600E Family 64 Pin. None /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf English documents 368453 None 371282830530968666 2023-06-19 N /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf LFTAJ56EE2T 2D Mechanical Drawing /docs/en/supporting-information/LFTAJ56EE2T-Layout1.pdf documents 371282830530968666 Supporting Information N en None N pdf 1 N N LFTAJ56EE2T 2D Mechanical Drawing 368.5 KB LFTAJ56EE2T-LAYOUT N 1336764468411709853417 /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf 2012-05-14 1336764467830716899443 TSP 3 May 11, 2012 Supporting Information 3D User Interactive PDF of LFTAJ56EE2T. LQFP Target Adapter Board for MPC5600E Family 64 Pin. None /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf English documents 720953 None 371282830530968666 2023-06-19 N /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf LFTAJ56EE2T 3D User Interactive PDF /docs/en/supporting-information/LFTAJ56EE2T-Interactive.pdf documents 371282830530968666 Supporting Information N en None N pdf 1 N N LFTAJ56EE2T 3D User Interactive PDF 721.0 KB LFTAJ56EE2T-INTERACTIVE N 1336764467830716899443 User Guide 1 /docs/en/user-guide/MPC5604EEVB64UM.pdf 2011-10-13 1318500737841712455929 TSP 1 Oct 12, 2011 User Guide User Guide The MPC5604EEVB64 Evaluation Board (EVB) is
based on the e200z0 Power Architecture®. This board is shipped with the PPC5604EEMLH 64-pin LQFP MCU populated to allow the evaluation of the full functionality of this part. Y None /docs/en/user-guide/MPC5604EEVB64UM.pdf English 1850697 None User Guide 2023-06-18 N /docs/en/user-guide/MPC5604EEVB64UM.pdf MPC5604EEVB64 Evaluation board User Manual /docs/en/user-guide/MPC5604EEVB64UM.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 0 N N MPC5604EEVB64 Evaluation board User Manual 1.9 MB MPC5604EEVB64UM N 1318500737841712455929 true Y Tools
