MPC561/2/3/4 General Purpose Evaluation Board

MPC564EVB Active

Roll over image to zoom in

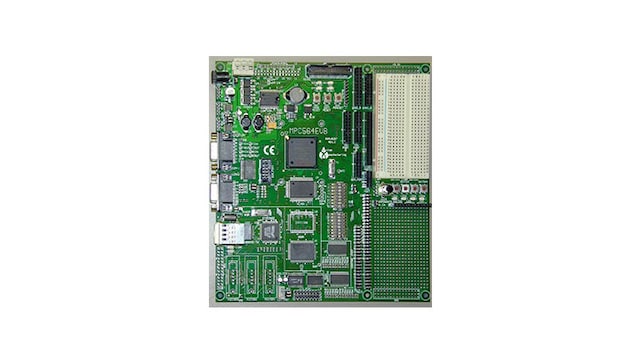

The MPC564EVB is an MPC564-based evaluation board that can be used for the development and test of MCU systems. The evaluation board is a development and test platform for software and hardware for the MPC564. The system provides for development of target applications for the similar MPC561, MPC562, or MPC563 MCUs also. It can be used by software and hardware developers to test programs, tools, or circuits without having to develop a complete MCU system.

Product Details

Supported Devices

Processors and Microcontrollers

5xx Controllers

  • MPC561: 32-Bit Microcontrollers
  • MPC562: 32-Bit Microcontrollers
  • MPC563: 32-Bit Microcontrollers
  • MPC564: 32-bit Microcontrollers

Features

Memory

  • Standard 32-bit data memory: 512 kB Fast SRAM, 2 MB Flash EPROM

Connectivity

  • BDM Debug development connector
  • Nexus 5001 50 pin standard connector
  • 10/100 Ethernet MAC+PHY
  • 2 CAN Ports with transceivers (PCA82C250)
  • 2 serial ports with DB-9 connectors
  • All I/O connectors on 0.1" grid

Power Management

  • MC33394 Multi-Output Power Supply with 1 CAN Port and transceiver
  • Power Port with power supply access
  • 6 to 25 VDC Input
  • Typical Operating Power: 400 ma @ 40 MHz

Display

  • LCD Interface Connector with Contrast Adjust, Memory Mapped (80 or 160 character)
  • Evaluation Board and Power Supply have CE Certification
  • Solderless and Standard Prototyping areas provided
  • Includes a wiggler for interface to a computer
  • User Manual included in kit

Buy Options

MPC564EVBE-Image

Click to expand

  • MPC564EVBE
    Active

  • Evaluation Board for 32-bit MPC564, Ethernet, CAN, LCD connector.

  • For a quantity of 1
MPC563MADPT176S-Image

Click to expand

  • MPC563MADPT176S
    Active

  • Stand-alone Mini-module for Qorivva MPC563xM LQFP 176.

  • For a quantity of 1
