MPC567xx Engine Management Evaluation System

MPC567xF-REV-KIT Active

Roll over image to zoom in

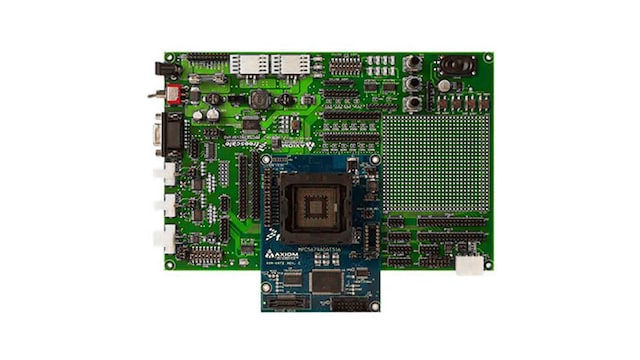

The NXP® MPC567XEVB is an evaluation system supporting both NXP MPC5674F and MPC5676R microprocessors. The complete system consists of an NXP MPC567XEVBMB motherboard that connects to either one of the following adapter cards: MPC567XADAT-PT4 (416PBGA), or MPC567XADAT-PT5 (516PBGA) daughter cards.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC5676R: Ultra-Reliable MPC5676R MCU for Automotive and Industrial Engine Management

Features

MPC5674F/MPC5676R Mother Board Features

  • 12 V DC power supply input barrel connector (supply included)
  • Two CAN channels with jumper enable
  • Two SCI channels with jumper enable
    • One with transceiver and DB-9 Connector
    • One with transceiver and 0.10 header
  • One LIN channel with jumper enables and Molex Connector
  • Two FlexRay channels with jumper enable
    • Both channels with transceiver and Molex Connector
  • Four user push-button switches
  • One 8-position user dipswitch
  • Eight user LEDs
  • Three potentiometers for analog voltage control
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails

MPC567XADAT-PT5 Adapter Board Features

  • MPC567XADAT-PT5 has socket for either MPC547xF or MPC567xR in 516BGA foot print.
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode)
  • External Synchronous SRAM (4Mbit) with jumper configurable Cs0/CS1 chip select
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

MPC567XADAT-PT4 Adapter Board Features

  • MPC567XADAT-PT4 has socket for either MPC547xF or MPC567xR in 416BGA foot print.
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode)
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

Buy Options

MPC567XADAT-PT4-Image

Click to expand

  • MPC567XADAT-PT4
    Active

  • Adapter for Qorivva MPC5674F/MPC5676R BGA 416.

    • Evaluation board (with socketed adapter board supporting both MPC567xF and MPC567xR)
    • P&E USB-ML-PPCNEXUS hardware interface cable
    • XPC56xx Resources CD-ROM
    • MPC567XADAT-PT5 or MPC567XADAT-PT4
    • Warranty card
    • USB cable
  • $749.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC567XADAT-PT5-Image

Click to expand

  • For a quantity of 1
Order from distributors
MPC567XKIT416-PT-Image

Click to expand

  • MPC567XKIT416-PT
    Active

  • Evaluation Kit for Qorivva MPC5674F/MPC5676R, XPC567XMB-PT Motherboard and MPC567XADAT-PT4 Adapter.

  • $795.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC567XKIT516-PT-Image

Click to expand

  • MPC567XKIT516-PT
    Active

  • Evaluation Kit for Qorivva MPC5674F/MPC5676R, XPC567XMB-PT Motherboard and MPC567XADAT-PT5 Adapter.

  • For a quantity of 1
Order from distributors
