MPC5645S Instrument Cluster Development Board

MPC5645S-DEMO-V2 Preproduction

Roll over image to zoom in

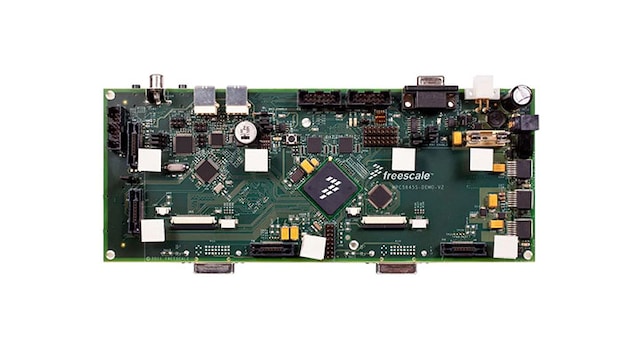

The MPC5645S EVB features the NXP® MPC5645S 32-bit MCU for single-chip automotive instrument cluster applications.

MPC5645S devices are part of the MPC56xxS family of Power Architecture®-based devices. This family has been designed with an emphasis on providing cost-effective and high quality graphics capabilities to satisfy the increasing demand for color thin-film transistor (TFT) displays within the vehicle cockpit. Traditional cluster functions, such as gauge drive, real-time counter, and sound generation are also integrated on each device.

The EVB simplifies the development of applications for the MPC5645S MCU by providing the commonly used external peripherals on a single PCB.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC564xS: Ultra-Reliable MPC56xS MCU for Automotive and Industrial Instrument Clusters

Audio

Audio Converters

Features

Memory

  • 64 MB of serial flash in two 32 MB chips connected in parallel to QuadSPI ports
  • 64 MB of mobile LPDDR memory in two 32 MB chips

Connectivity

  • General-purpose MICTOR connector for connection of your own panels
  • 1 x CAN and 1 x LIN serial interfaces with physical interfaces

Debug

  • USB port for connection to UART or SPI interfaces
  • Nexus interfaces on MICTOR connector and JTAG connector and embedded USB debug connection

Display

  • Connections for 2 x SHARP LQ043T1DG01 touchscreen LCD TFT panels or LQ043T1DG02 LCD TFT panels (DCU and DCULite)
  • Two DVI outputs for connection of desktop TFT LCD panels

Audio

  • Headphone amplifier and 3.5 mm stereo jacks for sound output from MPC5645S
  • Video in port and video ADC supporting composite video connected to the VIU module
