±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer
FXLS8971CF is a compact 3-axis MEMS accelerometer designed for use in a wide range of industrial and medical IOT applications that require excellent offset and sensitivity stability over temperature. The part supports both high-performance and low-power operating modes, allowing maximum flexibility to meet the resolution and power needs for various unique use cases. A number of advanced, integrated digital features enable designers to reduce the overall system power consumption and simplify host data collection.

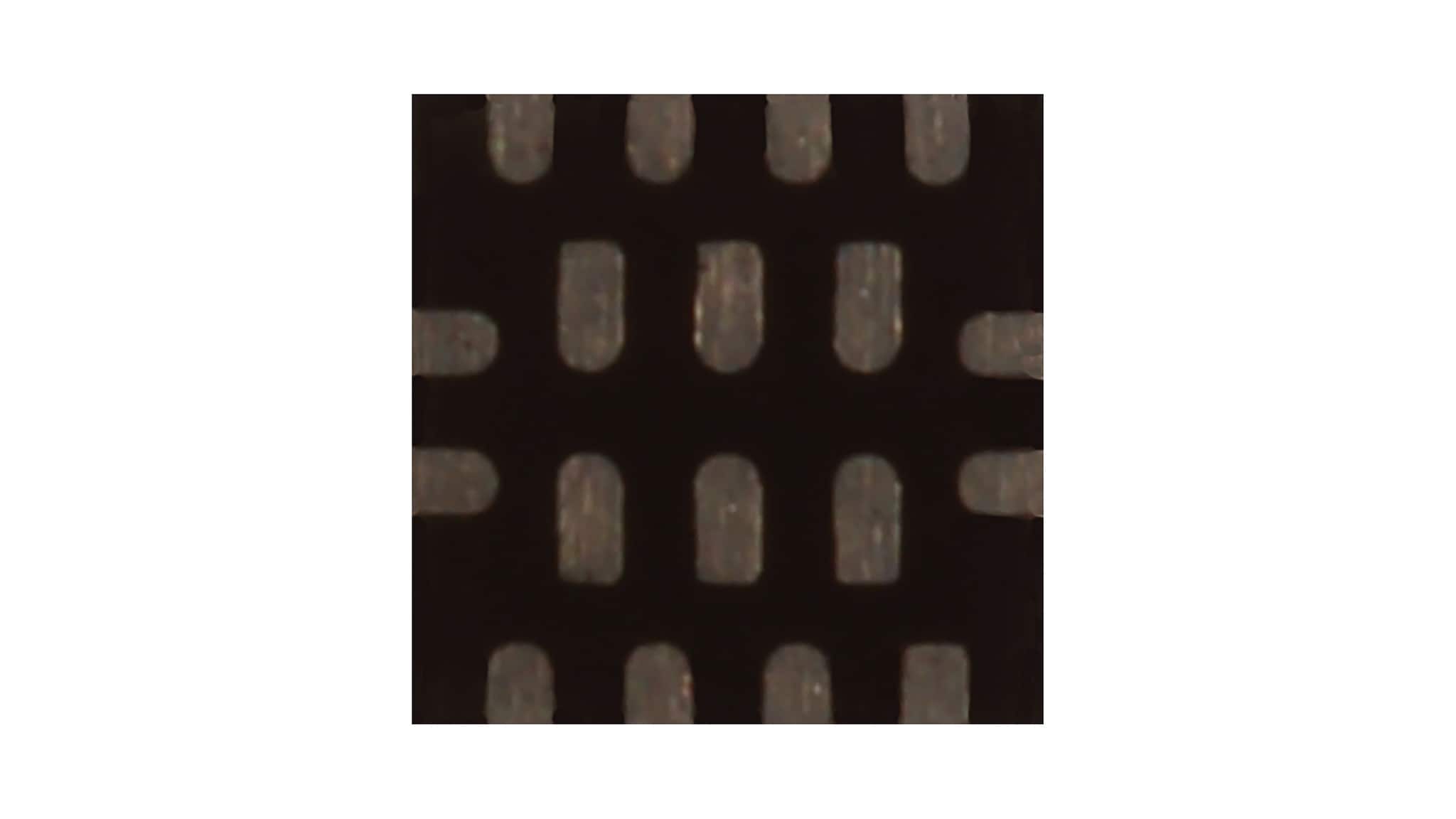

FXLS8971CF is available in a 3 mm x 3 mm x 1.25 mm 12-pin QFN package with 0.65 mm pitch and wettable flanks. The device is qualified to industrial standards over the extended –40 °C to 105 °C temperature range. The combination of sensor performance, system power-saving features, and extended over-temperature-range performance makes FXLS8971CF an ideal accelerometer for motion and position sensing/inclinometer applications in the IoT and industrial segments.
Product Details
Features
Full Scale Range
- ±2 g / ±4 g / ±8 g / ±16 g
Resolution
- 12 bit
Compact Package
- 3 mm x 3 mm x 1.25 mm package
- 12-pin QFN 0.65 mm pitch and wettable flanks
Low-Power
- ≤ 1 μA IDD for ODRs up to 6.25 Hz
- < 4 μA IDD for ODRs up to 50 Hz
Ultra-Low Power Wake Up
- Dedicated ultra-low-power motion-detection mode with a single wire interface option
Optimized Temperature Performance
- Post-board mount zero-g offset and TCO performance of ±30 mg (typ) and ±0.25 mg/°C (typ), respectively
Selectable Output Data Rate
- 0.78 Hz to 3200 Hz
Communication Interface
- I²C up to 1 MHz and SPI up to 4 MHz
Configurable Inertial Event Detection
- Flexible sensor data change detection (SDCD) function for motion or no motion, high-g/low-g, freefall and other inertial events
- Vector magnitude
- Orientation (landscape, portrait, up, down)
- FIFO/LIFO (144 bytes)
- Auto-wake sleep for power savings
Self-Test Diagnostic
- Bidirectional, robust self-test diagnostic
- Device motion or orientation does not impact the result
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. This product is included in the 10-year program.
Part numbers include: FXLS8971CF.
