±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer

FXLS8964AF Active

Roll over image to zoom in

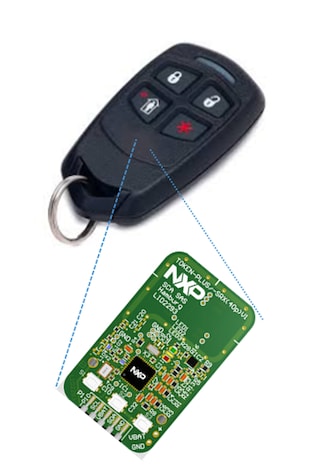

FXLS8964AF is a compact 3-axis accelerometer designed for applications requiring ultra-low power wake up on motion. With AEC-Q100 qualification and an extended temperature range, this device is an ideal choice for Automotive Key Fob application.

This smart sensor includes advanced digital features such as the SDCD block for inertial event detection, auto wake sleep, 32 sample FIFO/LIFO buffer and a single wire interface, ensuring overall power savings and simplified host data collection.

Block Diagram

FXLS8964AF

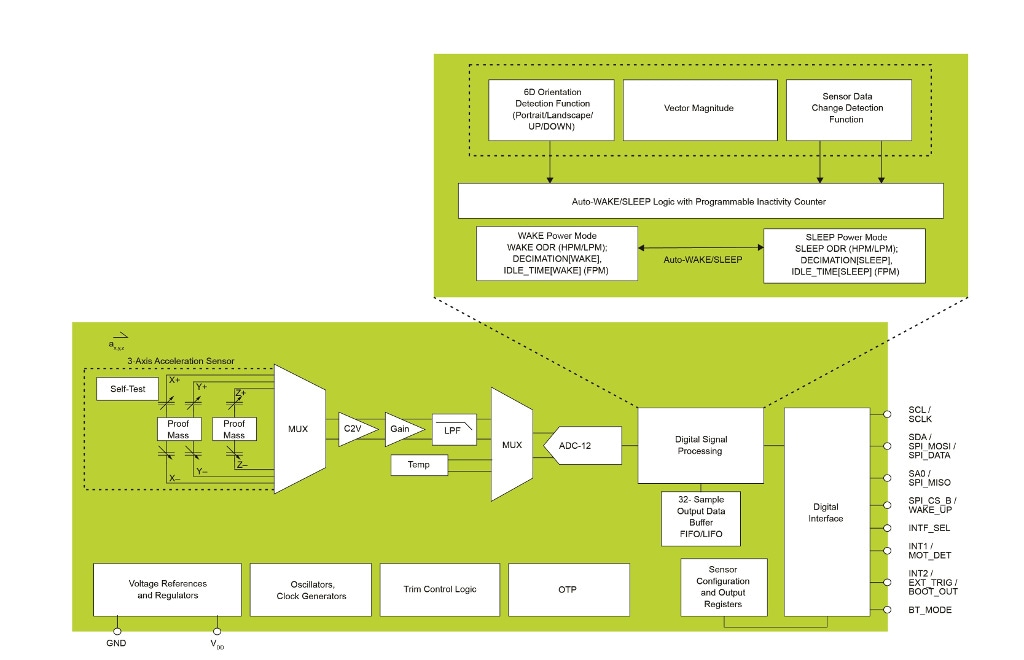

FXLS8964AF Block Diagram
Get diagram PDF

Features

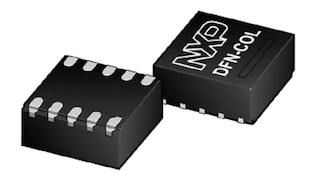

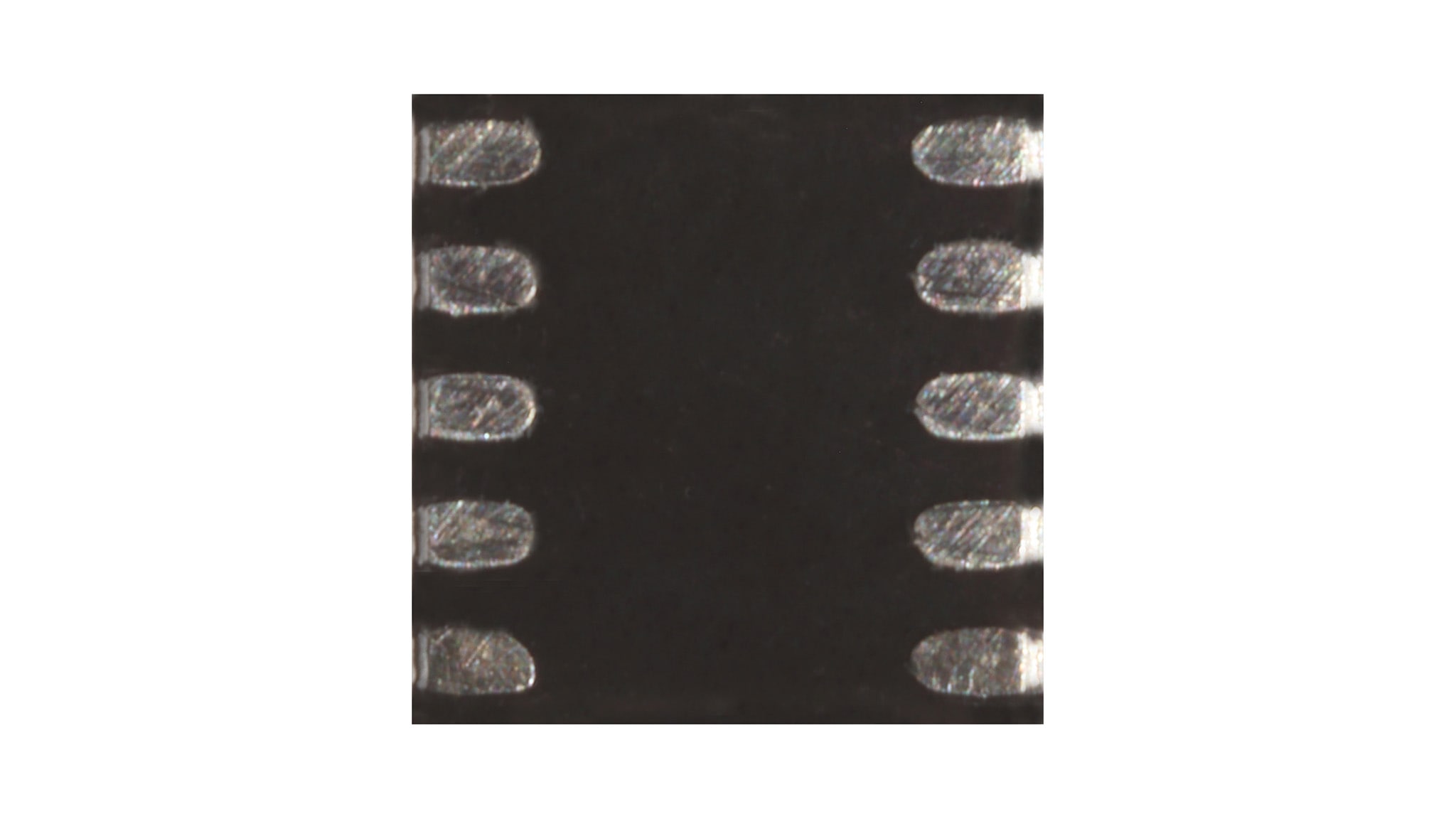

Compact Package

  • 2 mm x 2 mm x 0.95 mm 10-pin DFN package

Automotive Qualified

  • AEC-Q100, extended temperature range from –40 °C to +105 °C

Robust Design

  • EMC compliant, DFN package with wettable flanks

Low Power

  • ≤ 1 μA IDD up to 6.25 Hz, 20 uA IDD at 400 Hz
  • 650 nA in standby mode
  • 50 nA in hibernate mode

Ultra-Low Power Wake Up

  • Dedicated ultra-low-power motion-detection mode with a single wire interface option

Full-Scale Range

  • ±2 g / ±4 g / ±8 g / ±16 g

Resolution

  • 12 bit

Output Data Rate

  • 0.78 Hz to 3200 Hz

Communication Interface

  • I²C up to 1 MHz and SPI up to 4 MHz

Configurable Interrupts

  • SDCD block for Freefall, motion or no motion, high-g/low-g, inertial events
  • Vector magnitude
  • Orientation (landscape, portrait, up, down)
  • FIFO/LIFO (144 bytes)
  • Auto-wake sleep for power savings

Bidirectional Self-Test Diagnostic

  • The result is not impacted by device motion or orientation

More

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Ambient Operating Temperature (Min to Max) (℃)

Sensing Axis

Product Application

AEC-Q100 compliant

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Supply Voltage [Min to Max] (V)

Sensor Range

Package Type

Package Dimensions (LxWxZ (mm))

Communication protocol

Number of axis

FXLS8964AF
Data Sheet

Active

1K @ US$1.11

-40 to 105

XYZ

Automotive Key Fob application

Y

1.71

3.6

1.71 to 3.6

±2/4/8/16 g

VSON10

2 x 2 x 0.95

I²C, SPI

3
