NXP® Analog Accelerometers

FXLN83xxQ End of Life
  • This page contains information on a product that is not recommended for new designs.
Vibration Sensing and Monitoring - Demo

Click over video to play

The NXP® FXLN83xxQ analog accelerometers are designed to support analog capability for industrial, medical tamper detection applications.

  • Provide interface compatibility and simplicity for low-voltage MCUs
  • Excellent analog performance
  • The FXLN83xxQ accelerometers are part of the NXP Longevity Program

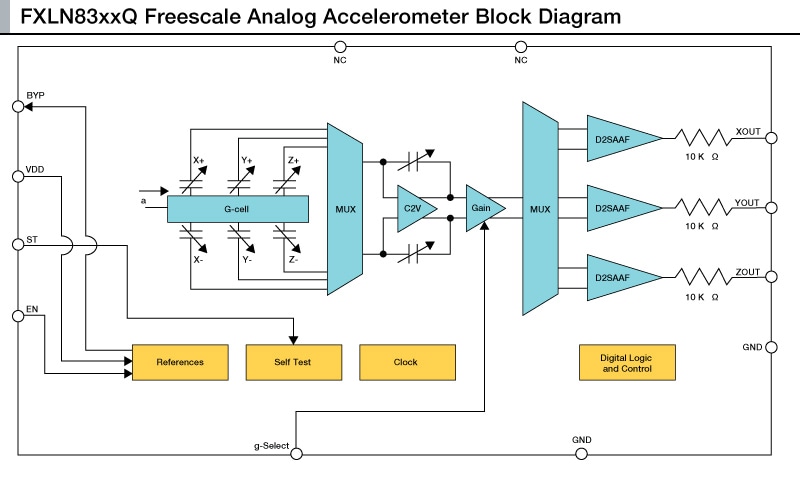

Block Diagram

30282_FXLN83XXQ_BD

NXP<sup>&#174;</sup> Low g Xtrinsic Accelerometer
Get diagram PDF

Features

  • 1.71 V to 3.6 V supply voltage
  • ±2, ±4, ±8, ±16 g dynamically selectable
  • 28.62, 57.25, 114.5, 229.0 mV/g sensitivity
  • Non-ratiometric analog parallel outputs
  • Visible solder inspection leads
  • QFN 3 x 3 x 1.05 mm 0.65 mm pitch package

Buy/Parametrics

4 results

Exclude 4 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Ambient Operating Temperature (Min to Max) (℃)

Sensing Axis

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Supply Voltage [Min to Max] (V)

Package Type

Package Dimensions (LxWxZ (mm))

FXLN8361Q
Data Sheet

End of Life

1K @ US$1.28

-40 to 105

XYZ

1.71

3.6

1.71 to 3.6

VQFN12

3 x 3 x 1

FXLN8362Q
Data Sheet
—

End of Life

1K @ US$1.34

-40 to 105

XYZ

1.71

3.6

1.71 to 3.6

VQFN12

3 x 3 x 1

FXLN8371Q
Data Sheet

End of Life

1K @ US$2.00

-40 to 105

XYZ

1.71

3.6

1.71 to 3.6

VQFN12

3 x 3 x 1

FXLN8372Q
Data Sheet
—

End of Life

1K @ US$1.79

-40 to 85

XYZ

1.95

3.6

1.95 to 3.6

VQFN12

3 x 3 x 1

N true 0 PSPFXLN83xxQen 6 Application Note Application Note t789 1 Brochure Brochure t518 1 Data Sheet Data Sheet t520 1 Fact Sheet Fact Sheet t523 2 Selector Guide Selector Guide t528 1 en_US 2 1 0 English The FXLN83xxQ NXP accelerometers are 3-axis high-performance that provide analog capability for industrial, medical and tamper detection applications. These accelerometers can also be used for vibration detection for battery operated applications with extended temperature range and bandwidth options. Additionally, these scalable accelerometers provide interface compatibility and simplicity for low-voltage microcontrollers (MCUs). 1405458421937706449772 PSP 315.2 KB None None documents None 1405458421937706449772 /docs/en/fact-sheet/FXLN83xxQFS.pdf 315154 /docs/en/fact-sheet/FXLN83xxQFS.pdf FXLN83XXQFS N N 2016-10-31 FXLN83xxQ Freescale Accelerometers - Fact Sheet /docs/en/fact-sheet/FXLN83xxQFS.pdf /docs/en/fact-sheet/FXLN83xxQFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Jul 15, 2014 Fact Sheet t523 Fact Sheet Fact Sheet Y N FXLN83xxQ Freescale Accelerometers - Fact Sheet 2 FXLN8361Q,FXLN8362Q,FXLN8371Q,FXLN8372Q 2.0 English FXLN83xxQ is a family of 3-axis, low-power, low-g, analogoutput accelerometers that consist of an acceleration sensor along with a CMOS signal conditioning and control ASIC in a 3x3x1 mm QFN package. 1405971324458713045466 PSP 379.9 KB None None documents None 1405971324458713045466 /docs/en/data-sheet/FXLN83xxQ.pdf 379865 /docs/en/data-sheet/FXLN83xxQ.pdf FXLN83XXQ N N 2016-10-31 Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer /docs/en/data-sheet/FXLN83xxQ.pdf /docs/en/data-sheet/FXLN83xxQ.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Jul 21, 2014 Data Sheet t520 Data Sheet Data Sheet Y N Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer true en_US en Application Note Application Note 1 3 1.0 English The FXLN83xxQ accelerometers expand Our portfolio, adding best-in-class analog performance. These accelerometers are designed to support analog capability for&#13;&#10;industrial, medical, and tamper-detection applications. Additionally, these accelerometers provide interface&#13;&#10;compatibility and simplicity for low-voltage microcontrollers&#13;&#10;(MCUs). The FXLN83xxQ accelerometers are designed&#13;&#10;specifically for the Industrial market and are, therefore, part of&#13;&#10;Our 1418075291130713049014 PSP 195.5 KB None None documents None 1418075291130713049014 /docs/en/application-note/AN4992.pdf 195540 /docs/en/application-note/AN4992.pdf AN4992 documents N N 2016-10-31 AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note /docs/en/application-note/AN4992.pdf /docs/en/application-note/AN4992.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 8, 2014 645036621402383989 Application Note Y N AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note Brochure Brochure 1 4 2 English NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications 1542831695480719843505 PSP 1.2 MB None None documents None 1542831695480719843505 /docs/en/brochure/MEDSENSORSA4BR.pdf 1243036 /docs/en/brochure/MEDSENSORSA4BR.pdf MEDSENSORSA4BR documents N N 2018-11-21 Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf /docs/en/brochure/MEDSENSORSA4BR.pdf Brochure N 712453003803778552 2025-02-25 pdf N en Jan 11, 2019 712453003803778552 Brochure Y N Motion and Pressure Sensors for Medical Applications - Brochure Fact Sheet Fact Sheet 1 5 13 English Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. 1092086607381736729272 PSP 2.2 MB None None documents None 1092086607381736729272 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2216251 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf SNSRSOLUTNTMFS documents N N 2016-10-31 Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Fact Sheet N 736675474163315314 2025-02-25 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N Sensor Solutions Selector Guide Selector Guide 1 6 13 English For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. 1424471489332715853854 PSP 253.0 KB None None documents None 1424471489332715853854 /docs/en/product-selector-guide/SENSSELECT.pdf 252964 /docs/en/product-selector-guide/SENSSELECT.pdf SENSSELECT documents N N 2016-10-31 Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf /docs/en/product-selector-guide/SENSSELECT.pdf Selector Guide N 553557935274807777 2025-02-25 pdf N en May 13, 2024 553557935274807777 Selector Guide Y N Sensor Product Selector Guide false 0 FXLN83xxQ downloads en true 1 Y PSP Application Note 1 /docs/en/application-note/AN4992.pdf 2016-10-31 1418075291130713049014 PSP 3 Dec 8, 2014 Application Note The FXLN83xxQ accelerometers expand Our portfolio, adding best-in-class analog performance. These accelerometers are designed to support analog capability for&#13;&#10;industrial, medical, and tamper-detection applications. Additionally, these accelerometers provide interface&#13;&#10;compatibility and simplicity for low-voltage microcontrollers&#13;&#10;(MCUs). The FXLN83xxQ accelerometers are designed&#13;&#10;specifically for the Industrial market and are, therefore, part of&#13;&#10;Our None /docs/en/application-note/AN4992.pdf English documents 195540 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4992.pdf AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note /docs/en/application-note/AN4992.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note 195.5 KB AN4992 N 1418075291130713049014 Brochure 1 /docs/en/brochure/MEDSENSORSA4BR.pdf 2018-11-21 1542831695480719843505 PSP 4 Jan 11, 2019 Brochure NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications None /docs/en/brochure/MEDSENSORSA4BR.pdf English documents 1243036 None 712453003803778552 2025-02-25 N /docs/en/brochure/MEDSENSORSA4BR.pdf Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf documents 712453003803778552 Brochure N en None Y pdf 2 N N Motion and Pressure Sensors for Medical Applications - Brochure 1.2 MB MEDSENSORSA4BR N 1542831695480719843505 Data Sheet 1 /docs/en/data-sheet/FXLN83xxQ.pdf 2016-10-31 1405971324458713045466 PSP 2 Jul 21, 2014 Data Sheet Data Sheet FXLN83xxQ is a family of 3-axis, low-power, low-g, analogoutput accelerometers that consist of an acceleration sensor along with a CMOS signal conditioning and control ASIC in a 3x3x1 mm QFN package. None /docs/en/data-sheet/FXLN83xxQ.pdf English 379865 None Data Sheet 2022-12-07 N /docs/en/data-sheet/FXLN83xxQ.pdf Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer /docs/en/data-sheet/FXLN83xxQ.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 2.0 N N Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer 379.9 KB FXLN8361Q,FXLN8362Q,FXLN8371Q,FXLN8372Q FXLN83XXQ N 1405971324458713045466 Fact Sheet 2 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2016-10-31 1092086607381736729272 PSP 5 Feb 12, 2020 Fact Sheet Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. None /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf English documents 2216251 None 736675474163315314 2025-02-25 N /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 13 N N Sensor Solutions 2.2 MB SNSRSOLUTNTMFS N 1092086607381736729272 /docs/en/fact-sheet/FXLN83xxQFS.pdf 2016-10-31 1405458421937706449772 PSP 1 Jul 15, 2014 Fact Sheet Fact Sheet The FXLN83xxQ NXP accelerometers are 3-axis high-performance that provide analog capability for industrial, medical and tamper detection applications. These accelerometers can also be used for vibration detection for battery operated applications with extended temperature range and bandwidth options. Additionally, these scalable accelerometers provide interface compatibility and simplicity for low-voltage microcontrollers (MCUs). None /docs/en/fact-sheet/FXLN83xxQFS.pdf English 315154 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/FXLN83xxQFS.pdf FXLN83xxQ Freescale Accelerometers - Fact Sheet /docs/en/fact-sheet/FXLN83xxQFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N N FXLN83xxQ Freescale Accelerometers - Fact Sheet 315.2 KB FXLN83XXQFS N 1405458421937706449772 Selector Guide 1 /docs/en/product-selector-guide/SENSSELECT.pdf 2016-10-31 1424471489332715853854 PSP 6 May 13, 2024 Selector Guide For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. None /docs/en/product-selector-guide/SENSSELECT.pdf English documents 252964 None 553557935274807777 2025-02-25 N /docs/en/product-selector-guide/SENSSELECT.pdf Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf documents 553557935274807777 Selector Guide N en None Y pdf 13 N N Sensor Product Selector Guide 253.0 KB SENSSELECT N 1424471489332715853854 true Y Products
