8-Bit I/O Expander with I2C-Bus/SPI Interface

PCA9502BS Active

The PCA9502 is an 8-bit I/O expander with I²C-bus/SPI host interface. The device comes in a very small HVQFN24 package, which makes it ideally suitable for hand-held, battery operated applications.

The device also supports software reset, which allows the host to reset the device at any time, independent of the hardware reset signal.

See product image

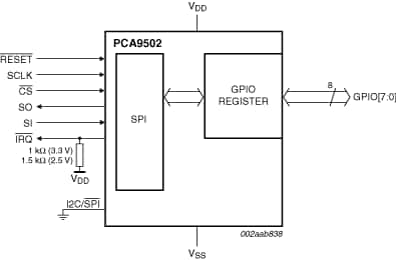

Block Diagram

PCA9502 Block Diagram

PCA9502 Block Diagram
Get diagram PDF

Features

General Features

  • Selectable I²C-bus or SPI interface
  • 3.3 V or 2.5 V operation
  • Industrial temperature range: -40 Cel to +85 Cel
  • Eight programmable I/O pins
  • Software reset
  • Industrial and commercial temperature ranges
  • Available in HVQFN24 package
  • 16 hardware-selectable follower addresses
  • Factory automation and process control
  • Portable and battery operated devices
  • Cellular data devices

I²C-Bus Features

  • Noise filter on SCL/SDA inputs
  • 400 kbit/s (maximum)
  • Compliant with I²C-bus Fast-mode
  • Follower mode only

SPI Features

  • 15 Mbit/s maximum speed
  • Follower mode only
  • SPI Mode 0

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

No of bits

VDD [min]

VDD [max]

Over volt tolerant

No of supplies

Max Sink Current per bit (mA)

Max Sink Current, per package (mA)

Source Current per bit (mA)

Interrupt output pin

Reset input pin

Output mode

I2C-bus (kHz)

Footprint body and leads

Package Type

Operating Temperature (°C)

No of Addresses

Remark

PCA9502BS
Data Sheet

8

2.5

3.6

Y

1

4

32

4

Y

Y

Totem pole

400

16.81

HVQFN24

-40~85

16

I2C/SPI interface; I/O and interrupt latch
