PCA9537DP | NXP Semiconductors

4-Bit I²C-Bus and SMBus Low-Power I/O Port with Interrupt and Reset

More

See product image

Product Details

Block Diagram

Choose a diagram:

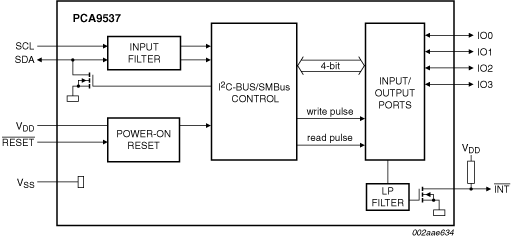

PCA9537 Block Diagram

PCA9537 Block Diagram

Block diagram: PCA9537DP

Features

Key Features

  • 4-bit I²C-bus GPIO with interrupt and reset
  • Operating power supply voltage range of 2.3 V to 5.5 V
  • 5 V tolerant I/Os
  • Polarity Inversion register
  • Active LOW interrupt output
  • Active LOW reset input
  • Low standby current
  • Noise filter on SCL/SDA inputs
  • No glitch on power-up
  • Internal power-on reset
  • 4 I/O pins that default to 4 inputs
  • 0 Hz to 400 kHz clock frequency
  • ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101
  • Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
  • Offered in TSSOP10 package

Buy/Parametrics

1 result

Include 0 NRND

Order

CAD Model

No of bits

VDD [min]

VDD [max]

Over volt tolerant

No of supplies

Standby current [typ] (µA)

Max Sink Current per bit (mA)

Max Sink Current, per package (mA)

Source Current per bit (mA)

Interrupt output pin

Reset input pin

Output mode

Input mode: invert option

I2C-bus (kHz)

Footprint body and leads

Package Type

Operating Temperature (°C)

No of Addresses

4

2.3

5.5

Y

1

0.25

25

100

10

Y

Y

Totem pole

Y

400

15.5

TSSOP10

-40~85

1
