ADTJA1101-RMII | Automotive Ethernet Adapter

Roll over image to zoom in

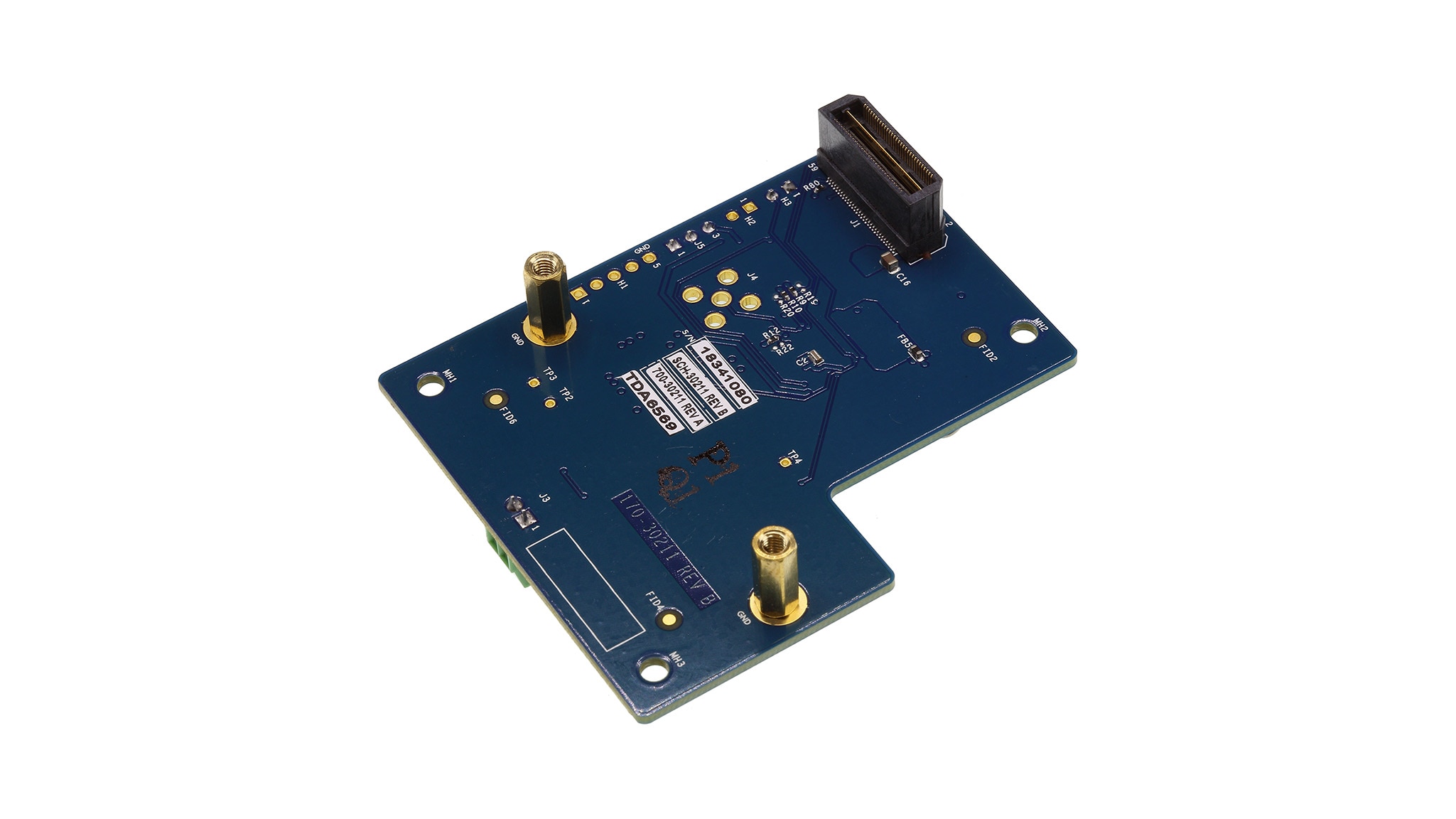

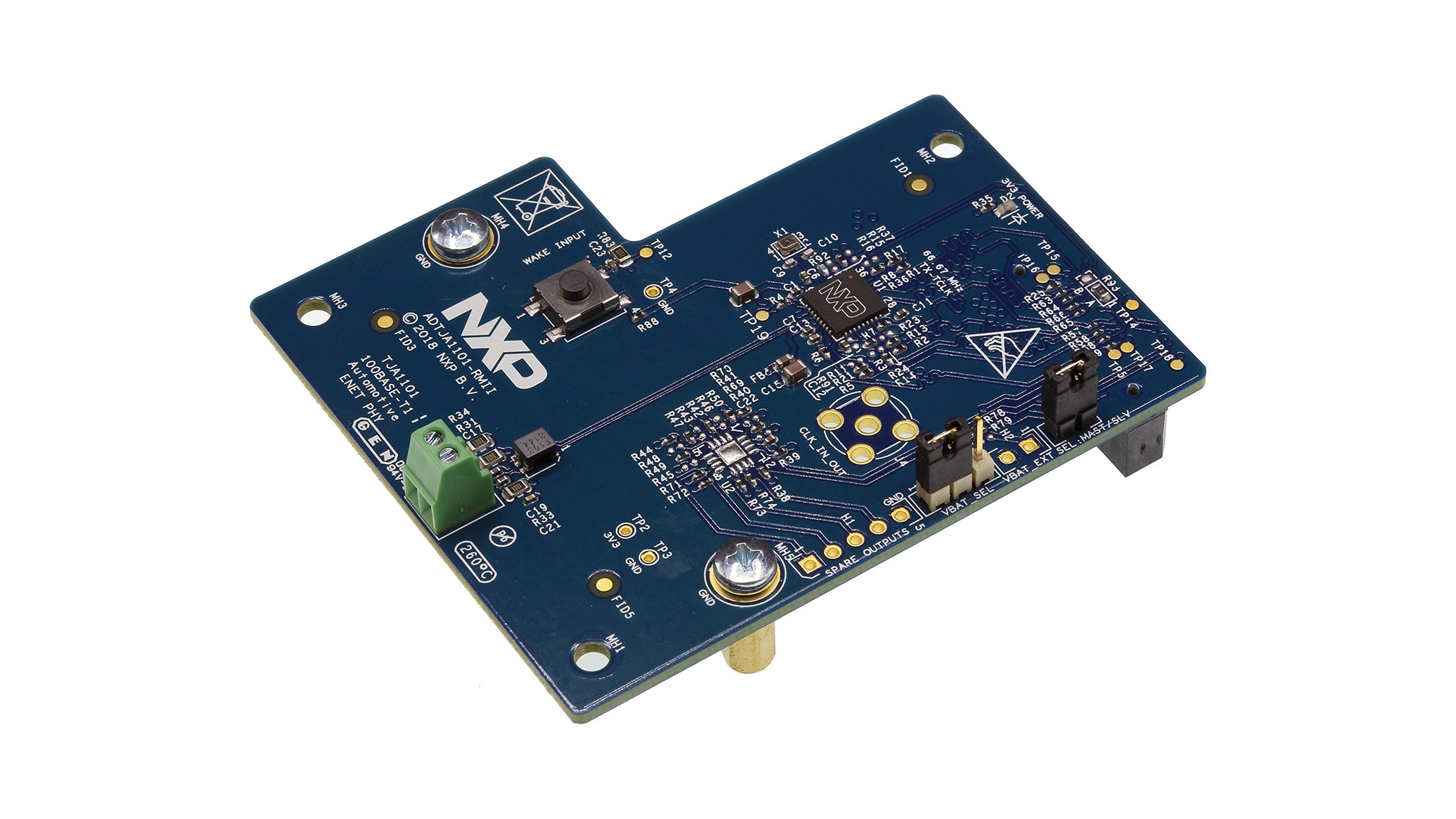

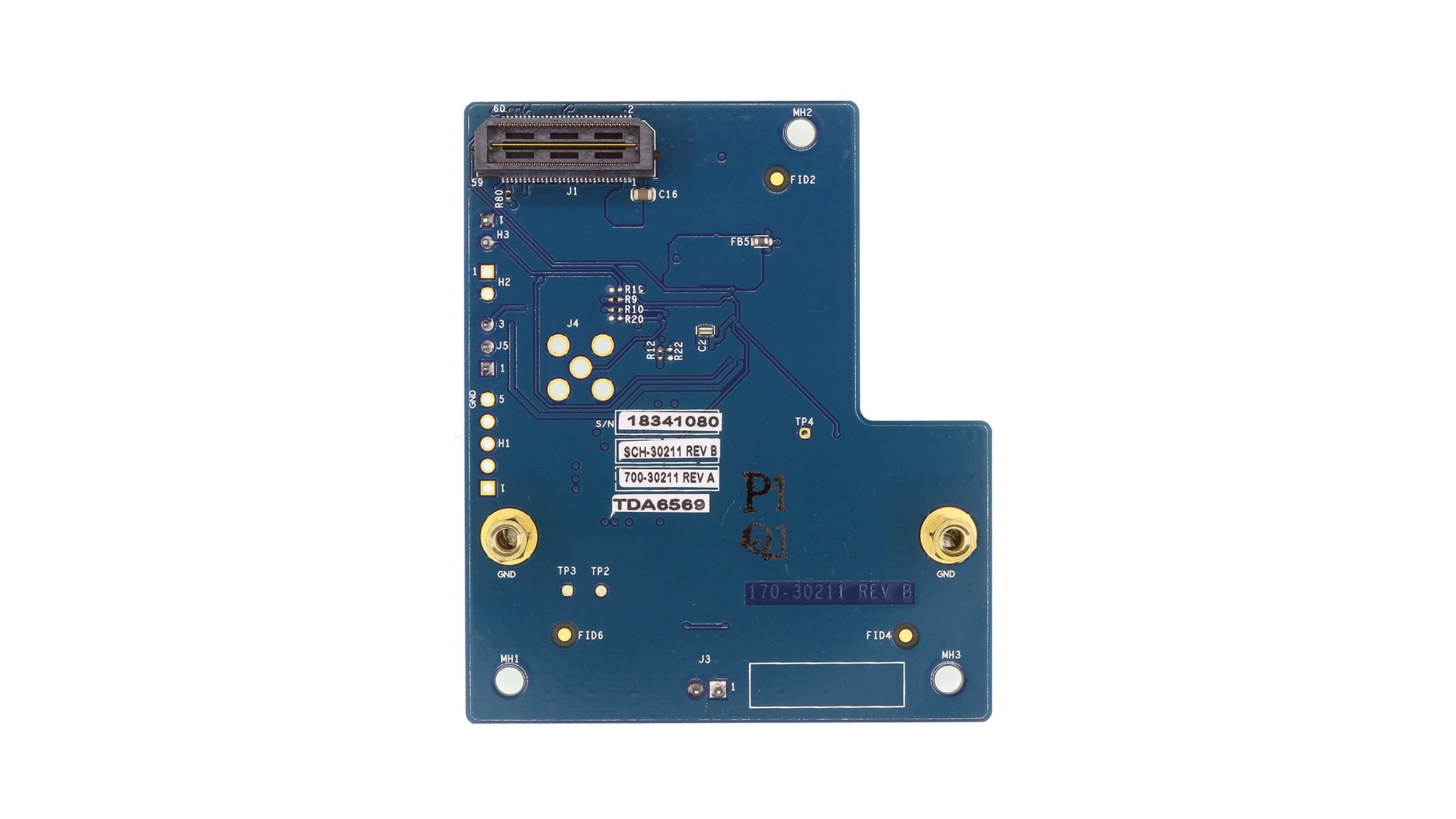

The ADTJA1101-RMII adapter card is a purpose-built hardware development tool which allows to quickly add 100Mbps Automotive Ethernet connectivity to the S32K148 Microcontroller.

By plugging in the common expansion connector, the ADTJA1101-RMII, the RMII interfaces of S32K148 gets directly connected to NXP’s 100BASE-T1 Ethernet PHY TJA1101.

The simple screw connector on ADTJA1101-RMII allows to quickly link the (included) cable to the transceiver’s Medium Dependent Interface (MDI) and build a system from scratch. Drivers are fully pre-integrated in the Software Development Kit of S32K148 for plug-and-play connectivity out of the box.

Product Details

Supported Devices

Interfaces

Automotive Ethernet PHYs

TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Microcontroller

Adapter for S32K148 and i.MX8

Connectivity

Unshielded Twisted-pair cable provided in the box
Screw connector for simple cable assembly
Config pin strapping by jumper settings
40-pin standard header (2.54 mm pitch) to Host Controller MII

General Specifications

Simple automotive ethernet system setup for prototype applications
Quick functional evaluation of TJA1101
- 100BASE-T1 connectivity at ECU prototyping stage
- Simple chip configuration
- Chip status report via onboard LEDs

Buy Options

Click to expand

ADTJA1101-RMII
TJA1101 Automotive Ethernet Adapter for S32K148EVB and i.MX8.
Kit Contains:
- 1x TJA1101 customer evaluation board
- 1x Unshielded Twisted Pair (UTP) Cable (automotive grade)

$108.65 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
