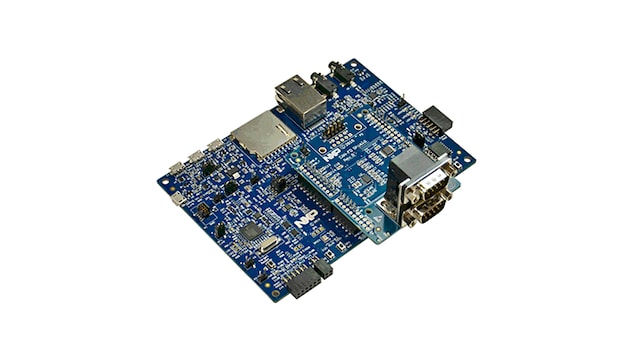

LPCXpresso54618 CAN-FD kit

OM13094
No Longer Manufactured

Roll over image to zoom in

This board is no longer in production. The replacement for this board is the OM13098 and OM13099

The LPCXpresso54618 CAN-FD kit provides a flexible platform for developers wanting to evaluate and develop with CAN-FD on the LPC5461x family of devices. This kit is comprised of an LPCXpresso54618 board featuring an LPC54618 MCU with an onboard, CMSIS-DAP / SEGGER J-Link compatible debug probe, and a daughter card (also known as a shield board) with a dual CAN-FD transceiver and RS232C interface. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil and IAR. The board is also equipped with a standard 10-pin header enabling the use of 3rd party to debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC5461x devices.

MCUXpresso configuration tools and extensive SDK drivers/examples for use are available for the board at http://mcuxpresso.nxp.com. Note that CAN-FD drivers are not included in SDK2.2 but are available as a separate download under the Downloads tab on this page.

Product Details

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

  • LPC546XX: Power-Efficient Microcontrollers (MCUs) With Advanced Peripherals Based on Arm® Cortex®-M4 Core

Analog and Mixed Signal

Analog Switches

  • NX3DV2567: Low-Ohmic Four-Pole Double-Throw Analog Switch

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1059TK: Dual High-Speed CAN Transceiver with Standby Mode

Features

Memory

  • 128 Mb Micron MT25QL128 Quad-SPI flash
  • 16 MB Micron MT48LC8M16A2B4 SDRAM

Connectivity

  • Full-size SD/MMC card slot
  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100 Mbps Ethernet (RJ45 connector)

Power Management

  • Built-in power consumption measurement for target LPC54618 MCU

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with line in/out

Debug

  • Link2 debug probe with CMSIS-DAP and SEGGER® J-Link protocol options
  • UART and SPI port bridging from LPC54618 target to USB via the onboard debug probe
  • Support for external debug probe

Sensors

  • NXP MMA8652FCR1 accelerometer

Expansion Port

  • Multiple Expansion options, including Arduino® UNO and PMod

Components

  • 3 x user LEDs, plus Reset, ISP (3), and user buttons
  • Shield board with dual CAN/CAN-FD transceiver (TJA1059) and RS232C transceiver.

Software and support application development

    null

More

Buy Options

OM13094-Image

Click to expand

  • OM13094
    No Longer Manufactured

  • LPCXpresso54618 CAN-FD kit.

    • 1x LPCXpresso54618 Development Board, pre-loaded with demonstration program showing CAN loopback example.
    • 1x CAN/CAN-FD transceiver shield board
