8-bit Flexis USB JE MCUs

S08JE Active
Introducing Five New Microcontrollers (MCUs) for Medical Solutions

Click over video to play

The MC9S08JE128/64 (JE128/64) provides ultra-low-power operation, USB connectivity and high measurement accuracy, all in a single 8-bit microcontroller to allow designers to develop a more fully featured and cost-effective system. The JE128/64 integrates high-resolution analog-to-digital converter (ADC) and digital-to-analog converter (DAC) modules, a rich peripheral set including a USB 2.0 device controller and multiple serial interfaces.

The JE128/64 is part of the Flexis microcontroller series, which includes both 8-bit S08 and 32-bit V1 ColdFire® microcontrollers that have a common set of peripherals and development tools for migration flexibility. The JE128/64 family is also easy to use and NXP® provides a comprehensive suite of development tools and software to help developers design quickly and easily.

Block Diagram

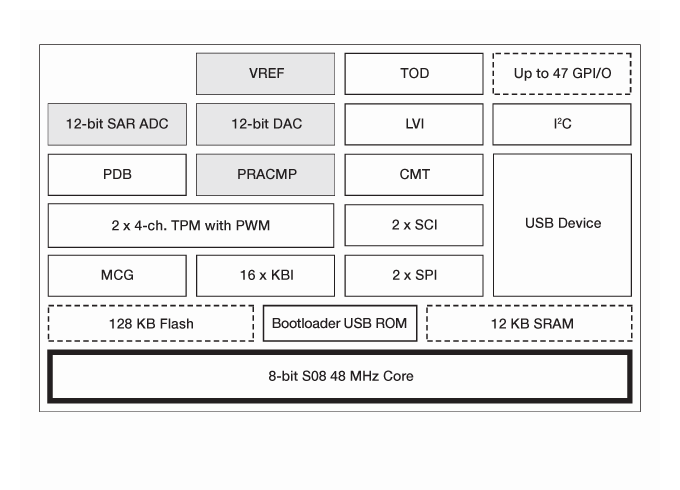

S08JE Microcontroller Block Diagram

S08JE Microcontroller Block Diagram
Get diagram PDF

Features

CPU and System Configuration

  • 8-bit S08 CPU operating at 48 MHz
  • 1.8V to 3.6V single supply

On-Chip Memory

  • Up to 128 KB flash
  • Up to 12 KB SRAM

Power Management

  • Low-power operation modes

Analog Related Peripherals

  • 12-bit ADC
  • 12-bit DAC
  • Programmable delay block
  • VREF (voltage reference)

Communication Peripherals

  • USB 2.0 controller
  • Dual asynchronous SCIs
  • Inter IC-BUS (I²C)
  • Dual synchronous SPI
    • 1 x 32-bit FIFO SPI

Software and Tools

  • Background debug mode (BDM) for in-circuit debugging
  • Medical applications USB stack
  • Tower® development system
