TWR-MCF51JE Hardware Design Package
ColdFire Flexis MCF51JE Low-Power USB Tower System Module

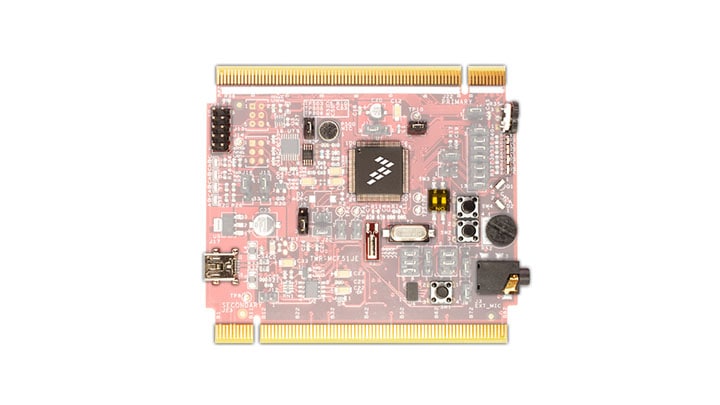

The TWR-MCF51JE module is a development board for the MCF51JE V1 ColdFire® Low-Power USB 32-bit MCUs. It is designed to enable the development of long-lasting portable applications with USB connectivity.
The TWR-MCF51JE operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.
Product Details
Features
Debug
- Integrated open source BDM debugging tool
Size
- Small form factor (59 mm x 90 mm)
Documentation
Quick reference to our documentation types.
1-5 of 7 documents
-
Fact Sheet
MCF51JE256/128 Ultra-low-power MCU with USB connectivity - Fact SheetFeatured
-
Application Note
Using the MM/JE Flexis® Families for Infrared Communication
-
Application Note
Dynamic LCD Driver Using GPIO Pins
-
Errata
OSBDM ERRATA
