TWR-S08JE128 Design Package
MC9S08JE Low-Power USB Tower System Module

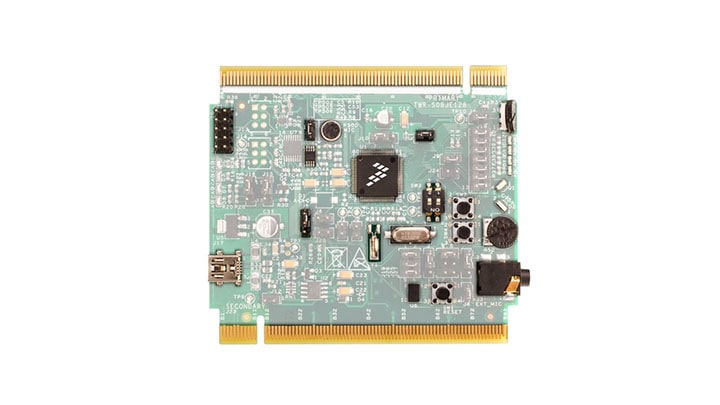

The TWR-S08JE128 module is a development board for the MC9S08JE low-power USB Flexis® 8-bit family of MCUs.
The TWR-S08JE128 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.
Product Details
Features
Connectivity
- Supports external communications interfaces RS-232, RS485, CAN, USB
Power Management
- Includes power regulation circuitry with standardized bus Low power
Debug
- Integrated open source BDM debugging tool Two 80-pin connectors on the outside to support debugging or expansion to LCD module
Size
- Small form factor (59 mm x 90 mm)
- The TWR-S08JE128 board contains a Flexis® MC9S08JE128, an Energy-Efficient Product Solution by NXP®
