SD, SDIO, Mini SD, Micro SD and SIM Card Voltage Level Translator with EMI Filter and ESD Protection

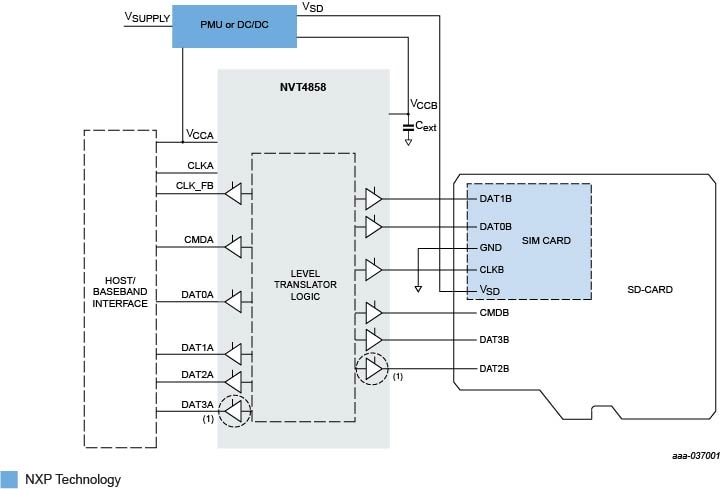

The NVT4858 device is an SD 3.0-compliant bidirectional dual voltage level translator with auto direction control. It is designed to interface between a memory or SIM card operating between 1.65 V to 3.6 V signal levels and a host with a supply voltage of 1.08 V to 1.95 V.
The device supports SD 3.0 SDR104, SDR50, DDR50, SDR25, SDR12 and SD 2.0 High-Speed (50 MHz) and Default-Speed (25 MHz) modes. The device has an auto-enable/disable function connected to the VCCB supply pin, built-in EMI filters and robust ESD protections (IEC 61000-4-2, level 4).
This device also supports SIM card voltage level translator using CLK and two of the data lines for SD and SIM card combo sockets.
Product Details
Features
Key Features
- Supports up to 208 MHz clock rate
- SD 3.0 specification-compliant voltage translation to support SDR104, SDR50, DDR50, SDR25, SDR12, High-Speed and Default-Speed modes
- Compliant with ISO-7816 SIM/Smart Card interface requirements
- Support SD/SIM card supply voltages with range of 1.65 V to 3.6 V
- Host microcontroller operating voltage range: 1.08 V to 1.95 V
- Feedback channel for clock synchronization
- Low power consumption by push-pull output stage with break-before-make architecture
- Automatic enable and disable through VCCB
- Integrated pull-up and pull-down resistors: no external resistors required
- Integrated EMI filters suppress higher harmonics of digital I/Os
- Integrated 8 kV ESD protection according to IEC 61000-4-2, level 4 on card side eliminates need for external ESD diodes
- Level shifting buffers keep ESD stress away from the host (zero-clamping concept)
- Available in XQFN16 with 0.4 mm pitch and WLCSP16 with 0.35 mm pitch
Comparison Table
| NVT4857UK | NVT4858UK | NVT4858HK | |
|---|---|---|---|
| SIM Card Level Translator | |||
| Internal LDO | |||
| Package | WLCSP20 | WLCSP16 | HQFN16 |
Product Programs
Buy/Parametrics
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Signal Application | Type VLT | Number of bits | VCC(A) (Min - Max) | VCC(B) (Min-Max) | Supply Current (Max) (μA) | Bandwidth (Max) (MHz) | Input Type (TTL, CMOS, Schmitt Trigger) | Output Type (Open Drain, 3-State, Push-Pull, Pass-gate) | Ambient Operating Temperature (Min to Max) (℃) | AEC-Q100 compliant | Package Type | Package Dimensions (LxWxZ (mm)) | Budgetary Price excluding tax |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | SD 3.0 | SD 3.0 level translator | 6 | 1.08 to 1.98 | 1.62 to 3.6 | 15 | 104 | CMOS | Push-Pull | -40 to 85 | N | XQFN16 | 2.6 x 1.8 x 0.5 | 1K @ US$0.30 | |||
Active | SD 3.0 | SD 3.0 level translator | 6 | 1.08 to 1.98 | 1.62 to 3.6 | 15 | 104 | CMOS | Push-Pull | -40 to 85 | N | WLCSP16 | 1.41 x 1.41 x 0.49 | 1K @ US$0.46 |
Documentation
Quick reference to our documentation types.
5 documents
Compact List
Application Note (1)
Data Sheet (1)
Fact Sheet (1)
Packing Information (2)
-
Standard product orientation 12NC ending 115[SOT1160-1_115]
5 documents
Compact List
Application Note (1)
Data Sheet (1)
Fact Sheet (1)
Packing Information (2)
-
Standard product orientation 12NC ending 115[SOT1160-1_115]
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-
Evaluation and Development BoardsSD/SIM Level Shifter Evaluation Board
-

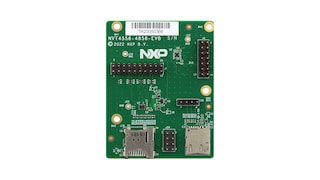

Evaluation and Development BoardsNVT4558-4858-EVB SD/SIM Level Shifter Evaluation Board
