2-Bit Dual Supply Bidirectional I3C/I²C-Bus and SPI Voltage-Level Translator

P3A9606 Active
P3A9606 2-channel Voltage Level Translator

Click over video to play

The P3A9606JK is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation for traditional open drain I²C-bus/SMBus applications, combination open drain and push pull 12.5 MHz I3C-bus applications or push pull SPI applications (with two devices).

Both VCC(A) and VCC(B) can be supplied at any voltage between 0.72 V and 1.98 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V and 1.8 V).

It features two 1-bit input-output ports (An and Bn) controlled by one output enable input (OE).

Block Diagram

P3A9606

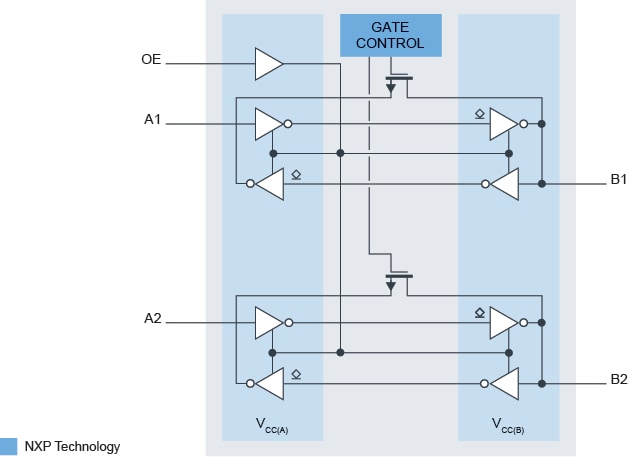

P3A9606 Block Diagram
Get diagram PDF

Features

General Features

  • Wide supply voltage range:
    • VCC(A): 0.72 V to 1.98 V and VCC(B): 0.72 V to 1.98 V; VCC(A) ≤ VCC(B)
  • IOFF circuitry provides partial power-down mode operation
  • Inputs accept voltages up to 1.98 V and are overvoltage tolerant to 1.98 V
  • Provided voltage level translation for I3C, I²C-bus, SMBus and SPI devices
  • Specified from -40 °C to +85 °C and -40 °C to +125 °C
  • Latch-up performance exceeds 100 mA per JESD 78B class II
  • Available in X2SON8 1.35 x 1.0 x 0.32 mm package with 0.35 mm pitch

ESD Protection

  • HBM JESD22-A114E class 2 exceeds 2000 V
  • CDM JESD22-C101E exceeds 1000 V

Comparison Table

Part Number VCC(A) VCC(B) Signal
PCA9306 1 to 3.6 V 2 to 5.5 V I²C
NTB0104 1.2 to 3.6 V 1.65 to 5.5 V SPI
P3A9606 0.72 to 1.98 V 0.72 to 1.98 V I²C, SPI or I3C

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Signal Application

Type VLT

Number of bits

VCC(A) (Min - Max)

VCC(B) (Min-Max)

Supply Current (Typ) (μA)

Bandwidth (Max) (MHz)

Input Type (TTL, CMOS, Schmitt Trigger)

Output Type (Open Drain, 3-State, Push-Pull, Pass-gate)

Ambient Operating Temperature (Min to Max) (℃)

AEC-Q100 compliant

Package Type

Package Dimensions (LxWxZ (mm))

Budgetary Price excluding tax

P3A9606JK
Data Sheet

Active

I2C, I3C, SPI

BiDirectional FET w/one shot

2

0.72 to 1.98

0.72 to 1.98

3.5

52

CMOS

3-State, Pass-gate

-40 to 85

N

X2SON8

1.35 x 1 x 0.32

1K @ US$0.26
