SD 3.0-SDR104 Compliant Integrated Auto-Direction Control Memory Card Voltage Level Translator with EMI Filter and ESD Protection

NVT4857UK
Active

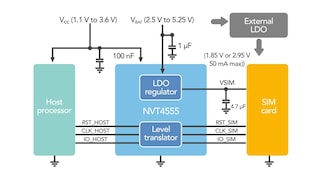

NXP SIM and SD Card Voltage Level Translators

Click over video to play

The device is an SD 3.0-compliant bidirectional dual voltage level translator with auto-direction control. It is designed to interface between a memory card operating at 1.8 V or 3.0 V signal levels and a host with a nominal supply voltage of 1.2 V to 1.8 V. The device supports SD 3.0 SDR104, SDR50, DDR50, SDR25, SDR12 and SD 2.0 High-Speed (50 MHz) and Default-Speed (25 MHz) modes. The device has an integrated voltage selectable low dropout regulator to supply the card-side I/Os, an auto-enable/ disable function connected to the VSD supply pin, built-in EMI filters and robust ESD protections (IEC 61000-4-2, level 4).

Features

Key Features

  • Supports up to 208 MHz clock rate
  • SD 3.0 specification-compliant voltage translation to support SDR104, SDR50, DDR50, SDR25, SDR12, High-Speed and Default-Speed modes
  • 1.2 V to 1.8 V host side interface voltage support
  • Feedback channel for clock synchronization
  • 100 mA Low dropout voltage regulator to supply the card-side I/Os
  • Low power consumption by push-pull output stage with break-before-make architecture
  • Automatic enable and disable through VSD
  • Integrated pull-up and pull-down resistors: no external resistors required
  • Integrated EMI filters suppress higher harmonics of digital I/Os
  • Integrated 8 kV ESD protection according to IEC 61000-4-2, level 4 on card side
  • Level shifting buffers keep ESD stress away from the host (zero-clamping concept)
  • 20-ball WLCSP; pitch 0.4 mm
