SD/SIM Level Shifter Evaluation Board

NVT4858-4557-EVB

Roll over image to zoom in

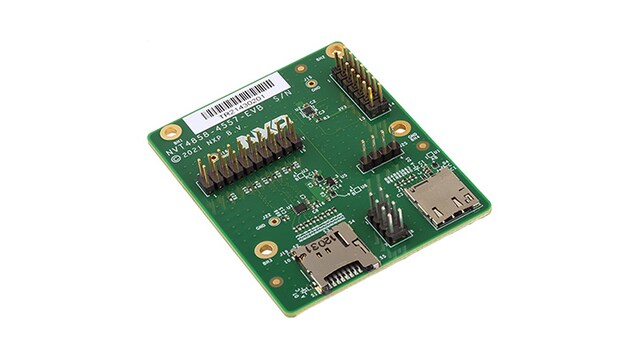

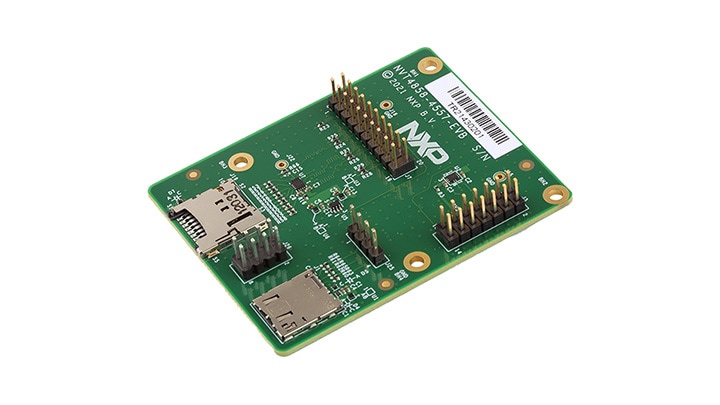

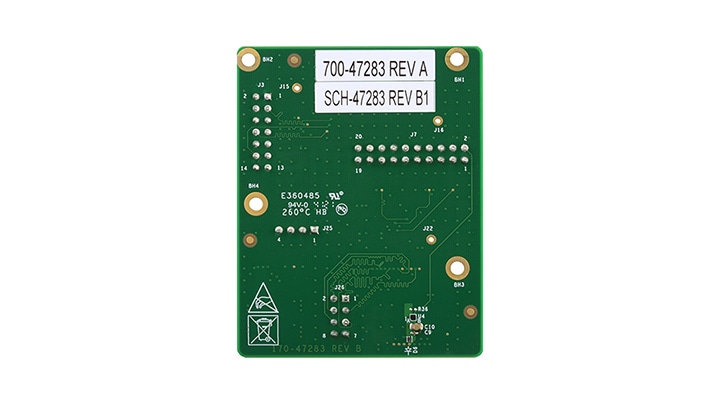

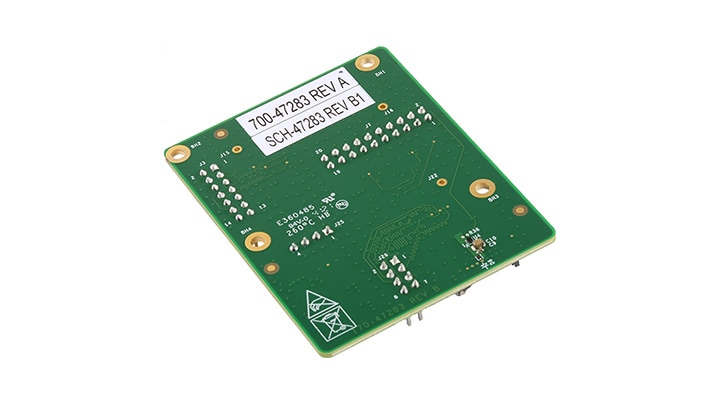

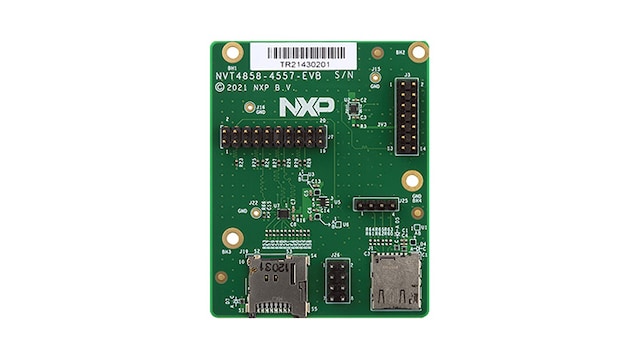

Easy-to-use evaluation board with mounted NVT4858/NVT4557, input and output headers, as well as SD and SIM socket allowing effortless evaluation of NVT4858/NVT4557.

Supported Devices

Analog and Mixed Signal

Voltage Level Translators

  • NVT4557: SIM Card Interface Level Translator with EMI Filter and ESD Protection
  • NVT4858: SD, SDIO, Mini SD, Micro SD and SIM Card Voltage Level Translator with EMI Filter and ESD Protection

Features

SD 3.0 Compliant Bidirectional Dual Voltage Level Shifter with Auto Direction Control

  • 1.08 V to 1.95 V signal levels host and 1.65 V to 3.6 V signal levels card. Direction control signal is not required.

SD Level Shifter Supports Up to 208 MHz Clock Rate, SDR104

  • The device supports SD 3.0 SDR104, SDR50, DDR50, SDR25, SDR12 and SD 2.0 High-Speed (50 MHz) and Default-Speed (25 MHz) modes

SIM ISO-7816 Compliant Bidirectional Dual Voltage Level Shifter with Auto Direction Control

  • 1.08 V to 1.95 V signal levels host and 1.65 V to 3.6 V signal levels card. Direction control signal is not required.

SIM Level Shifter Supports Up to 10 MHz Clock Rate

  • High speed SIM data rate

Integrated Pull-Up and Pull-Down Resistors

  • No external resistors required

Integrated 8KV IEC 61000-4-2, level 4 ESD Protection

  • No external ESD protection components required

Buy Options

NVT4858-4557-EVB-Image

Click to expand

  • $22.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
