MC33664 | High-Speed Transceiver | NXP Semiconductors

Isolated Network High-Speed Transceiver

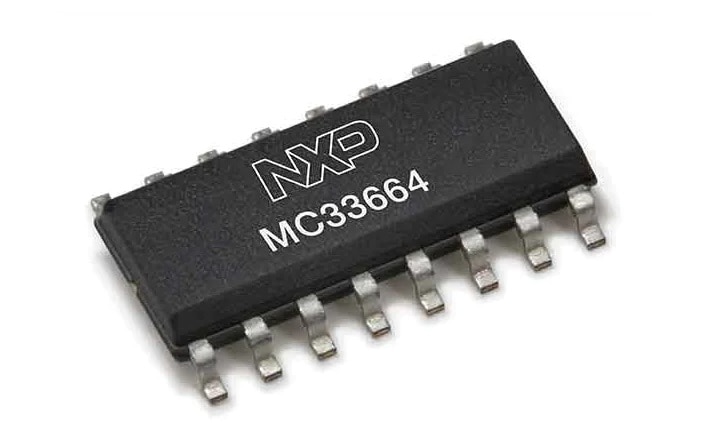

Roll over image to zoom in

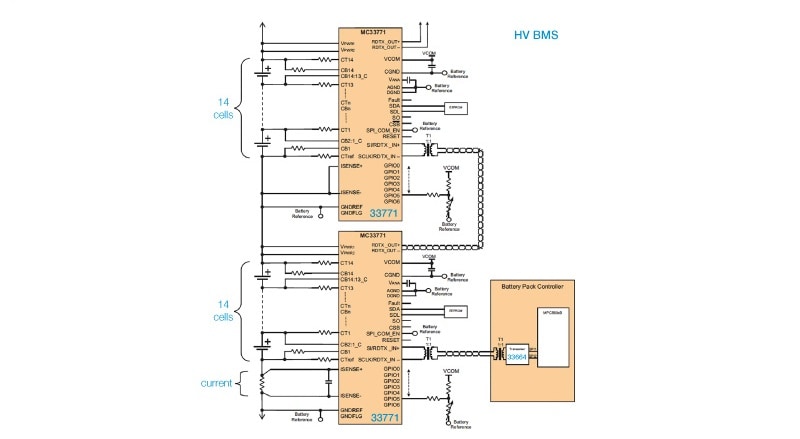

Block Diagram

MC33771 and MC33664 High-Voltage Battery Management System

 MC33771 and MC33664 High-Voltage Battery Management System

Features

Key Features

  • 2.0 Mbps isolated network communication rate
  • Dual SPI architecture for message confirmation
  • Robust conducted and radiated immunity with wake-up
  • 3.3 V and 5.0 V compatible logic thresholds
  • Low sleep mode current with automatic bus wake-up
  • Ultra-low radiated emissions

Buy/Parametrics

1 result

Include 0 NRND

Order

CAD Model

Status

Budgetary Price excluding tax

Package Termination Count

Package Type

Additional Features - Analog

No. of TPL Ports

Ambient Operating Temperature (Min to Max) (℃)

TPL Data Rate [max] Mbit/s

MCU Data Rate [max] Mbit/s

Supply Voltage [Min to Max] (V)

Active

1K @ US$1.64

16

SO16

Sleep Mode

1

-40 to 125

2.0

2.0

4.5 to 7
