24 V Multipurpose Low RDSON eXtreme Switch

MC24XS4 Active

The NXP 24XS4 devices are part of a 24 V high side switch product family with integrated control and multiple protective and diagnostic functions.

  • Designed for truck, bus and industrial applications
  • The low RDSON channels can control different load types; bulb lamps, solenoids or DC motors
  • Control, device configuration and diagnostics are performed through a 16-bit SPI, allowing easy integration into existing applications
  • Both channels can be controlled individually by external or internal clock signals for PWM mode, or by direct inputs and can also be parallelized
  • With increased integration, the switch drives lighter-weight, smaller systems and a lower component count
  • Easy Tower® System eXtreme Switch module configuration

See product image

Block Diagram

Somplified Application Drawing

Features

Key Features

  • Normal operating range: 8.0 - 36 V, extended range: 6.0 - 58 V
  • 3.3 V and 5.0 V compatible 16-bit daisy-chainable SPI control
  • Flexible load management from 1 to 24 A with possible parallel output operating modes
  • Programmable dynamic threshold overcurrent protection and over-temperature protection with programmable auto-retry functions
  • Accurate temperature and synchronous/asynchronous current sensing
  • Individually programmable internal/external PWM clock signals
  • Sleep mode with minimal supply current (< 10 µA @ 24 V)
  • Compatible PCB footprint and SPI software driver among the family

Comparison Table

24XS4

Product Datasheet # of outputs RDSon (mOhm) Package Suggested tool

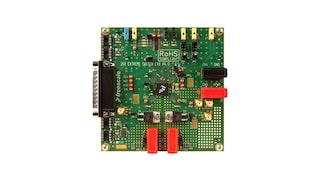

MC06XS4200 Datasheet Dual 2 x 6.0 PQFN 23 KIT06XS4200EVBE

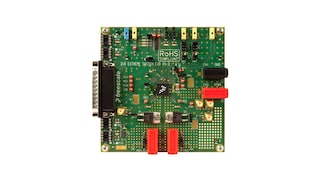

MC10XS4200 Datasheet Dual 2 x 10.0 PQFN 23 KIT10XS4200EVBE

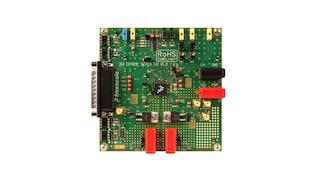

MC20XS4200 Datasheet Dual 2 x 20.0 PQFN 23 KIT20XS4200EVBE
MC22XS4200 Datasheet Dual 2 x 20.0 SOIC-EP 32 KIT22XS4200EKEVB
MC50XS4200 Datasheet Dual 2 x 50.0 SOIC-EP 32 KIT50XS4200EKEVB
