Evaluation Kit - MC10XS4200, Dual High Side Switch

KIT10XS4200EVBE Active

Roll over image to zoom in

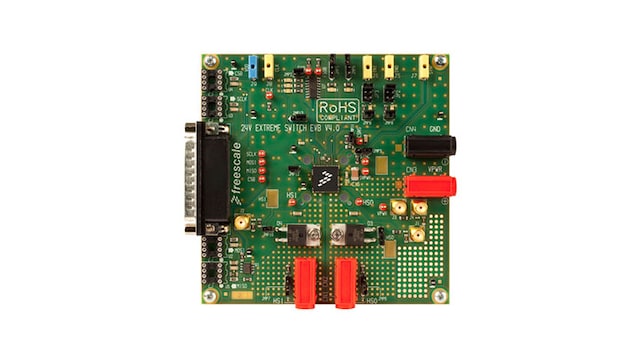

This eXtreme switch evaluation board demonstrates the capability of the MC10XS4200 as a 24 V dual high side switch product for truck, bus, and industrial applications. Benefits include:

  • Offers an intelligent high-side switch for 24 V truck and bus applications
  • Enabled decentralized lighting management (autonomous operation)
  • Provides a high number of protective and diagnostic functions
  • Allows to drive bulb lamps (Tungsten filament), LED lights and DC-motors
  • Guarantees full functional and electrical compatibility between family members
  • Offers a 16-bit SPI interface for daisy chaining multiple devices
  • Allows multiple channel and device current sensing with only one precision resistor

Product Details

Supported Devices

Power Management

High Side Switches

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

General Specifications

  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements
  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock
  • Programming, control, and diagnostics accomplished via the use of a 16-bit SPI interface

Power Management

  • Input voltage operation range from 6.0 to 58 V

User Components

  • Dual high side switches (each < 10 mOhm RDS(ON))

Buy Options

KIT10XS4200EVBE-Image

Click to expand

  • KIT10XS4200EVBE
    Active

  • Evaluation Kit - MC10XS4200, Dual 24 V, 10 mOhm High Side Switch.

    • KIT10XS4200EVBE Hardware
    • Quick Reference Guide
  • $92.46 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
