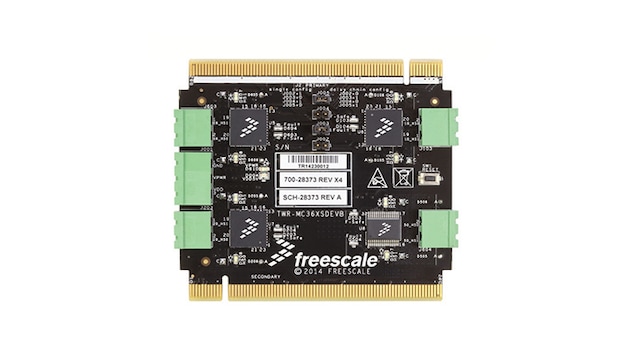

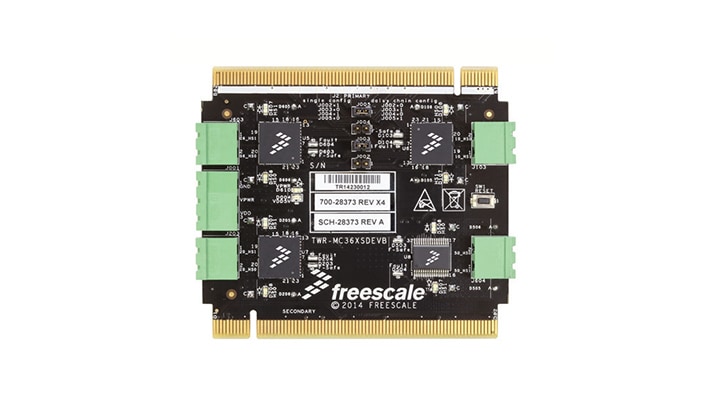

Embedded Component: 36 V Tower® System eXtreme Switch module

TWR-MC36XSDEVB Preproduction

Roll over image to zoom in

Expand the capabilities of a Tower® System with this easy-to-use, plug-in eXtreme Switch module.

  • Drives up to 8 power outputs via 4 daisy-chained eXtreme Switches
  • Quickly accesses the capabilities of analog devices
  • Adds fully protected analog power drives features to a broad array of applications (PLC, I/O modules, lighting, motor control)
  • Designed to be combined and used with other MCU and peripheral modules in the Tower System

Product Details

Supported Devices

Power Management

High Side Switches

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

General Specifications

  • Daisy chained SPI for an independent control

Power Management

  • High current capability, up to 12 A, thanks to low Rdson
  • Flexible load management supporting resistive, capacitive, and inductive loads
  • Integrated clock and PWM module up to 1 kHz
  • Current and temperature monitoring multiplexed per device and channel on a single ADC input

User Components

  • 4 intelligent dual high side switches for a total of 8 power output
N true 0 TSPTWR-MC36XSDEVBen 7 Data Sheet Data Sheet t520 4 Supporting Information Supporting Information t531 1 User Guide User Guide t792 2 en_US 5 1 3.0 English The 06XS4200 device is part of a 36 V dual high side switch product family with integrated control and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<6 mOhm) can control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface, allowing easy integration into existing applications. 1373653499919711458895 TSP 3.4 MB None None documents None 1373653499919711458895 /docs/en/data-sheet/MC06XSD200.pdf 3354266 /docs/en/data-sheet/MC06XSD200.pdf MC06XSD200 N N 2013-07-12 MC06XSD200, Dual 6.0 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC06XSD200.pdf /docs/en/data-sheet/MC06XSD200.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Dec 17, 2013 Data Sheet t520 Data Sheet Data Sheet Y N MC06XSD200, Dual 6.0 mOhm High Side Switch - Data Sheet 2 3.0 English The 10XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<10 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications. 1373653687056728839107 TSP 3.3 MB None None documents None 1373653687056728839107 /docs/en/data-sheet/MC10XSD200.pdf 3346367 /docs/en/data-sheet/MC10XSD200.pdf MC10XSD200 N N 2013-07-12 MC10XSD200, Dual 10 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC10XSD200.pdf /docs/en/data-sheet/MC10XSD200.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Dec 17, 2013 Data Sheet t520 Data Sheet Data Sheet Y N MC10XSD200, Dual 10 mOhm High Side Switch - Data Sheet 3 MC16XSD200FK 4.0 English The 16XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<16 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications. 1373653889148719907171 TSP 1.1 MB None None documents None 1373653889148719907171 /docs/en/data-sheet/MC16XSD200.pdf 1105263 /docs/en/data-sheet/MC16XSD200.pdf MC16XSD200 N N 2018-05-17 MC16XSD200, Dual 16 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC16XSD200.pdf /docs/en/data-sheet/MC16XSD200.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en May 17, 2018 Data Sheet t520 Data Sheet Data Sheet Y N MC16XSD200, Dual 16 mOhm High Side Switch - Data Sheet 4 2.0 English The 50XSD200 is part of a 24 V dual high-side switch product family with integrated control, and a high number of protective and diagnostic functions. 1415063707963687070866 TSP 1.8 MB None None documents None 1415063707963687070866 /docs/en/data-sheet/MC50XSD200.pdf 1836096 /docs/en/data-sheet/MC50XSD200.pdf MC50XSD200 N N 2014-11-11 MC50XSD200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC50XSD200.pdf /docs/en/data-sheet/MC50XSD200.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Jan 30, 2015 Data Sheet t520 Data Sheet Data Sheet Y N MC50XSD200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet 5 1.0 English The TWR-MC36XSDEVB is an easy-to-use tower peripheral module circuit board allowing the user to exercise functions for eXtremeSwitch product base on Tower System. 1417797403929715796401 TSP 4.1 MB None None documents Y None 1417797403929715796401 /docs/en/user-guide/KTTWRMC36XSDUG.pdf 4121052 /docs/en/user-guide/KTTWRMC36XSDUG.pdf KTTWRMC36XSDUG N N 2014-12-05 KTTWRMC36XSDUG, TWR-MC36XSDEVB Tower System Platform - User&#8217;s Guide /docs/en/user-guide/KTTWRMC36XSDUG.pdf /docs/en/user-guide/KTTWRMC36XSDUG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Dec 4, 2014 User Guide t792 User Guide User Guide Y N KTTWRMC36XSDUG, TWR-MC36XSDEVB Tower System Platform - User&#8217;s Guide false en_US 1 6 1.0 English This document provides guidance for programming with the 36 V eXtreme Switch component. 1455296612810723119629 TSP 232.8 KB None None documents Y None 1455296612810723119629 /docs/en/user-guide/PEXMC36XSDPUG.pdf 232755 /docs/en/user-guide/PEXMC36XSDPUG.pdf PEXMC36XSDPUG N N 2016-02-12 PEXMC36XSDPUG, 36V eXtreme Switch Programming Guide - User&#8217;s Guide /docs/en/user-guide/PEXMC36XSDPUG.pdf /docs/en/user-guide/PEXMC36XSDPUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Feb 8, 2016 User Guide t792 User Guide User Guide Y N PEXMC36XSDPUG, 36V eXtreme Switch Programming Guide - User&#8217;s Guide false en Supporting Information Supporting Information 1 7 1.02 English Tower<sup>&#174;</sup> Configuration Tool&#13;&#10;Long Description: Excel based configuration tool for the Tower System. Provides pinout information for Tower Elevator Primary and Secondary Connectors and tools for compatibility checking between existing Tower Modules and designing new Tower Modules. 1263574474076725856846 TSP 203.8 KB None None documents None 1263574474076725856846 /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip 203808 /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip TOWER_CONFIG_TOOL documents N 2016-10-31 Tower Configuration Tool /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip Supporting Information N 371282830530968666 2022-12-07 zip en Jan 15, 2010 371282830530968666 Supporting Information N Tower Configuration Tool false 0 TWR-MC36XSDEVB downloads en true 0 Y TSP Data Sheet 4 /docs/en/data-sheet/MC06XSD200.pdf 2013-07-12 1373653499919711458895 TSP 1 Dec 17, 2013 Data Sheet Data Sheet The 06XS4200 device is part of a 36 V dual high side switch product family with integrated control and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<6 mOhm) can control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface, allowing easy integration into existing applications. None /docs/en/data-sheet/MC06XSD200.pdf English 3354266 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC06XSD200.pdf MC06XSD200, Dual 6.0 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC06XSD200.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC06XSD200, Dual 6.0 mOhm High Side Switch - Data Sheet 3.4 MB MC06XSD200 N 1373653499919711458895 /docs/en/data-sheet/MC10XSD200.pdf 2013-07-12 1373653687056728839107 TSP 2 Dec 17, 2013 Data Sheet Data Sheet The 10XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<10 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications. None /docs/en/data-sheet/MC10XSD200.pdf English 3346367 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC10XSD200.pdf MC10XSD200, Dual 10 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC10XSD200.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC10XSD200, Dual 10 mOhm High Side Switch - Data Sheet 3.3 MB MC10XSD200 N 1373653687056728839107 /docs/en/data-sheet/MC16XSD200.pdf 2018-05-17 1373653889148719907171 TSP 3 May 17, 2018 Data Sheet Data Sheet The 16XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<16 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications. None /docs/en/data-sheet/MC16XSD200.pdf English 1105263 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC16XSD200.pdf MC16XSD200, Dual 16 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC16XSD200.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4.0 N N MC16XSD200, Dual 16 mOhm High Side Switch - Data Sheet MC16XSD200FK 1.1 MB MC16XSD200 N 1373653889148719907171 /docs/en/data-sheet/MC50XSD200.pdf 2014-11-11 1415063707963687070866 TSP 4 Jan 30, 2015 Data Sheet Data Sheet The 50XSD200 is part of a 24 V dual high-side switch product family with integrated control, and a high number of protective and diagnostic functions. None /docs/en/data-sheet/MC50XSD200.pdf English 1836096 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC50XSD200.pdf MC50XSD200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC50XSD200.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 2.0 N N MC50XSD200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet 1.8 MB MC50XSD200 N 1415063707963687070866 Supporting Information 1 /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip 2016-10-31 1263574474076725856846 TSP 7 Jan 15, 2010 Supporting Information Tower<sup>&#174;</sup> Configuration Tool&#13;&#10;Long Description: Excel based configuration tool for the Tower System. Provides pinout information for Tower Elevator Primary and Secondary Connectors and tools for compatibility checking between existing Tower Modules and designing new Tower Modules. None /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip English documents 203808 None 371282830530968666 2022-12-07 /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip Tower Configuration Tool /docs/en/supporting-information/Tower_Config_Tool_V2.0.zip documents 371282830530968666 Supporting Information N en None zip 1.02 N Tower Configuration Tool 203.8 KB TOWER_CONFIG_TOOL N 1263574474076725856846 User Guide 2 /docs/en/user-guide/KTTWRMC36XSDUG.pdf 2014-12-05 1417797403929715796401 TSP 5 Dec 4, 2014 User Guide User Guide The TWR-MC36XSDEVB is an easy-to-use tower peripheral module circuit board allowing the user to exercise functions for eXtremeSwitch product base on Tower System. Y None /docs/en/user-guide/KTTWRMC36XSDUG.pdf English 4121052 None User Guide 2023-06-19 N /docs/en/user-guide/KTTWRMC36XSDUG.pdf KTTWRMC36XSDUG, TWR-MC36XSDEVB Tower System Platform - User&#8217;s Guide /docs/en/user-guide/KTTWRMC36XSDUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N KTTWRMC36XSDUG, TWR-MC36XSDEVB Tower System Platform - User&#8217;s Guide 4.1 MB KTTWRMC36XSDUG N 1417797403929715796401 /docs/en/user-guide/PEXMC36XSDPUG.pdf 2016-02-12 1455296612810723119629 TSP 6 Feb 8, 2016 User Guide User Guide This document provides guidance for programming with the 36 V eXtreme Switch component. Y None /docs/en/user-guide/PEXMC36XSDPUG.pdf English 232755 None User Guide 2022-12-07 N /docs/en/user-guide/PEXMC36XSDPUG.pdf PEXMC36XSDPUG, 36V eXtreme Switch Programming Guide - User&#8217;s Guide /docs/en/user-guide/PEXMC36XSDPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1.0 N N PEXMC36XSDPUG, 36V eXtreme Switch Programming Guide - User&#8217;s Guide 232.8 KB PEXMC36XSDPUG N 1455296612810723119629 true Y Tools
