Evaluation Board - MC50XS4200, Dual High Side Switch

KIT50XS4200EKEVB Active

Roll over image to zoom in

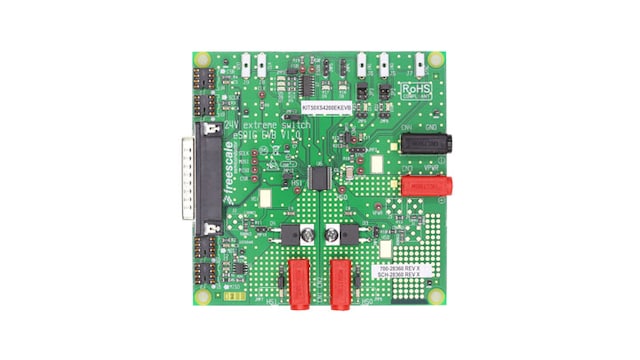

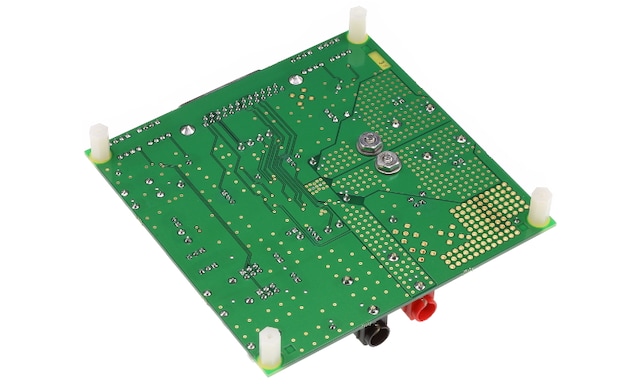

This eXtreme switch evaluation board demonstrates the capability of the MC50XS4200 as a 24 V dual high side switch product, that provides integrated control along with a large number of protective and diagnostic functions.

This product has been designed for truck, bus, and industrial applications. The low RDS(ON) channels (< 50 mOhm) control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI (serial peripheral interface), allowing easy integration into existing applications. Both channels can be controlled individually by external/internal clock-signals or by direct inputs. Using the internal clock allows fully autonomous device operation.

Product Details

Supported Devices

Power Management

High Side Switches

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

Power Management

  • Input voltage operation range from 6.0 to 58 V

User Components

  • Dual high side switches (each < 50 mOhm RDS(ON))

General Specifications

  • Programming, control, and diagnostics accomplished via the use of a 16-bit SPI interface
  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements
  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock

Buy Options

KIT50XS4200EKEVB-Image

Click to expand

  • KIT50XS4200EKEVB
    Active

  • Evaluation Kit - MC50XS4200, Dual 24 V, 50 mOhm High Side Switch.

    • KIT50XS4200EKEVB Hardware
    • Quick Reference Guide
  • For a quantity of 1
Order from distributors
