FRDMPKPT2000EVM
Active
Features
PT2000 Evaluation Board for Engine Management
Buy Options
FRDMPKPT2000EVM
Active
12NC: 935334277598
Details
- Min. Package Quantity: 1
- Min. Order Quantity: 1
Operating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
FRDMPKPT2000EVM(935334277598) | Not Available | No Information | Not Available | No Information | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
FRDMPKPT2000EVM (935334277598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) |
|---|---|---|
FRDMPKPT2000EVM (935334277598) | 847150 | EAR99 |
More about FRDMPKPT2000EVM

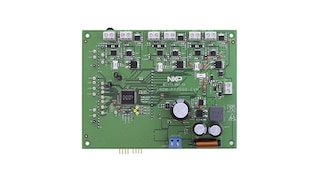

The FRDMPKPT2000EVM is an evaluation board with access to the PT2000 direct injection pre-driver circuit functionalities for engine management applications.
The FRDMPKPT2000EVM is compatible with the Kinetis® KL25Z Freedom board, using its SPIGen (Serial Peripheral Interface generator) software for FRDMPKPT2000EVM control and monitoring capabilities.
